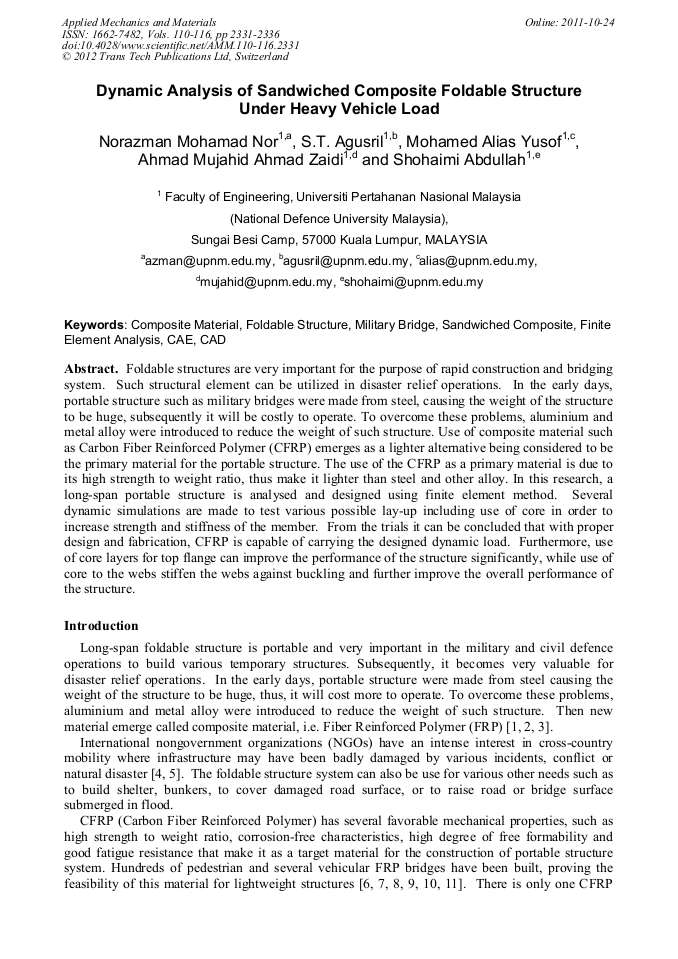

Dynamic Analysis of Sandwiched Composite Foldable Structure under Heavy Vehicle Load

Abstract:

Foldable structures are very important for the purpose of rapid construction and bridging system. Such structural element can be utilized in disaster relief operations. In the early days, portable structure such as military bridges were made from steel, causing the weight of the structure to be huge, subsequently it will be costly to operate. To overcome these problems, aluminium and metal alloy were introduced to reduce the weight of such structure. Use of composite material such as Carbon Fiber Reinforced Polymer (CFRP) emerges as a lighter alternative being considered to be the primary material for the portable structure. The use of the CFRP as a primary material is due to its high strength to weight ratio, thus make it lighter than steel and other alloy. In this research, a long-span portable structure is analysed and designed using finite element method. Several dynamic simulations are made to test various possible lay-up including use of core in order to increase strength and stiffness of the member. From the trials it can be concluded that with proper design and fabrication, CFRP is capable of carrying the designed dynamic load. Furthermore, use of core layers for top flange can improve the performance of the structure significantly, while use of core to the webs stiffen the webs against buckling and further improve the overall performance of the structure.

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 2331-2336
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.2331
• Online since: October 2011
• Authors: Norazman Mohamad Nor, S.T. Agusril, Mohamed Yusof Alias, Ahmad Mujahid Ahmad Zaidi, Abdullah Shohaimi
• Keywords: Composite Material, Computer Aided Design (CAD), Computer Aided Engineering (CAE), Finite Element Analysis (FEA), Foldable Structure, Military Bridge, Sandwiched Composite

References

[1] S. Alampalli, J. O'Connor, & A. Yannotti Fiber reinforced polymer composites for the superstructure of a short-span rural bridge,. Composite Structure, Vol. 58, pp.21-27, (2002).

DOI: 10.1016/s0263-8223(02)00044-2

[2] A. Z. Latif, & A. Hassan Finite Element Analysis and Experimental Tests on UTM Composite Bridge,. FKM, UTM Skudai, (2005).

[3] N.M. Nor, V. Devarase, M.A. Yahya, S. Sojipto, & S.K. Osmi Fiber Reinforced Polymer (FRP) Portable Bridge: Modeling and Simulation, , European Journal of Scientific Research, Vol. 44, No. 3, pp.437-448, (2010).

[4] R. G. Wight, M. A. Erki, and P. J. Heffernan Canadian federal interest in FRP for structures,. Struct. Eng. Int. (IABSE, Zurich, Switzerland), Vol. 12, No. 2, pp.99-101, (2002).

DOI: 10.2749/101686602777965450

[5] R. G. Wight, M. A. Erki, and P. J. Heffernan FRP for structures in support of construction engineers of the Canadian Forces,. Proc., Canada–Japan Workshop on New Applications of Advanced Composites. p.185–192, (2003).

[6] G. E. Johansen, R. Wilson, D. A. Pope, G. Goss, P. Ritchie, and J. Mellen Spanning Devils Pool with a prestressed cable/FRP tube structural system,. Proc., Advanced Composites Materials in Bridges and Structures, Canadian Society for Civil Engineering, Montreal. pp.435-444, (1992).

[7] G. E. Johansen, et al. Design and construction of two FRP pedestrian bridges in Haleakala National Park, Maui, Hawaii,. Proc., Advanced Composites Materials in Bridges and Structures, Canadian Society for Civil Engineering, Montreal. pp.975-982, (1996).

[8] T. Keller Overview of fiber-reinforced polymers in bridge construction,. Struct. Eng. Int. (IABSE, Zurich, Switzerland), Vol. 12, No. 2, pp.66-70, (2002).

[9] G. Sedlacek, H. Trumpf, and U. Castrischer Development of a light-weight emergency bridge,. Struct. Eng. Int. (IABSE, Zurich, Switzerland), Vol 14(4), pp.282-287, (2004).

DOI: 10.2749/101686604777963702

[10] A. Weaver Kolding Bridge: A technical landmark,. Reinforced Plastics. Vol. 41, No. 8, pp.30-33, (1997).

DOI: 10.1016/s0034-3617(97)88337-3

[11] R.G. Wight, M.A. Erki, C.T. Shyu, R. Tanovic, and P. J. Heffernan Development of FRP Short-Span Deployable Bridge—Experimental Results,. Journal of Bridge Engineering, © ASCE / Jul/Aug. pp.489-498, (2006).

DOI: 10.1061/(asce)1084-0702(2006)11:4(489)

[12] MSC. PATRAN user's guide, (2007).

[13] Agusril Simulation analysis of a foldable carbon fibre reinforced honeycomb sandwich composite bridge,. M. Sc Thesis, Faculty of Engineering, UPNM, (2010).

[14] Design and Analysis Group for Military Bridging and Gap-Crossing Equipment. Trilateral Design And Test Code For Military Bridging and Gap-Crossing Equipment,. Appendix A-2, January (2006).

DOI: 10.21236/ada476104

[15] K. Greg Composite design,. ABARIS Training Note: Nevada. (2008).
