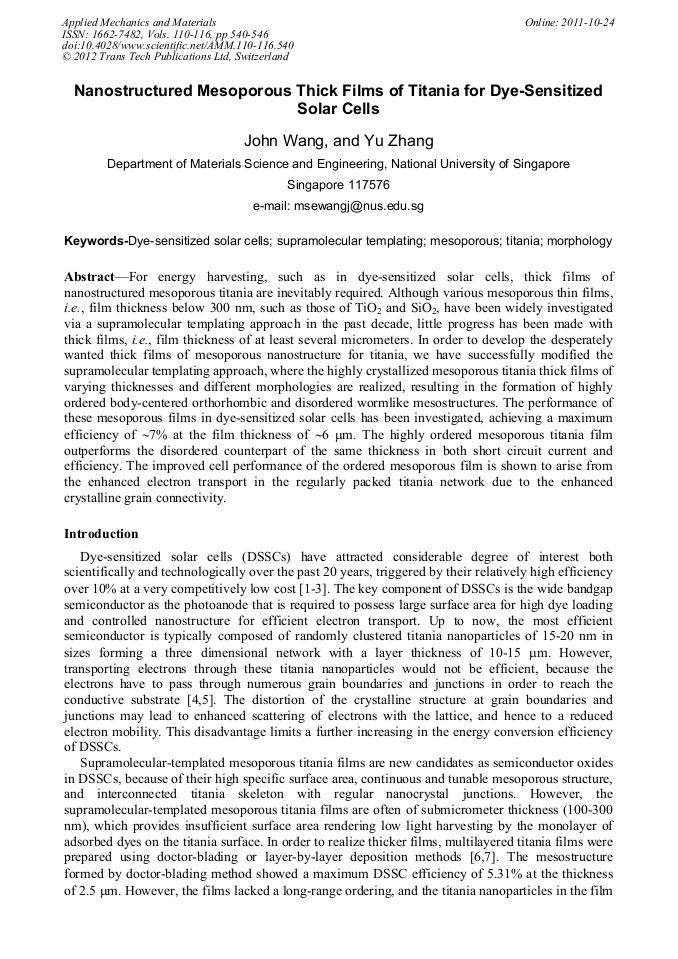

Nanostructured Mesoporous Thick Films of Titania for Dye-Sensitized Solar Cells

Abstract:

For energy harvesting, such as in dye-sensitized solar cells, thick films of nanostructured mesoporous titania are inevitably required. Although various mesoporous thin films, i.e., film thickness below 300 nm, such as those of TiO₂ and SiO₂, have been widely investigated via a supramolecular templating approach in the past decade, little progress has been made with thick films, i.e., film thickness of at least several micrometers. In order to develop the desperately wanted thick films of mesoporous nanostructure for titania, we have successfully modified the supramolecular templating approach, where the highly crystallized mesoporous titania thick films of varying thicknesses and different morphologies are realized, resulting in the formation of highly ordered body-centered orthorhombic and disordered wormlike mesostructures. The performance of these mesoporous films in dye-sensitized solar cells has been investigated, achieving a maximum efficiency of ~7% at the film thickness of ~6 μm. The highly ordered mesoporous titania film outperforms the disordered counterpart of the same thickness in both short circuit current and efficiency. The improved cell performance of the ordered mesoporous film is shown to arise from the enhanced electron transport in the regularly packed titania network due to the enhanced crystalline grain connectivity.

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 540-546
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.540
• Online since: October 2011
• Authors: John Wang, Yu Zhang
• Keywords: Dye Sensitized Solar Cell (DSSC), Mesoporous, Morpholoy, Supramolecular Templating, Titania

References

[1] B. O'Regan and M. Grätzel, A Low-Cost, High-Efficiency Solar Cell Based on Dye-Sensitized Colloidal TiO2 Films, Nature, vol. 353, Oct. 1991, pp.737-740, doi: 10. 1038/353737a0.

DOI: 10.1038/353737a0

[2] M. Grätzel, Photoelectrochemical Cells, Nature, vol. 414, Nov. 2001, pp.338-344, doi: 10. 1038/35104607.

[3] M. K. Nazeeruddin, P. Péchy, T. Renouard, S. M. Zakeeruddin, R. Humphry-Baker, P. Comte, P. Liska, L. Cevey, E. Costa, V. Shklover, L. Spiccia, G. B. Deacon, C. A. Bignozzi, and M. Grätzel, Engineering of Efficient Panchromatic Sensitizers for Nanocrystalline TiO2-Based Solar Cells, J. Am. Chem. Soc., vol. 123, Feb. 2001, pp.1613-1624.

DOI: 10.1021/ja003299u

[4] Y. J. Kim, Y. H. Lee, M. H. Lee, H. J. Kim, J. H. Pan, G. I. Lim, Y. S. Choi, K. Kim, N. Park, C. Lee, and W. I. Lee, Formation of Efficient Dye-Sensitized Solar Cells by Introduction an Interfacial Layer of Long-Range Ordered Mesoporous TiO2 Thin Film, Langmuir, vol. 24, Nov. 2008, pp.13225-13230.

DOI: 10.1021/la802340g

[5] M. Paulose, K. Shankar, O. K. Varghese, G. K. Mor, and C. A. Grimes, Application of Highly-Ordered TiO2 Nanotube-Arrays in Heterojunction Dye-Sensitized Solar Cells, J. Phys. D: Appl. Phys, vol. 39, Jun. 2006, pp.2498-2503.

DOI: 10.1088/0022-3727/39/12/005

[6] K. Hou, B. Tian, F. Li, Z. Bian, D. Zhao, and C. Huang, Highly Crystallized Mesoporous TiO2 Films and their Application in Dye Sensitized Solar Cells, J. Mater. Chem., vol. 15, 2005, pp.2414-2420, doi: 10. 1039/b417465h.

DOI: 10.1039/b417465h

[7] M. Zukalová, A. Zukal, L. Kavan, M. K. Nazeeruddin, P. Liska, and M. Grältzel, Organized Mesoporous TiO2 Films Exhiting Greatly Enhanced Performance in Dye-Sensitized Solar Cells, Nano Lett., vol. 5, Sept. 2005, pp.1789-1792.

DOI: 10.1021/nl051401l

[8] J. Procházka, L. Kavan, V. Shklover, M. Zukalová, O. Frank, M. Kalbáč, A. Zukal, H. Pelouchová, P. Janda, K. Mocek, M. Klementová, and D. Carbone, Multilayer Films from Templated TiO2 and Structural Changes during their Thermal Treatment, Chem. Mater., vol. 20, May 2008, pp.2985-2993.

DOI: 10.1021/cm071452e

[9] Y. Zhang, Z. B. Xie, and J. Wang, Highly Efficient Dye-Sensitized Solar Cells of Thick Mesoporous Titania Films Derived from Supramolecular Templating, Nanotech., vol. 20, Dec. 2009, article 505602, doi: 10. 1088/0957-4484/20/50/505602.

DOI: 10.1088/0957-4484/20/50/505602

[10] Y. Zhang, Z. B. Xie, and J. Wang, Supramolecular-Templated Thick Mesoporous Titania Films for Dye-Sensitized Solar Cells: Effect of Morphology on Performance, Appl. Mater. Interfaces, vol. 1, Dec. 2009, pp.2789-2795, doi: 10. 1021/am900529e.

DOI: 10.1021/am900529e

[11] E. J. W. Crossland, M. Nedelcu, C. Ducati, S. Ludwigs, M. A. Hillmyer, U. Steiner, and H. J. Snaith, Block Copolymer Morphologies in Dye-Sensitized Solar Cells: Probing the Photovoltaic Structure-Function Relation, Nano. Lett., vol. 9, Aug. 2009, pp.2813-2819.

DOI: 10.1021/nl800942c

[12] Q. Wang, S. Ito, M. Grätzel, F. Fabregat-Santiago, I. Mora-Seró, J. Bisquert, T. Bessho, and H. Imai, Characteristics of High Efficiency Dye-Sensitized Solar Cells, J. Phys. Chem. B, vol. 110, Dec. 2006, pp.25210-25221, doi: 10. 1021/jp064256o.

DOI: 10.1021/jp064256o

[13] M. J. Cass, F. L. Qiu, A. B. Walker, A. C. Fisher, and L. M. Peter, Influence of Grain Morphology on Electron Transport in Dye Sensitized Nanocrystalline Solar Cells, J. Phys. Chem. B, vol. 107, Jan. 2003, pp.113-119, doi: 10. 1021/jp0267981.

DOI: 10.1021/jp026798l
