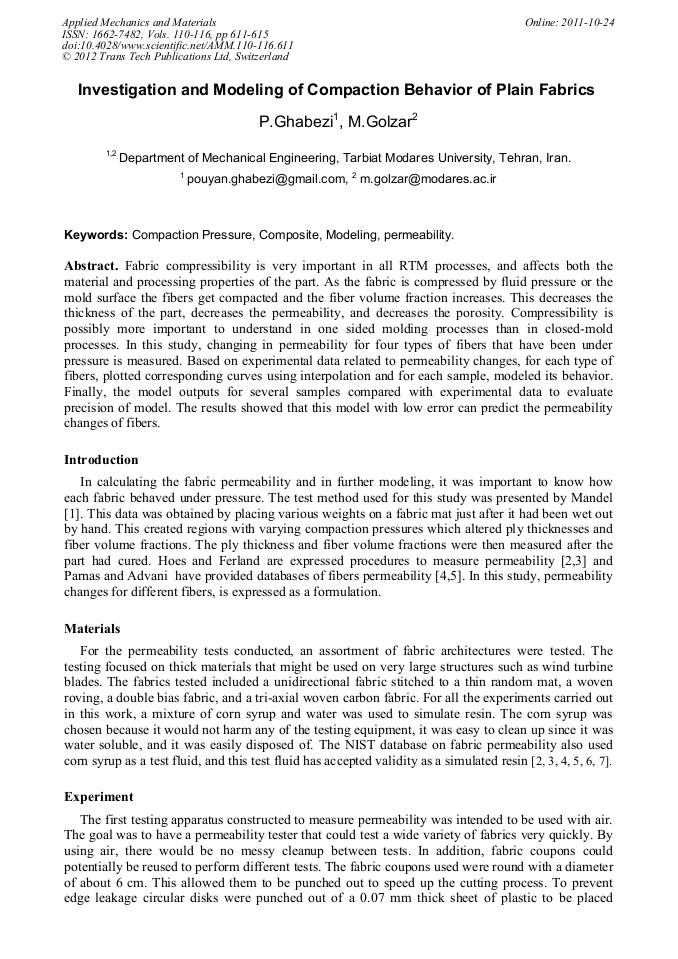

Investigation and Modeling of Compaction Behavior of Plain Fabrics

Abstract:

Fabric compressibility is very important in all RTM processes, and affects both the material and processing properties of the part. As the fabric is compressed by fluid pressure or the mold surface the fibers get compacted and the fiber volume fraction increases. This decreases the thickness of the part, decreases the permeability, and decreases the porosity. Compressibility is possibly more important to understand in one sided molding processes than in closed-mold processes. In this study, changing in permeability for four types of fibers that have been under pressure is measured. Based on experimental data related to permeability changes, for each type of fibers, plotted corresponding curves using interpolation and for each sample, modeled its behavior. Finally, the model outputs for several samples compared with experimental data to evaluate precision of model. The results showed that this model with low error can predict the permeability changes of fibers.

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 611-615
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.611
• Online since: October 2011
• Authors: P. Ghabezi, M. Golzar
• Keywords: Compaction Pressure, Composite, Modeling, Permeability

References

[1] J.F. Mandell, D.D. Samborsky, D.S. Cairns, Fatigue of Composite Materials and Substructures for Wind Turbine Blades, SAND 2002-0771, March (2002).

DOI: 10.2172/793410

[2] K. Hoes, D. Dineseu, H. Sol, M. Vanheule, R. Parnas, Y. Luo, I. Verpoest, New Set-up for Measurement of Permeability Properties of Fibrous Reinforcements‏ for RTM, Composites Part A 2002, Vol 33, No. 7, 959-969.

DOI: 10.1016/s1359-835x(02)00035-0

[3] P. Ferland, D. Guittard, F. Trochu, Concurrent Methods for Permeability‏ Measurement in Resin Transfer Molding, Polymer Composites, February 1996, Vol. 17, No. 1, 149-158.

DOI: 10.1002/pc.10600

[4] R. Parnas, K. Flynn, M. Dal-Favero, A Permeability Database for Composites‏ Manufacturing, Polymer Composites, October 1997, Vol. 18, No. 5, 623-633.

DOI: 10.1002/pc.10313

[5] R. Parnas, J.G. Howard, . T L. Luce, S. Advani, Permeability Characterization. Part 1: A Proposed Standard Reference Fabric for Permeability, Polymer Composites, December 1995, Vol. 16, No. 6, 429-445.

DOI: 10.1002/pc.750160602

[6] Y. Luo, I. Verpoest, K. Hoes, M. Vanheule, H. Sol, A. Cardon, Permeability Measurement of Textile Reinforcements with Several Test Fluids, Composites Part A, 2001, Vol. 32, No. 10, 1497-1504.

DOI: 10.1016/s1359-835x(01)00049-5

[7] J. A. Acheson, P. Simacek, S.G. Advani, The Implications of Fiber Compaction‏ and Saturation on Fully Coupled VARTM Simulation, Composites Part‏ A: Applied Science and Manufacturing, Feb 2004, Vol. 35, 159-169.

DOI: 10.1016/j.compositesa.2003.02.001

[8] Nina Kuentzer a, Pavel Simacek c, Suresh G. Advani a, Shawn Walsh‏ Correlation of void distribution to‏ VARTM manufacturing techniques‏, Composites: Part A 38 (2007) 802–813.

DOI: 10.1016/j.compositesa.2006.08.005

[9] R. Pan, Z. Liang, C. Zhang, B. Wang, Statistical Characterization of Fiber Permeability for Composite Manufacturing, Polymer Composites, December 2000, Vol. 21, No. 6, 996-1006.

DOI: 10.1002/pc.10253

[10] B.R. Gebart, Permeability of Unidirectional Reinforcements for RTM, Journal of Composite Materials, 1992, Vol. 26, No. 8, 1100-1133.

DOI: 10.1177/002199839202600802

[11] J.F. Delerue, S.V. Lomov, R.S. Parnas, I. Verpoest, and M. Wevers, Pore Network Modeling of Permeability for Textile Reinforcements, Polymer Composites, June 2003, Vol. 24, No. 3, 344-357.

DOI: 10.1002/pc.10034

[12] D Mastbergen, Simulation and Testing of Resin Infusion Manufacturing Processes for Large Composite Structures, " Master, s Thesis in Mechanical Engineering, Montana State University-Bozeman, August (2004).
