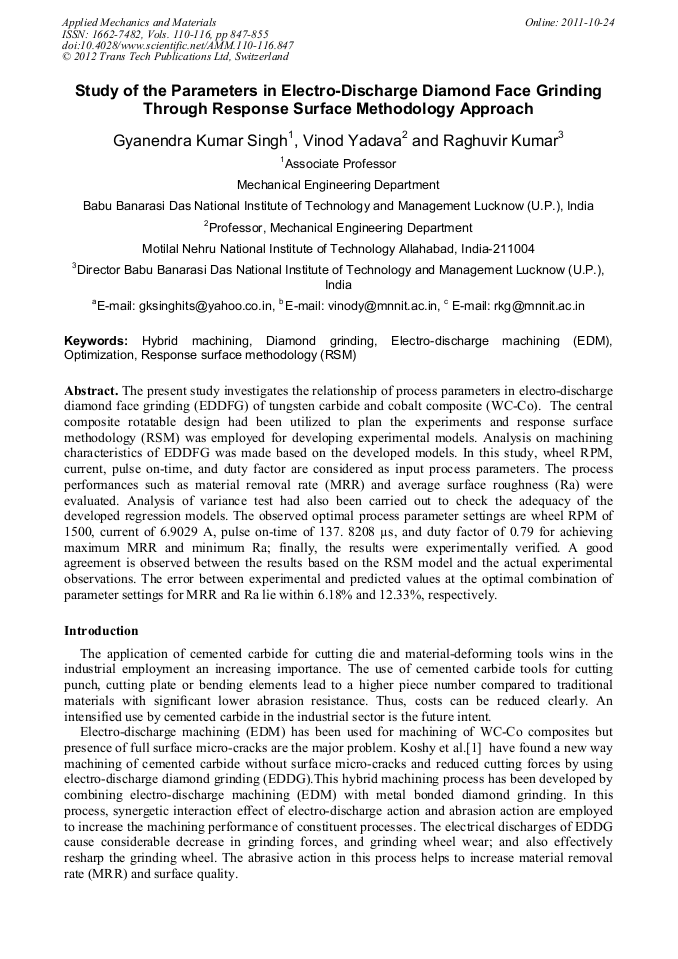

Study of the Parameters in Electro-Discharge Diamond Face Grinding through Response Surface Methodology Approach

Abstract:

The present study investigates the relationship of process parameters in electro-discharge diamond face grinding (EDDFG) of tungsten carbide and cobalt composite (WC-Co). The central composite rotatable design had been utilized to plan the experiments and response surface methodology (RSM) was employed for developing experimental models. Analysis on machining characteristics of EDDFG was made based on the developed models. In this study, wheel RPM, current, pulse on-time, and duty factor are considered as input process parameters. The process performances such as material removal rate (MRR) and average surface roughness (Ra) were evaluated. Analysis of variance test had also been carried out to check the adequacy of the developed regression models. The observed optimal process parameter settings are wheel RPM of 1500, current of 6.9029 A, pulse on-time of 137. 8208 µs, and duty factor of 0.79 for achieving maximum MRR and minimum Ra; finally, the results were experimentally verified. A good agreement is observed between the results based on the RSM model and the actual experimental observations. The error between experimental and predicted values at the optimal combination of parameter settings for MRR and Ra lie within 6.18% and 12.33%, respectively.

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 847-855
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.847
• Online since: October 2011
• Authors: Gyanendra Kumar Singh, Vinod Yadava, Raghuvir Kumar
• Keywords: Diamond Grinding, Electro Discharge Machining (EDM), Hybrid Machining, Optimization, Response Surface Methodology (RSM)

References

[1] P. Koshy, V.K. Jain and G.K. Lal, Grinding of cemented carbide with electrical spark assistance, Journal of Materials Processing Technology, Vol. 72, 1997, pp.61-68.

DOI: 10.1016/s0924-0136(97)00130-1

[2] R. A. Mahdavinejad and A. Mahdavinejad, ED machining of WC-Co, Journal of Materials Processing Technology, Vol. 162-163, 2005, p.637–643.

DOI: 10.1016/j.jmatprotec.2005.02.211

[3] W. Konig, D.F. Dauw, G. Levy and U. Panten, EDM- future steps towards the machining of ceramics, CIRP - Annals Manufacturing Technology, Vol. 37, 1988, pp.623-631.

DOI: 10.1016/s0007-8506(07)60759-8

[4] R. Karthikeyan, P.R. Lakshmi Narayanan and R.S. Naagarazan, Mathematical modelling for electric discharge machining of aluminium–silicon carbide particulate composites, Journal of Materials Processing Technology, Vol. 87, 1999, pp.59-63.

DOI: 10.1016/s0924-0136(98)00332-x

[5] S. S. Habib, Study of the parameters in electrical discharge machining through response surface methodology approach, Applied Mathematical Modelling, Vol. 33, 2009, pp.4397-4407.

DOI: 10.1016/j.apm.2009.03.021

[6] M. S. Sohani, V. N. Gaitonde, B. Siddeswarappa and A. S. Deshpande, Investigations into the effect of tool shapes with size factor consideration in sink electrical discharge machining (EDM) process, The International Journal of Advanced Manufacturing Technology, Vol. 45, 2009, pp.1131-1145.

DOI: 10.1007/s00170-009-2044-5

[7] C. Montgomery, Design and Analysis of Experiments, New York: John Wiley & Sons, (1991).

[8] W.G. Cochran, and G. M. Cox, Experimental designs, Bombay: Asia Publishing House, (1959).

[9] T. A. El-Taweel, Multi-response optimization of EDM with Al-Cu-Si-TiC P/M composite electrode, The International Journal of Advanced Manufacturing Technology, Vol. 44, 2009 pp.100-113.

DOI: 10.1007/s00170-008-1825-6
