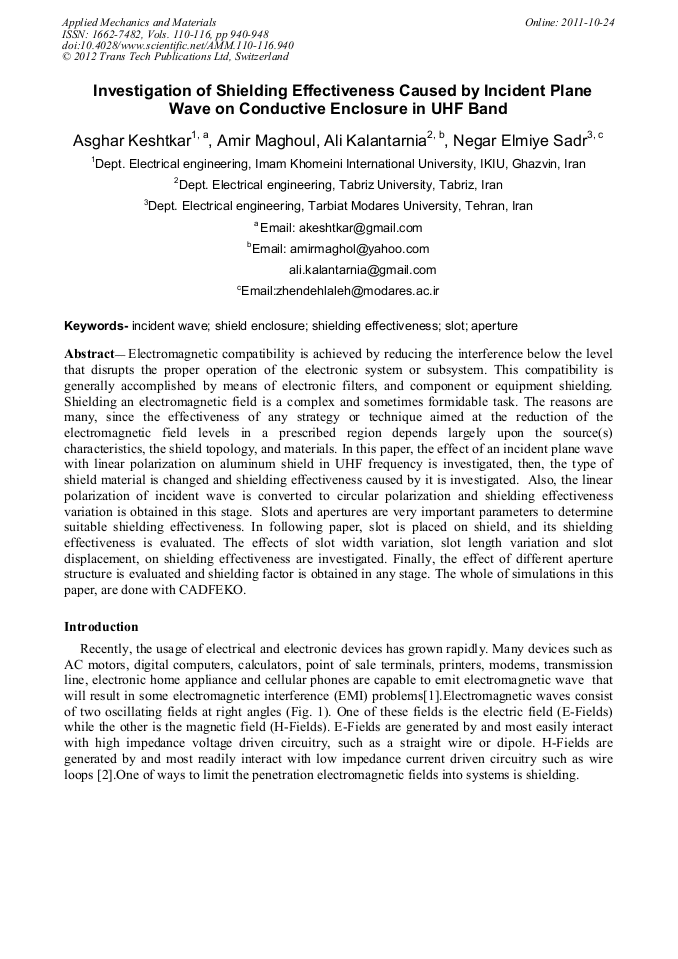

Investigation of Shielding Effectiveness Caused by Incident Plane Wave on Conductive Enclosure in UHF Band

Abstract:

Electromagnetic compatibility is achieved by reducing the interference below the level that disrupts the proper operation of the electronic system or subsystem. This compatibility is generally accomplished by means of electronic filters, and component or equipment shielding. Shielding an electromagnetic field is a complex and sometimes formidable task. The reasons are many, since the effectiveness of any strategy or technique aimed at the reduction of the electromagnetic field levels in a prescribed region depends largely upon the source (s) characteristics, the shield topology, and materials. In this paper, the effect of an incident plane wave with linear polarization on aluminum shield in UHF frequency is investigated, then, the type of shield material is changed and shielding effectiveness caused by it is investigated. Also, the linear polarization of incident wave is converted to circular polarization and shielding effectiveness variation is obtained in this stage. Slots and apertures are very important parameters to determine suitable shielding effectiveness. In following paper, slot is placed on shield, and its shielding effectiveness is evaluated. The effects of slot width variation, slot length variation and slot displacement, on shielding effectiveness are investigated. Finally, the effect of different aperture structure is evaluated and shielding factor is obtained in any stage. The whole of simulations in this paper, are done with CADFEKO.

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 940-948
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.940
• Online since: October 2011
• Authors: Asghar Keshtkar, Amir Maghoul, Ali Kalantarnia, Negar Elmiye Sadr
• Keywords: Aperture, Incident Wave, Shield Enclosure, Shielding Effectiveness, Slot

References

[1] A. Das, V.K. Kothari,A. Kothari and A. Kuma, Effect of varios parameters on electromagnetic shielding effectiveness of textile fabrics, Indian journal of fiber & textile research, vol. 34, 2009, pp.144-148.

[2] J. Cuntala, Simulation of electromagnetic shielding comsol multiphysics environment, the COMSOL Users Conference, Prague, (2006).

[3] T. Williams, EMC for Product Designers. Newnes, Great Britain, oxford library, (2001).

[4] A. Keshtkar, A. Maghoul, A. kalantarnia, H. hashempour Simulation of shielding effectiveness in low frequencies for conductive enclosure, Proc. IEEE Symp. International conferences on computer and electrical engineering (ICCEE), Dubai, vol., 2009, pp.372-377.

DOI: 10.1109/iccee.2009.250

[5] R.P. Clayton, Introduction to Electromagnetic Compatibility. Wiley-Interscience, New York, (2006).

[6] S. Celozzi, R. Araneo, G. Lovat, Electromagnetic shielding. Roma, Italy, La sapienza university, (2008).
