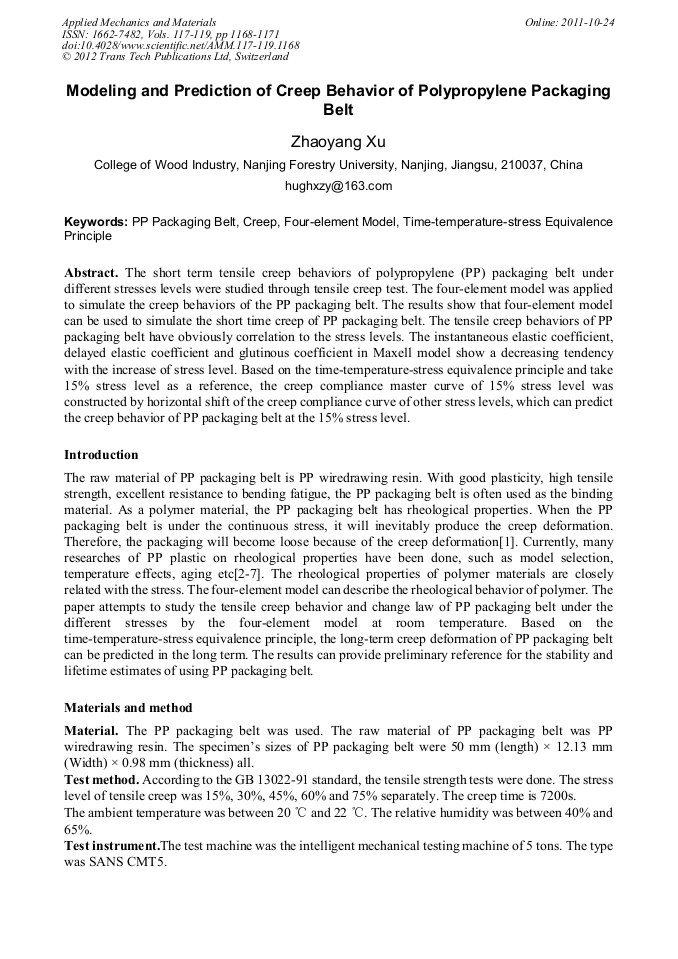

Modeling and Prediction of Creep Behavior of Polypropylene Packaging Belt

Abstract:

The short term tensile creep behaviors of polypropylene (PP) packaging belt under different stresses levels were studied through tensile creep test. The four-element model was applied to simulate the creep behaviors of the PP packaging belt. The results show that four-element model can be used to simulate the short time creep of PP packaging belt. The tensile creep behaviors of PP packaging belt have obviously correlation to the stress levels. The instantaneous elastic coefficient, delayed elastic coefficient and glutinous coefficient in Maxell model show a decreasing tendency with the increase of stress level. Based on the time-temperature-stress equivalence principle and take 15% stress level as a reference, the creep compliance master curve of 15% stress level was constructed by horizontal shift of the creep compliance curve of other stress levels, which can predict the creep behavior of PP packaging belt at the 15% stress level.

• Periodical: Applied Mechanics and Materials (Volumes 117-119)
• Pages: 1168-1171
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.117-119.1168
• Online since: October 2011
• Authors: Zhao Yang Xu
• Keywords: Creep, Four-Element Model, PP Packaging Belt, Time-Temperature-Stress Equivalence Principle

References

[1] Zhaoyang Xu, Dagang Li, Tingting Chen: Packaging Engineering. Vol. 30(9) (2009), p.85 (In Chinese)

[2] Xiaoming Niu, Xudong Yang, Xin Ding: Journal of Donghua University (Natural Science). Vol. 30(6), p.50 (In Chinese)

[3] Chuhong Wang, Wenbo Luo, Rongguo Zhao, et al: Natural Science Journal of Xiangtan University. Vol. 4 (2006), p.31 (In Chinese)

[4] Read B E, Tomlins P E: Polymer. Vol. 38(18) (1997), p.4617

[5] Read B E, Tomlins P E: Polymer. Vol. 39(2) (1997), p.355

[6] G.D. Dean, W. Broughton:Polymer Testing. Vol. 26(8) (2007), p.1068

[7] Jan Kolařík, Alessandro Pegoretti: Polymer. Vol. 47(1) (2006), p.346

[8] Zhixian Dong: Polymer materials science and engineering. Vol. 26(5) (2010), p.89 (In Chinese)

[9] G Jing, W Liu: Journal of Beijing Institute of Chemical Technology. Vol. 21(1) (194), p.35 (In Chinese)

[10] W B Luo, T Q Yang, Q L An: Acta Mechanica Solida Sinica. Vol. 22(3) (2001), p.219 (In Chinese)

[11] W B Luo, T Q Yang, Q L An: Polymer. Mater. Sci. & Eng. Vol. 21(3) (2005), p.11 (In Chinese)
