The Deformation Simulation of the Laser-MIG Hybrid Welding in Fillet-Welded Joint

Abstract:

The numerical simulation of the fillet-welded joint which is welded with the four kind of clamped methods by laser-MIG hybrid welding is researched by the SYSWELD software. The results of the numerical simulation are compared with the results of the experienced welding. The results of research show: The joint of the laser-MIG hybrid welding was simulated well by the SYSWELD software. The simulating result is deviated 10% from the result of the actual deformation. The laser-MIG hybrid welding deformation of the aluminum structure is least when the holding position is in the near weld zone and the clamps are unloaded near the room temperature.

You might also be interested in these eBooks

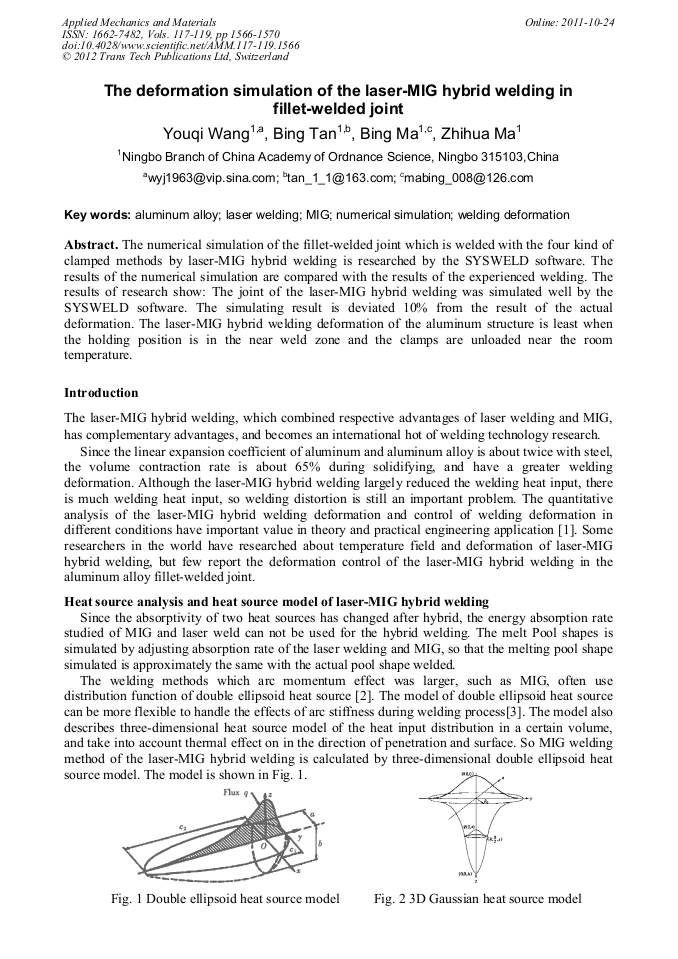

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 117-119)

Pages:

1566-1570

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.117-119.1566

Citation:

Cite this paper

Online since:

October 2011

Authors:

You Qi Wang, Bing Tan, Bing Ma, Zhi Hua Ma

Keywords:

5052 Aluminum Alloy, Laser Welding, MIG, Numerical Simulation, Welding Deformation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Chen Chu. Application of numerical analysis in the welding. Shanghai: Shang Hai Jiao Tong university press. 1985. 178.

Google Scholar

[2] Mo Chunli. Qian Bainian. Guo Xuming. Research development of welding heat source calculation mode. Transactions of the China welding institution. 2001, 22(3): 93－96.

Google Scholar

[3] Goldak J A．A new finite element model for welding heat sources．Metallurgical transaction. 1984. 15B(2)：299-305．

Google Scholar

[4] ESI group. SYSWELD 2008 Welding Simulation - User's Guide．France：2008.240－251.

Google Scholar
