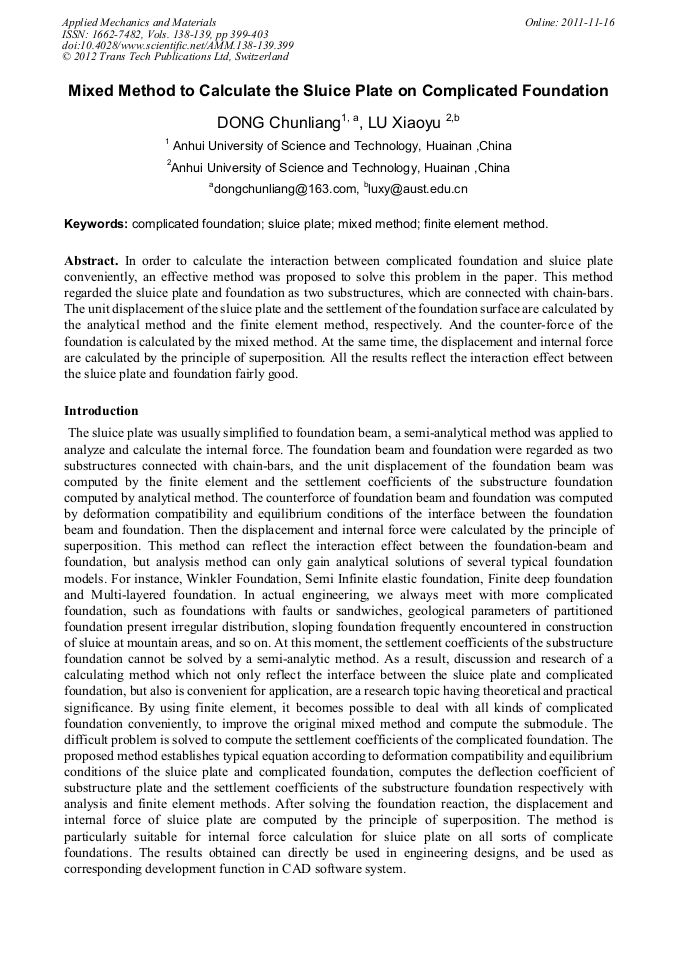

Mixed Method to Calculate the Sluice Plate on Complicated Foundation

Abstract:

In order to calculate the interaction between complicated foundation and sluice plate conveniently, an effective method was proposed to solve this problem in the paper. This method regarded the sluice plate and foundation as two substructures, which are connected with chain-bars. The unit displacement of the sluice plate and the settlement of the foundation surface are calculated by the analytical method and the finite element method, respectively. And the counter-force of the foundation is calculated by the mixed method. At the same time, the displacement and internal force are calculated by the principle of superposition. All the results reflect the interaction effect between the sluice plate and foundation fairly good.

• Periodical: Applied Mechanics and Materials (Volumes 138-139)
• Pages: 399-403
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.138-139.399
• Online since: November 2011
• Authors: Chun Liang Dong, Xiao Yu Lu
• Keywords: Complicated Foundation, Finite Element Method (FEM), Mixed Method, Sluice Plate

References

[1] Peng Xuanmao. The Semi-analytic Method of the Multi-cellular Pond Structure On the Soft Foundation. Special Structures, 18(2) : 45-48(2001).

[2] Gong Shuguang, Xie Guilan. Operation Commands and Charactering Programming of Ansys (China Machine Press, China 2004).

[3] Long Yuqiu, Bao shihua. Structure Mechanics. (Higher Education Press, China 2006).
