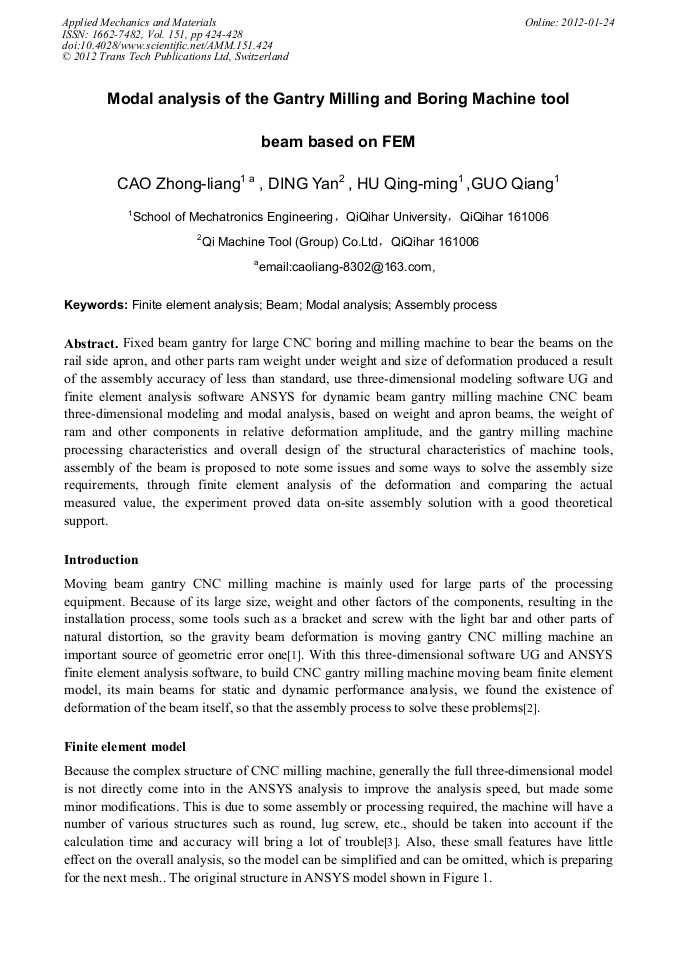

Modal Analysis of the Gantry Milling and Boring Machine Tool Beam Based on FEM

Abstract:

Fixed beam gantry for large CNC boring and milling machine to bear the beams on the rail side apron, and other parts ram weight under weight and size of deformation produced a result of the assembly accuracy of less than standard, use three-dimensional modeling software UG and finite element analysis software ANSYS for dynamic beam gantry milling machine CNC beam three-dimensional modeling and modal analysis, based on weight and apron beams, the weight of ram and other components in relative deformation amplitude, and the gantry milling machine processing characteristics and overall design of the structural characteristics of machine tools, assembly of the beam is proposed to note some issues and some ways to solve the assembly size requirements, through finite element analysis of the deformation and comparing the actual measured value, the experiment proved data on-site assembly solution with a good theoretical support.

• Periodical: Applied Mechanics and Materials (Volume 151)
• Pages: 424-428
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.151.424
• Online since: January 2012
• Authors: Zhong Liang Cao, Yan Ding, Qing Ming Hu, Qiang Guo
• Keywords: Assembly Process, Beam, Finite Element Analysis (FEA), Modal Analysis

References

[1] ZHU Bo Fang, Water and Power Press , BeiJing, (1979).

[2] XIE Li Ming, LI Da Ming, Modular Machine Tool & Automatic Manufacturing Technique, 2008 (9)37~39.

[3] ZHANG Jian Run, LU Xi, Modular Machine Tool & Automatic Manufacturing Technique, 2004 (16)1949~(1953).

[4] LUO Chuan Li, LI Duan Neng, Mechanical and Electrical Engineering, 2006 (35)45~47.

[5] ZHANG Bai Peng, ZHANG Nian Song, Tsinghua University (Natural Science), 2006 (2)191~193.

[6] XU Yan Shen, ZHANG Xue Ling, Journal of Southwest Jiaotong University, 2003 (10)517~520.
