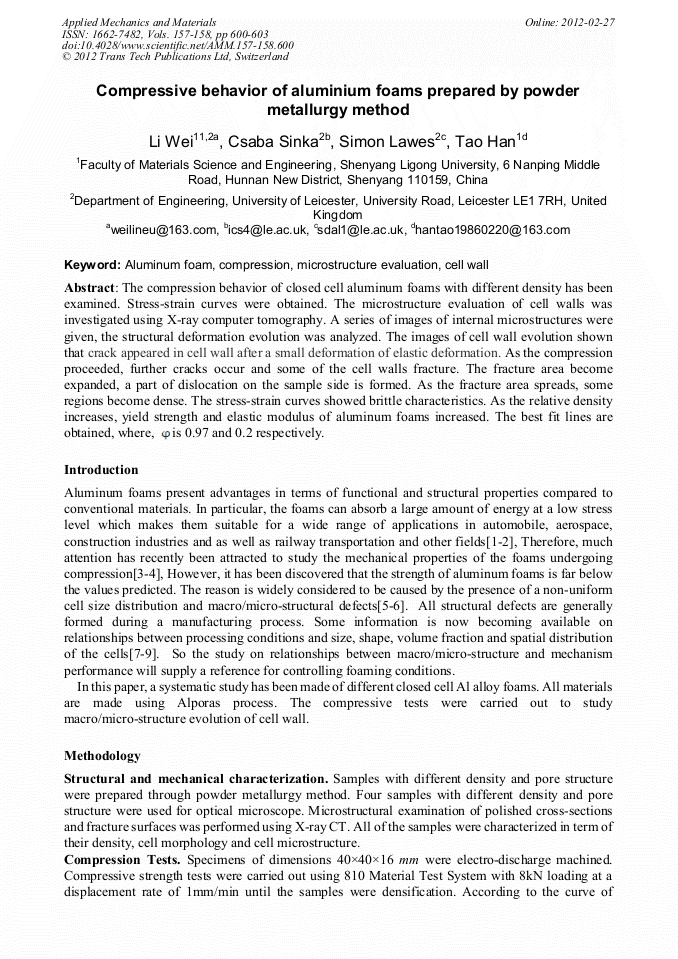

Compressive Behavior of Aluminium Foams Prepared by Powder Metallurgy Method

Abstract:

The compression behavior of closed cell aluminum foams with different density has been examined. Stress-strain curves were obtained. The microstructure evaluation of cell walls was investigated using X-ray computer tomography. A series of images of internal microstructures were given, the structural deformation evolution was analyzed. The images of cell wall evolution shown that crack appeared in cell wall after a small deformation of elastic deformation. As the compression proceeded, further cracks occur and some of the cell walls fracture. The fracture area become expanded, a part of dislocation on the sample side is formed. As the fracture area spreads, some regions become dense. The stress-strain curves showed brittle characteristics. As the relative density increases, yield strength and elastic modulus of aluminum foams increased. The best fit lines are obtained, where, is 0.97 and 0.2 respectively.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 157-158)

Pages:

600-603

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.157-158.600

Citation:

Cite this paper

Online since:

February 2012

Authors:

Li Wei, Csaba Sinka, Simon Lawes, Tao Han

Keywords:

Aluminum Foam, Cell Wall, Compression, Microstructure Evaluation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J. Banhart, Manufacture, characterization and application of cellular mtals and metallic foams. Prog. Mater. Sci., 2001, Vol. 46, p.559.

Google Scholar

[2] I. Jeon, K. Katou, T. Sonoda, Cell wall mechanical properties of closes-cell Al foam. Mechanics of Materials, 2009, Vol. 41, p.60.

DOI: 10.1016/j.mechmat.2008.08.002

Google Scholar

[3] D. Ruan, G. Lu, F. L. Chen, E. Siores, Compressive behavior of aluminum foams at low and medium strain rates. Composite Structures, 2002, Vol. 57, p.331.

DOI: 10.1016/s0263-8223(02)00100-9

Google Scholar

[4] A. Rack, H. M. Helwig, A. Butow, J. Banhart. Early pore formation in aluminum foams studied by synchrotron-based microtomography and 3-D image analysis. Acta Mater, 2009, Vol. 57, p.4809.

DOI: 10.1016/j.actamat.2009.06.045

Google Scholar

[5] I. Jeon, T. Asahina. The effect of structural defects on the compressive behavior of closed-cell Al foam. Acta Mater, 2005, Vol. 53, p.3415.

DOI: 10.1016/j.actamat.2005.04.010

Google Scholar

[6] P. Babin, G. Della, H. Chiron, J. Hoszowska. Fast X-ray tomography analysis of bubble growth and foam setting during breadmaking. J. of Cereal Science. 2006, Vol. 43, p.393.

DOI: 10.1016/j.jcs.2005.12.002

Google Scholar

[7] B. Matijasevic-Lux, J. Banhart, S. Fiechter, O. Gorke, N. Wanderka. Modification of titanium hydride for improved aluminum foam manufacture. 2006, Vol. 54, p.1887.

DOI: 10.1016/j.actamat.2005.12.012

Google Scholar

[8] R. Surace, L.A. De Filippis, A. D. Ludovico, G. Boghetich, Influence of processing parameters on aluminum foam produced by space holder technique. Materials and Design. 2009, Vol. 30, p.1878.

DOI: 10.1016/j.matdes.2008.09.027

Google Scholar

[9] L. J. Gibson, M. F. Ashby, Cellular Solides: Structure and Properties. Oxford: Pergamon press, 9197: 113.

Google Scholar

[10] K. Y. G. McCullough, N. A. Fleck, M. A. Ashby, Uniaxial stress-strain behavior of aluminum foam. Acta Mater, 1999, Vol. 47, p.2323.

DOI: 10.1016/s1359-6454(99)00128-7

Google Scholar
