Static Edgewise Crush Property and Mechanical Model of Apposition Combined C-Flute Corrugated Paperboard

Abstract:

C-flute corrugated paperboards with length of 100mm were combined side by side with/without water soluble glue to study the static edgewise crush property. Combinations with different height (20, 25, 40, 60, 80, and 100mm), different number of layers, with or without glue were tested to obtain mechanical property and buffering property data of C-flute corrugated paperboard. The result indicates that the deformation of paperboard combinations can be divided into three stages as elastic-like deform stage, yield-like stage and high plastic deformation stage. The mechanical model of the elastic-like deform stage was built according to numerical fitting, which shows that the relationship between the stress and the quadratic function of strain is exponential.

You might also be interested in these eBooks

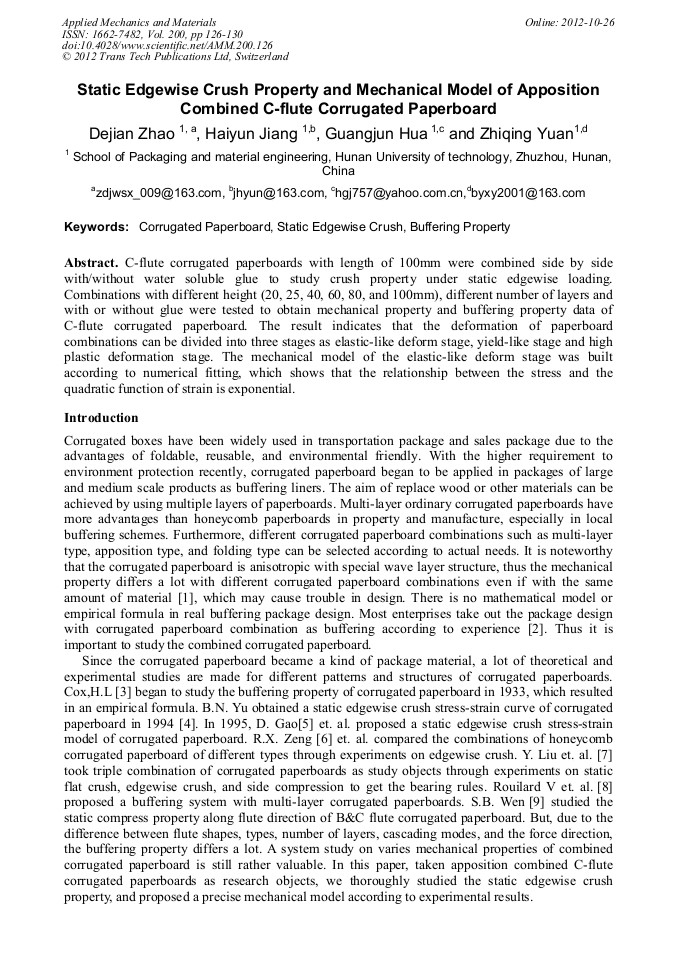

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 200)

Pages:

126-130

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.200.126

Citation:

Cite this paper

Online since:

October 2012

Authors:

De Jian Zhao, Hai Yun Jiang, Guang Jun Hua, Zhi Qing Yuan

Keywords:

Buffering Property, Corrugated Paperboard, Static Edgewise Crush

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] D.M. Wang, Z.W. Wang: Materials Review, Vol. 27 (2007) No.6, pp.43-46. (In Chinese)

Google Scholar

[2] D.M. Wang: Packaging Engineering, Vol. 28 (2007) No.12, pp.71-73. (In Chinese)

Google Scholar

[3] Cox,H.L: British Air Ministry,Air Research Committee report and memoranda, (1993) No.1554.

Google Scholar

[4] B.N. Yu, et.al: Journal of Tianjin University of Commerce, Vol. 9 (1989) No.2, pp.13-19. (In Chinese)

Google Scholar

[5] D. Gao, D.C. Xi and Z.L. Wang: Packaging Engineering, Vol. 16 (1995) No. 4, pp.6-8. (In Chinese)

Google Scholar

[6] R.X. Zeng, H.J. He and W.R. Feng, et.al: Packaging Engineering, Vol. 16 (1995) No.5, pp.13-18. (In Chinese)

Google Scholar

[7] Y. Liu, Z.L. Wang, D. Gao, et.al: Packaging Engineering, Vol. 25 (2004) No.5, pp.162-164. (In Chinese)

Google Scholar

[8] Rouilard V,Sek M A: Strain, Vol. 43 (2007) No.4, pp.345-347.

Google Scholar

[9] S.B. Wen: Packaging Engineering, Vol. 32 (2011) No.9, pp.30-32. (In Chinese)

Google Scholar
