The Design and Analysis of Closed-Coupled Exhaust Manifold

Abstract:

The layout of closed-couple catalyst converter in internal combustion engine exhaust system is one of important way to reduce vehicle emission. CFD method based on finite volume method is adopted to numerical simulate flow distribution in the entrance of closed-coupled catalytic converter and applying business software of FLUENT to clarity the flow uniformity of inlet to ensure catalytic converter work efficiently and meet regulations. The flow field uniformity of entrance were studied and analyzed. Research finds that the shape of manifold has effect on dispersion of velocity in entrance and dispersion of velocity has a relatively strong correlation with pulsation flow. The flow reverse in junction deflect the air flow that flow into the entrance of closed-couple catalyst converter. Calculation results indicate that the uneven rate coefficient is 0.266 and volatility is 0.515 in the entrance of closed-couple catalyst.

You might also be interested in these eBooks

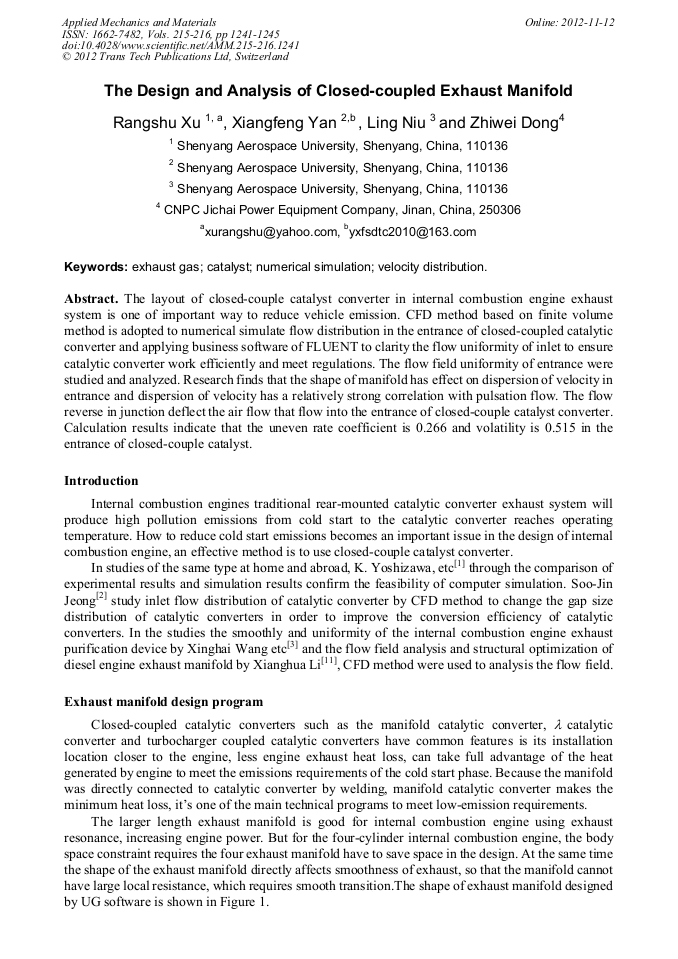

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 215-216)

Pages:

1241-1245

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.215-216.1241

Citation:

Cite this paper

Online since:

November 2012

Authors:

Rang Shu Xu, Xiang Feng Yan, Ling Niu, Zhi Wei Dong

Keywords:

Catalyst, Exhaust Gas, Numerical Simulation, Velocity Distribution

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] K. Yoshizawa, K. Mori, K. Arai. Numerical Analysis of Unsteady Exhaust Gas Flow and Its Application for Lambda Control K. YoshizawaK. Mori K. Arai A. Iiyama[J].

DOI: 10.1115/1.1473149

Google Scholar

[2] Soo-Jin Jeong a, Woo-Seung Kim. A Study on The Optimal Monolith Combination for Improving Flow Uniformity and Warm-up Performance of An Auto-catalyst [J]Yoshikawa H. Design philosophy-the state of the art.Annals of the CIRP, 1989, 38(2): 579-586.

DOI: 10.1016/s0007-8506(07)61126-3

Google Scholar

[3] Xinghai Wang, Zhen Ma, Yu Li. J.XUT - 080110 - The Research on Flow Field Uniformity of Internal Combustion Engine Exhaust Device [J] .(In Chinese)

Google Scholar

[4] Xianghua LI, Xiaojiao Zhang. Analysis of Diesel Engine Exhaust Manifold Flow Field and Structural Optimization [J]. (In Chinese)

Google Scholar
