The Modeling of Rubber Sealing Ring of Fluid Dynamic Pressure and Finite Element Analysis about Stress Based on SolidWorks and ANSYS

Abstract:

Hydrodynamic seal ring is based on the hydrodynamic effect of rotary shaft seal, Kalsi sealing ring is the typical type of products, and the design of sealing lip adopts unique waveform structure. Based on geometry analysis of the sealing ring, the 3D model of the ring was established by using SolidWorks software, and then the model was introduced into finite element software ANSYS, which was used to analyse stress for the Kalsi of rubber sealing ring. Through the analysis of the stress of rubber ring, the position of the maximum stress value of the rubber seal in hydrodynamic pressure was wave crest (valley) in the edge of the wave side. When the pressure of seal was 10MPa, the maximum value of stress of rubber sealing was up to 6.54MPa.

You might also be interested in these eBooks

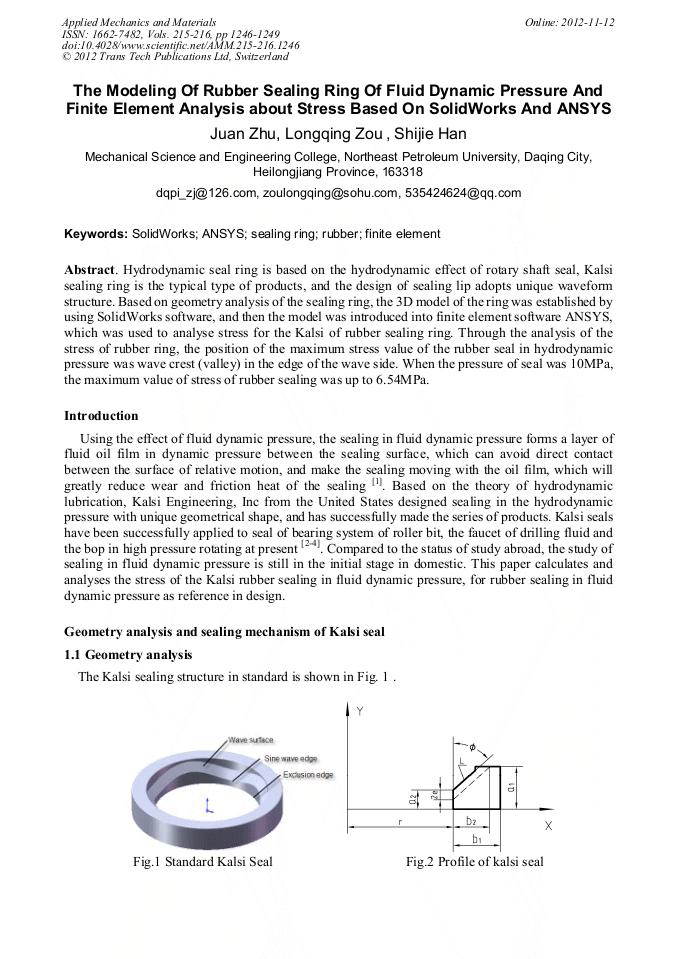

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 215-216)

Pages:

1246-1249

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.215-216.1246

Citation:

Cite this paper

Online since:

November 2012

Authors:

Juan Zhu, Long Qing Zou, Shi Jie Han

Keywords:

ANSYS, Finite Element, Rubber, Sealing Ring, SolidWorks

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] CHEN Jiaqing,ZHANG Baosheng,ZHAO Yanling. Research into the Sealing Characteristics of Hydrodynamic Radial Rubber Seal. Lubrication Engineering[J],2004,4:1~4,10.

Google Scholar

[2] J.W. Langford, M.S. Kalsi. Filed Performance of a Hydrodynamically Lubricated Bearing Seal for Rock Bits[J].SPE Drilling Engineering, March 1992:25-31.

DOI: 10.2118/19911-pa

Google Scholar

[3] Kalsi M S, Conroy W T, Dietle L L, Gobeli J D. A novel high-pressure rotary shaft seal facilitates innovations in drilling and production equipment[C]. SPE/IADC 37627, 4-6 March1997.22~31.

DOI: 10.2118/37627-ms

Google Scholar

[4] Kalsi M S. Development of a new high seal for abrasive environments[C]. The 12th international conference on fluid sealing, Brighton, UK: 10-12, 1989.32~41.

Google Scholar

[5] Kalsi Engineering Inc. Kalsi Seals Handbook. 2001.

Google Scholar

[6] ZOU Longqing,LENG Jiancheng,ZHANG Lei.Kalsi Sealing And Its Application in Petroleum Machinery. Lubrication Engineering[J],2005,11(6):162~163,169.

Google Scholar

[7] ZOU Longqing,FU Hailong,PENG Min. Research on the Kalsi Type Sealing Structure And Sealing Contact Pressure [J]. Lubrication Engineering,2006(6): 121~123.

Google Scholar
