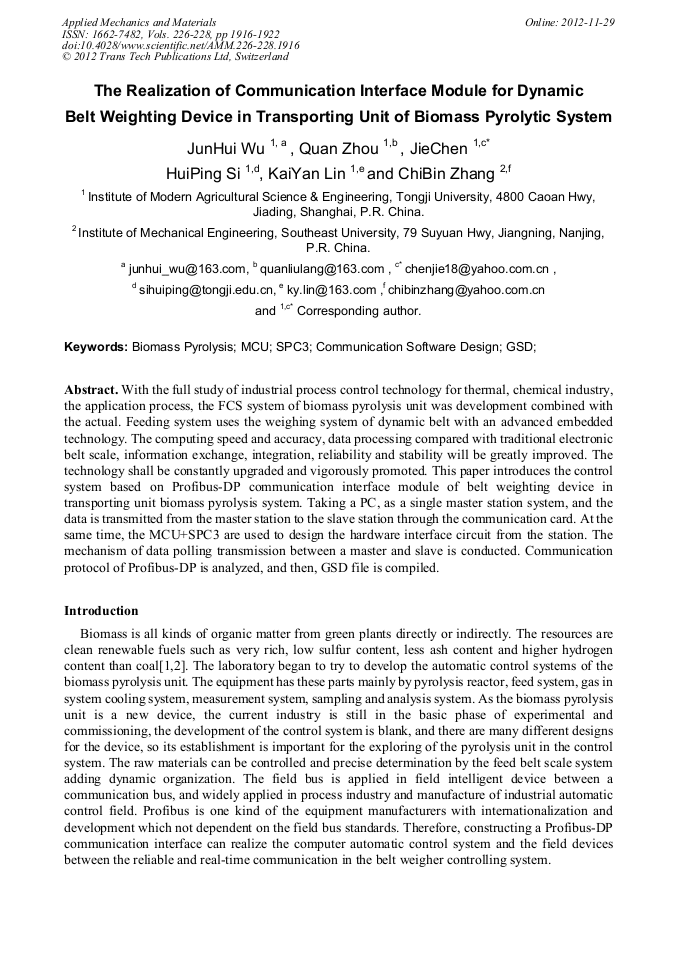

The Realization of Communication Interface Module for Dynamic Belt Weighting Device in Transporting Unit of Biomass Pyrolytic System

Abstract:

With the full study of industrial process control technology for thermal, chemical industry, the application process, the FCS system of biomass pyrolysis unit was development combined with the actual. Feeding system uses the weighing system of dynamic belt with an advanced embedded technology. The computing speed and accuracy, data processing compared with traditional electronic belt scale, information exchange, integration, reliability and stability will be greatly improved. The technology shall be constantly upgraded and vigorously promoted. This paper introduces the control system based on Profibus-DP communication interface module of belt weighting device in transporting unit biomass pyrolysis system. Taking a PC, as a single master station system, and the data is transmitted from the master station to the slave station through the communication card. At the same time, the MCU+SPC3 are used to design the hardware interface circuit from the station. The mechanism of data polling transmission between a master and slave is conducted. Communication protocol of Profibus-DP is analyzed, and then, GSD file is compiled.

• Periodical: Applied Mechanics and Materials (Volumes 226-228)
• Pages: 1916-1922
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.226-228.1916
• Online since: November 2012
• Authors: Jun Hui Wu, Quan Zhou, Jie Chen, Hui Ping Si, Kai Yan Lin, Chi Bin Zhang
• Keywords: Biomass Pyrolysis, Communication Software Design, GSD, Micro Controller Unit (MCU), SPC3

References

[1] Zhu Xifen, Zheng Jilu, Guo Qingxiang, Zhu Qingshi. Property, Up-grading and Utilization of Bio-oil from Biomass[J]. Engineering Science, (2005), 7(9): pp.84-87.

[2] L I Jun2feng, HU Run2qing. Sustainable biomass production for energy in China[J]. Biomass and Bioenergy, (2003) ( 25 ): pp.483-499.

DOI: 10.1016/s0961-9534(03)00086-2

[3] Li Zhengjun. The fieldbus technology and its application [M].Beijing: Mechanical Industry Publishing House, 2005.

[4] Song zhenhuan. The application of Profibus field bus in tobacco production line of silk[D]. Baoding: North China Electric Power University,(2008)

[5] Angel Cuenca, Julián Salt, Vicente Casanova and Ricardo Pizá. An approach based on an adaptive multi-rate smith predictor and gain scheduling for a networked control system: Implementation over Profibus-DP[J]. International Journal of Control, Automation and Systems. 2010,8(2):473-481

DOI: 10.1007/s12555-010-0237-1

[6] Lei Wei, Zhang Xiaobing, etc. Electromagnetic field theory and its application[M]. Nanjing: Southeast university press,2005.

[7] Rodolfo E. Haber, Michael Schmittdiel, Angel Alique, Andrés Bustillo and Ramón Galán. Networked Control Based on Fuzzy Logic. An Application to a High-Performance Milling Process[M]. Lecture Notes in Computer Science. 2007, 4507:391-398.

DOI: 10.1007/978-3-540-73007-1_48
