Spot Weld Strength Determination Using the Wedge Test: In Situ Observations and Coupled Simulations

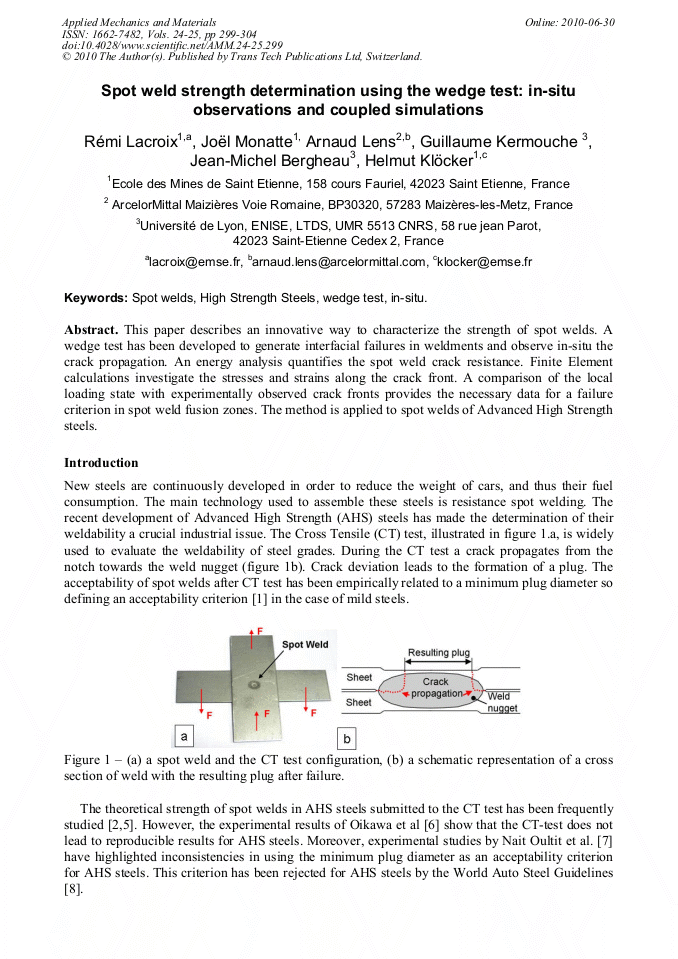

Article Preview

Abstract:

This paper describes an innovative way to characterize the strength of spot welds. A wedge test has been developed to generate interfacial failures in weldments and observe in-situ the crack propagation. An energy analysis quantifies the spot weld crack resistance. Finite Element calculations investigate the stresses and strains along the crack front. A comparison of the local loading state with experimentally observed crack fronts provides the necessary data for a failure criterion in spot weld fusion zones. The method is applied to spot welds of Advanced High Strength steels.

By email View Pdf
You have full access to the following eBook
Advances in Experimental Mechanics VII Read eBook

Info:

Periodical:

Applied Mechanics and Materials (Volumes 24-25)

Pages:

299-304

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.24-25.299

Citation:

Cite this paper

Online since:

June 2010

Authors:

Rémi Lacroix, Joël Monatte, Arnaud Lens, Guillaume Kermouche, J.M. Bergheau, Helmut Klocker

Keywords:

High Strength Steel (HSS), In Situ, Spot Weld, Wedge Test

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

References

[1] NF EN ISO 18278-2, Resistance welding - Weldability.

Google Scholar

[2] H Lee, J Choi, Mechanics of Materials 37, 19-32, (2005).

Google Scholar

[3] DJ Radakovic, M Tumuluru, Welding Journal 87, 96s-104-s, (2008).

Google Scholar

[4] MN Cavalli et al., Fatigue Fract Engng Mater Struct 28, Issue: 10, 861-874, Oct. (2005).

Google Scholar

[5] S Dancette et al., New Developments on Metall and Apps of HS steels Buenos Aires (2008).

Google Scholar

[6] Oikawa H. et al., Nippon Steel Technical Report No. 95 January (2007).

Google Scholar

[7] B Naït Oultit, A Lens, H Klöcker, SMW Conference XIII, AWS Detroit Section, (2008).

Google Scholar

[8] AHSS Application Guidelines - Version 3, World Steel Association - September (2006).

Google Scholar

[9] J Cognard, J Adhesion 22, 97-108, (1987).

Google Scholar

[10] JP Sargent, Int J Adhes Adhes 25, 247-256, (2005).

Google Scholar

[11] NR Philips, MY He, AG Evans, Acta Materiala 56, 4593-4600, (2008).

Google Scholar

[12] MF Kanninen, Int J Fracture 9, No 1, 83-92, (1973).

Google Scholar

[13] ABAQUS, Hibbitt, Karlsson and Sorensen, (2000).

Google Scholar

[14] R Lacroix, A Lens, JM Bergheau, G Kermouche, H Klöcker, CFM Conference XIX, (2009).

Google Scholar
