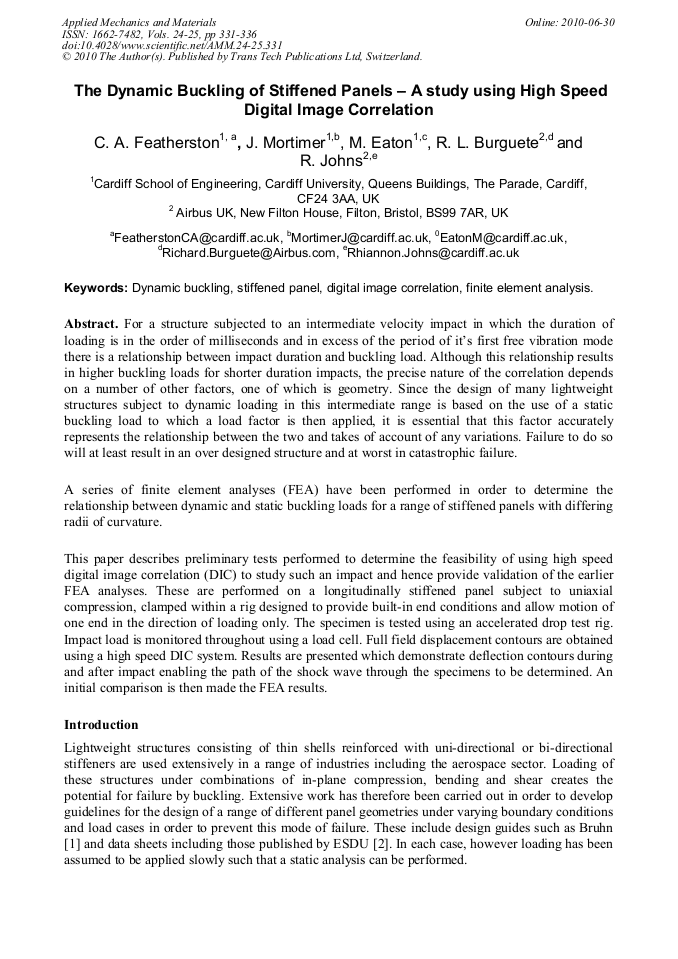

The Dynamic Buckling of Stiffened Panels –A Study Using High Speed Digital Image Correlation

Abstract:

For a structure subjected to an intermediate velocity impact in which the duration of loading is in the order of milliseconds and in excess of the period of it’s first free vibration mode there is a relationship between impact duration and buckling load. Although this relationship results in higher buckling loads for shorter duration impacts, the precise nature of the correlation depends on a number of other factors, one of which is geometry. Since the design of many lightweight structures subject to dynamic loading in this intermediate range is based on the use of a static buckling load to which a load factor is then applied, it is essential that this factor accurately represents the relationship between the two and takes of account of any variations. Failure to do so will at least result in an over designed structure and at worst in catastrophic failure. A series of finite element analyses (FEA) have been performed in order to determine the relationship between dynamic and static buckling loads for a range of stiffened panels with differing radii of curvature. This paper describes preliminary tests performed to determine the feasibility of using high speed digital image correlation (DIC) to study such an impact and hence provide validation of the earlier FEA analyses. These are performed on a longitudinally stiffened panel subject to uniaxial compression, clamped within a rig designed to provide built-in end conditions and allow motion of one end in the direction of loading only. The specimen is tested using an accelerated drop test rig. Impact load is monitored throughout using a load cell. Full field displacement contours are obtained using a high speed DIC system. Results are presented which demonstrate deflection contours during and after impact enabling the path of the shock wave through the specimens to be determined. An initial comparison is then made the FEA results.

• Periodical: Applied Mechanics and Materials (Volumes 24-25)
• Pages: 331-336
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.24-25.331
• Online since: June 2010
• Authors: C.A. Featherston, J. Mortimer, Mark J. Eaton, Richard L. Burguete, Rhiannon Johns
• Keywords: Digital Image Correlation (DIC), Dynamic Buckling, Finite Element Analysis (FEA), Stiffened Panel

References

[1] E.F. Bruhn: Analysis and design of flight vehicle structures. Jacobs Publishing Inc. (1973).

[2] Engineering Sciences Data Unit (ESDU): Flat Panels in Shear. Buckling of long panels with transverse stiffeners. ESDU 02. 03. 02 (1971).

[3] H. Assler, and J. Telgkamp: Design of aircraft structures under special consideration of NDT. 9th European Conference on NDT. Berlin (2006).

[4] T. Weller, H. Abramovich and R. Yaffe: Dynamics of beams and plates subjected to axial impact. Computers and Structures, Vol. 32(3-4) (1981), pp.835-851.

DOI: 10.1016/0045-7949(89)90368-4

[5] C. Bisagni and P. Linde: Numerical simulation of the structural behaviour of orthotropically stiffened aircraft panels under short time duration loading. International Congress of Aeronautical Sciences. Hamburg (2006).

[6] Advisory Council for Aeronautics Research in Europe. Strategic Research Agenda in Aeronautics 2020 (2004).

[7] G.A. Zizicas: Dynamic buckling of thin plates. Trans. ASME, 74(7) (1952), pp.1257-1268.

DOI: 10.1115/1.4016091

[8] J. Ari-Gur, J. Singer and T. Weller: Dynamic buckling of plates under longitudinal impact. Israel J Techno, Vol. 19 (1981), pp.57-64.

[9] C. Bisagni and R. Zimmerman, Buckling of axially compressed fiber composite cylindrical shells due to impulsive loading. Proceedings of the European Conference on Spacecraft Structures, Materials and Mechanical Testing (1998), pp.557-562.

[10] R. Yaffe and H. Abromovich: Dynamic buckling of cylindrical stringer stiffened shells. Computers and Structures, Vol. 81 (2003), pp.1031-1039.

DOI: 10.1016/s0045-7949(02)00417-0

[11] T. Zhang, T. Liu, Y. Zhao and J. Luo: Nonlinear dynamic buckling of stiffened plates under inplane impact loading. Journal of Zhejiang University of Science, Vol. 5(5) (2004), p.609617.

DOI: 10.1631/jzus.2004.0609

[12] C. Bisagni, Dynamic buckling test of cylindrical shells in composite materials. 24 th International Congress of the Aeronautical Sciences, Yokahama (2004).
