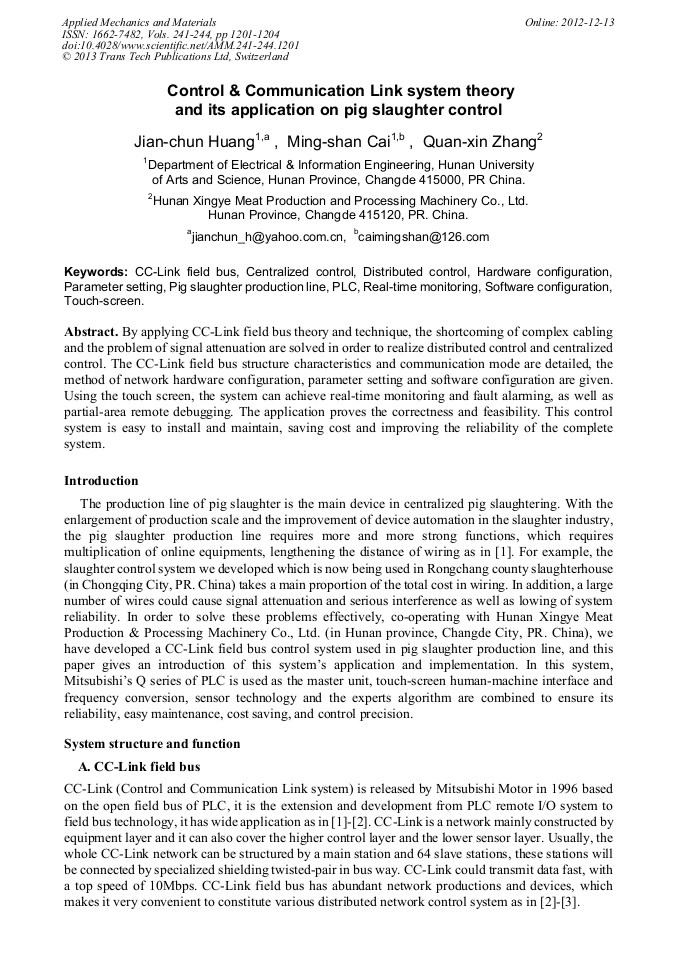

Control & Communication Link System Theory and Its Application on Pig Slaughter Control

Abstract:

By applying CC-Link field bus theory and technique, the shortcoming of complex cabling and the problem of signal attenuation are solved in order to realize distributed control and centralized control. The CC-Link field bus structure characteristics and communication mode are detailed, the method of network hardware configuration, parameter setting and software configuration are given. Using the touch screen, the system can achieve real-time monitoring and fault alarming, as well as partial-area remote debugging. The application proves the correctness and feasibility. This control system is easy to install and maintain, saving cost and improving the reliability of the complete system.

• Periodical: Applied Mechanics and Materials (Volumes 241-244)
• Pages: 1201-1204
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.241-244.1201
• Online since: December 2012
• Authors: Jian Chun Huang, Ming Shan Cai, Quan Xin Zhang
• Keywords: CC-Link Field Bus, Centralized Control, Distributed Control, Hardware Configuration, Parameter Setting, Pig Slaughter Production Line, Programmable Logic Controller (PLC), Real-Time Monitoring, Software Configuration, Touch-Screen
