Creep Behaviors of Stress-Relieved and Annealed Zr-1Nb-0.7Sn-0.1Fe Nuclear Cladding Tubes at Intermediate Temperatures

Jong Min Lee; Sun Ig Hong

doi:10.4028/www.scientific.net/AMM.248.343

Paper Titles

Correlation between Optical and Electrical Properties of the Pulsed-Laser Deposited Amorphous Films of Germanium
p.320

Constitutive Equations for Hot Deformation of Plain-Carbon Steel
p.325

Actors-Network Analysis on Carbon Capture and Storage Technological Innovation System in China and the U.S
p.331

Research on the Performance of End Face Seal in Space Liquid Lubrication System
p.337

Creep Behaviors of Stress-Relieved and Annealed Zr-1Nb-0.7Sn-0.1Fe Nuclear Cladding Tubes at Intermediate Temperatures
p.343

Bending Deformability and Fracture Behavior of Heat-Treated 3-ply Cu/Al/Cu Clad Plates
p.349

Abrasion Wear of Heterogeneous Materials
p.355

Wavelet Analysis of Carbon Fiber Composite Material Flaw Detection
p.361

Design Square Grid Sandwich Plate Based on Equivalent Theory
p.365

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 248Creep Behaviors of Stress-Relieved and Annealed...

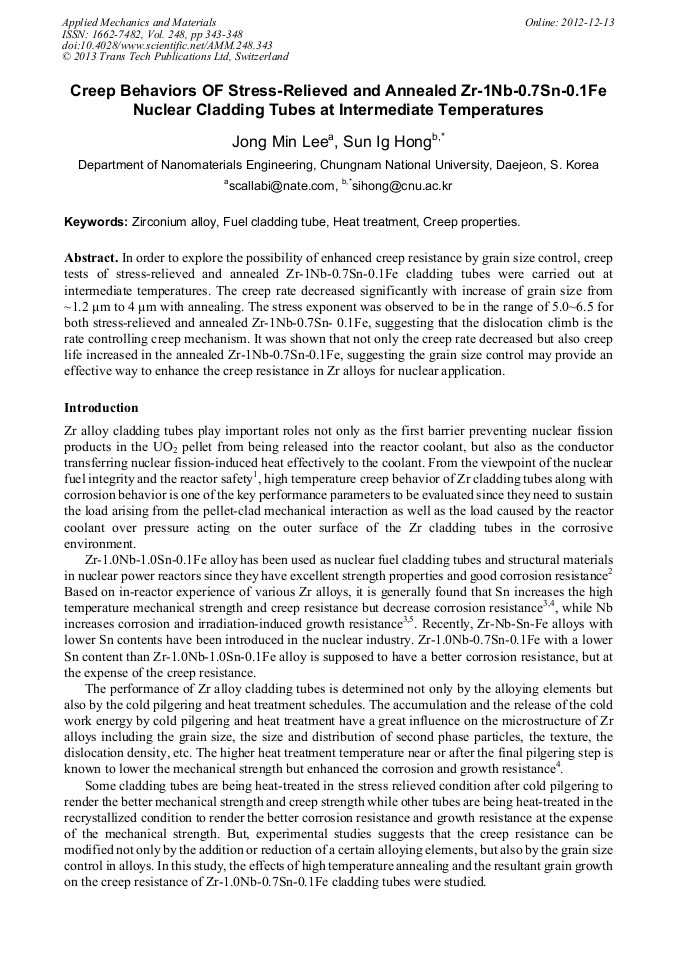

Creep Behaviors of Stress-Relieved and Annealed Zr-1Nb-0.7Sn-0.1Fe Nuclear Cladding Tubes at Intermediate Temperatures

Abstract:

In order to explore the possibility of enhanced creep resistance by grain size control, creep tests of stress-relieved and annealed Zr-1Nb-0.7Sn-0.1Fe cladding tubes were carried out at intermediate temperatures. The creep rate decreased significantly with increase of grain size from ~1.2 μm to 4 μm with annealing. The stress exponent was observed to be in the range of 5.0~6.5 for both stress-relieved and annealed Zr-1Nb-0.7Sn- 0.1Fe, suggesting that the dislocation climb is the rate controlling creep mechanism. It was shown that not only the creep rate decreased but also creep life increased in the annealed Zr-1Nb-0.7Sn-0.1Fe, suggesting the grain size control may provide an effective way to enhance the creep resistance in Zr alloys for nuclear application.
