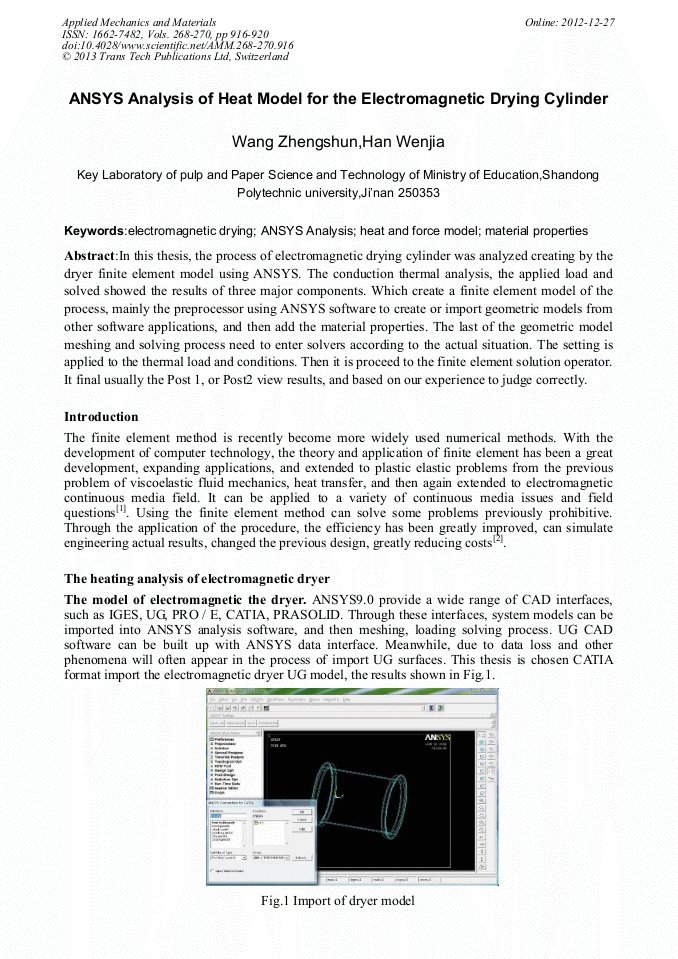

ANSYS Analysis of Heat Model for the Electromagnetic Drying Cylinder

Abstract:

In this thesis, the process of electromagnetic drying cylinder was analyzed creating by the dryer finite element model using ANSYS. The conduction thermal analysis, the applied load and solved showed the results of three major components. Which create a finite element model of the process, mainly the preprocessor using ANSYS software to create or import geometric models from other software applications, and then add the material properties. The last of the geometric model meshing and solving process need to enter solvers according to the actual situation. The setting is applied to the thermal load and conditions. Then it is proceed to the finite element solution operator. It final usually the Post 1, or Post2 view results, and based on our experience to judge correctly

• Periodical: Applied Mechanics and Materials (Volumes 268-270)
• Pages: 916-920
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.268-270.916
• Online since: December 2012
• Authors: Zheng Shun Wang, Wen Jia Han
• Keywords: ANSYS Analysis, Electromagnetic Drying, Force Model, Heat Model, Material Property
