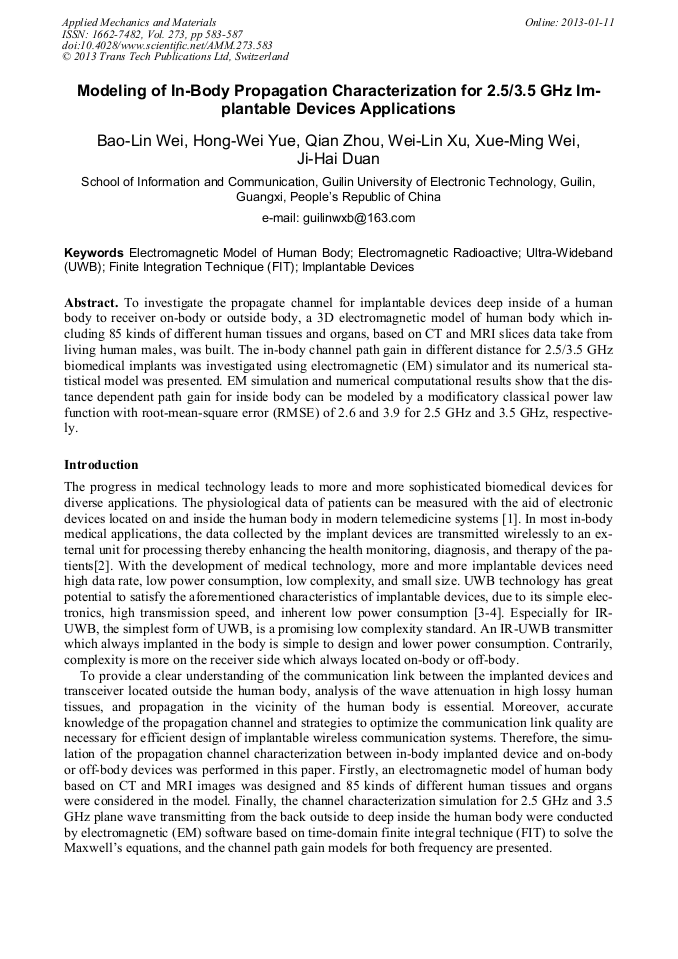

Modeling of In-Body Propagation Characterization for 2.5/3.5 GHz Implantable Devices Applications

Abstract:

To investigate the propagate channel for implantable devices deep inside of a human body to receiver on-body or outside body, a 3D electromagnetic model of human body which including 85 kinds of different human tissues and organs, based on CT and MRI slices data take from living human males, was built. The in-body channel path gain in different distance for 2.5/3.5 GHz biomedical implants was investigated using electromagnetic (EM) simulator and its numerical sta-tistical model was presented. EM simulation and numerical computational results show that the dis-tance dependent path gain for inside body can be modeled by a modificatory classical power law function with root-mean-square error (RMSE) of 2.6 and 3.9 for 2.5 GHz and 3.5 GHz, respectively

• Periodical: Applied Mechanics and Materials (Volume 273)
• Pages: 583-587
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.273.583
• Online since: January 2013
• Authors: Bao Lin Wei, Hong Wei Yue, Qian Zhou, Wei Lin Xu, Xue Ming Wei, Ji Hai Duan
• Keywords: Electromagnetic Model of Human Body, Electromagnetic Radioactive, Finite Integration Technique (FIT), Implantable Devices, Ultra-Wideband (UWB)

References

[1] Otto C, Milenkovic A, Sanders C, Jovanov E (2006) System architecture of a wireless body area sensor network for ubiquitous health monitoring. J. Mobile Multimedia, 1(4): 307-326.

[2] Khaleghi A, Chávez-Santiago R, Liang X, Balasingham I, Leung V C M and Ramstad T A (2010) On Ultra Wideband Channel Modeling for In-Body Communications. In: IEEE Int. Symp. on Wireless Pervasive Computing, Modena, Italy, pp.140-145.

DOI: 10.1109/iswpc.2010.5483804

[3] Allen B, Brown T, Schwieger K, Zimmermann E, Malik W, Edwards D, Ouvry L and Oppermann I (2005) Ultra wideband: Applications, technology and future perspectives. In: Int. Workshop on Convergent Tech., Oulu, Finland, pp.1-6.

[4] Stig Støa, Chavez-Santiago R and Balasingham I (2010) An Ultra Wideband Communication Channel Model for Capsule Endoscopy. In: Int. Symp. on Applied Sciences in Biomedical and Communication Tech., Rome, Italy, pp.1-5.

DOI: 10.1109/isabel.2010.5702854

[5] Gabriel C and Gabriel S (1996).

[6] Zubal I G, Harrell C R, Smith E O, Rattner Z, Gindi G and Hoffer P B (1994) Comput-erized three-dimensional segmented human anatomy. Medical Physics, 21(2): 299-302.

DOI: 10.1118/1.597290

[7] http: /www. nlm. nih. gov/research/visible/visible_human. html.

[8] http: /niremf. ifac. cnr. it/tissprop/htmlclie/htmlclie. htm.

[9] IEEE Standard C95-1 Group (2006) IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields 3 kHz to 300 GHz. IEEE Standard C95-1. IEEE press, New York, USA.

DOI: 10.1109/ieeestd.2006.99501

[10] Andreas F Molisch (2009) Ultra-Wide-Band Propagation Channels. Proc. of the IEEE, 97(2): 353-371.

DOI: 10.1109/jproc.2008.2008836
