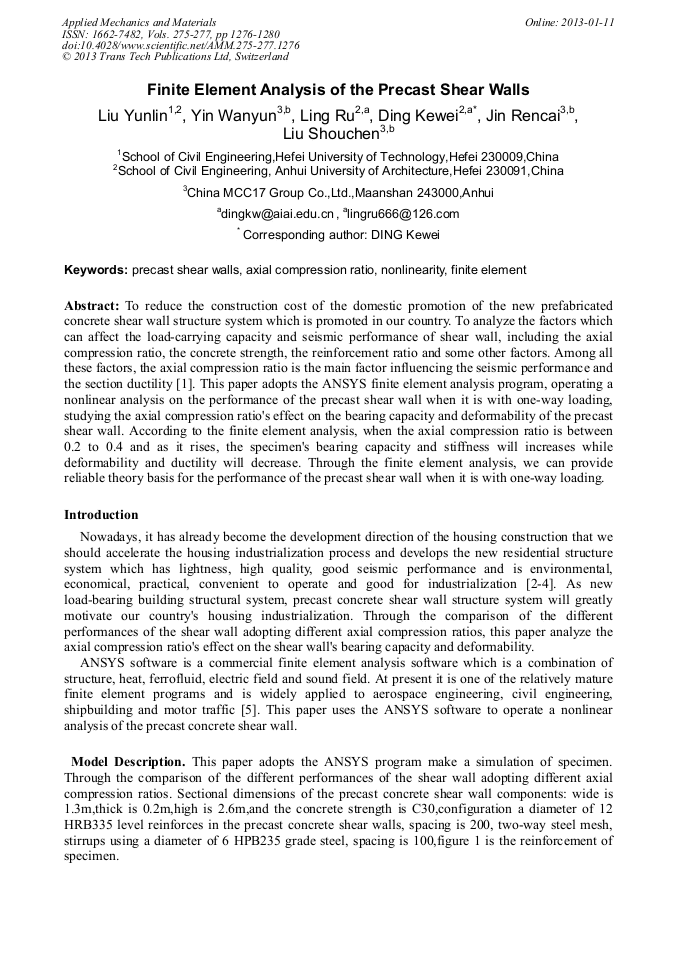

Finite Element Analysis of the Precast Shear Walls

Abstract:

To reduce the construction cost of the domestic promotion of the new prefabricated concrete shear wall structure system which is promoted in our country. To analyze the factors which can affect the load-carrying capacity and seismic performance of shear wall, including the axial compression ratio, the concrete strength, the reinforcement ratio and some other factors. Among all these factors, the axial compression ratio is the main factor influencing the seismic performance and the section ductility [1]. This paper adopts the ANSYS finite element analysis program, operating a nonlinear analysis on the performance of the precast shear wall when it is with one-way loading, studying the axial compression ratio's effect on the bearing capacity and deformability of the precast shear wall. According to the finite element analysis, when the axial compression ratio is between 0.2 to 0.4 and as it rises, the specimen's bearing capacity and stiffness will increases while deformability and ductility will decrease. Through the finite element analysis, we can provide reliable theory basis for the performance of the precast shear wall when it is with one-way loading.

• Periodical: Applied Mechanics and Materials (Volumes 275-277)
• Pages: 1276-1280
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.275-277.1276
• Online since: January 2013
• Authors: Yun Lin Liu, Wan Yun Yin, Ru Ling, Ke Wei Ding, Ren Cai Jin, Shou Chen Liu
• Keywords: Axial Compression Ratio, Finite Element, Nonlinear, Precast Shear Walls

References

[1] Huang Qi. Prefabricated T-type shear walls trial and Ansys analysis of under cyclic loads [D]. Shandong: Shandong Institute of Architecture, 2010.6.

[2] Ding Dajun. Wall reform and sustainable development [J]. Building structure, 2004, 34 (2):56-62.

[3] Yao Qianfeng,Huang Wei. Summary of the study on development and application of new residential building structure [J]. Construction technology,2003,32(10):6-9.

[4] Pan Zhihong,Li Aiqun. Residential building industrialization and the new residential building structure system [J]. Construction technology,2008,37(2):1-4.

[5] Liu Xiangxin, Meng Xianxi. Basis and application of ANSYS tutorials [M]. Beijing: China Architecture and Building Press,2006.

[6] Zhang Shengmin. Structure analysis of based on finite element software ANSYS7.0 [M]. Beijing: Tsinghua University Press,2003:35-40.

[7] Lian Xing Finite element analysis of the superimposed slab shearwalls[J].Journal of Hefei University of Technology,2009,32(7):1065-1069.

[8] Li Zhu and Li Gang, Liu Yuanzhen. The nonlinear analysis of shear small span ratio slitted shear walls [J]. Journal of XI ' an University of architecture and technology,2008,40(1):8-12.

[9] Ministry of Housing and Urban-Rural Development of the People's Republic of China GB50010-2002 Design Specification for Concrete Structures [S]. Beijing: China Architecture and Building Press 2002.

[10] Shen Xiaopu, Zhou Honggeng. Finite element analysis of superimposed concrete shear wall panels with the vertical seam [J]. Journal of Shenyang University of architectural, 2010, 26(5): 906-912.
