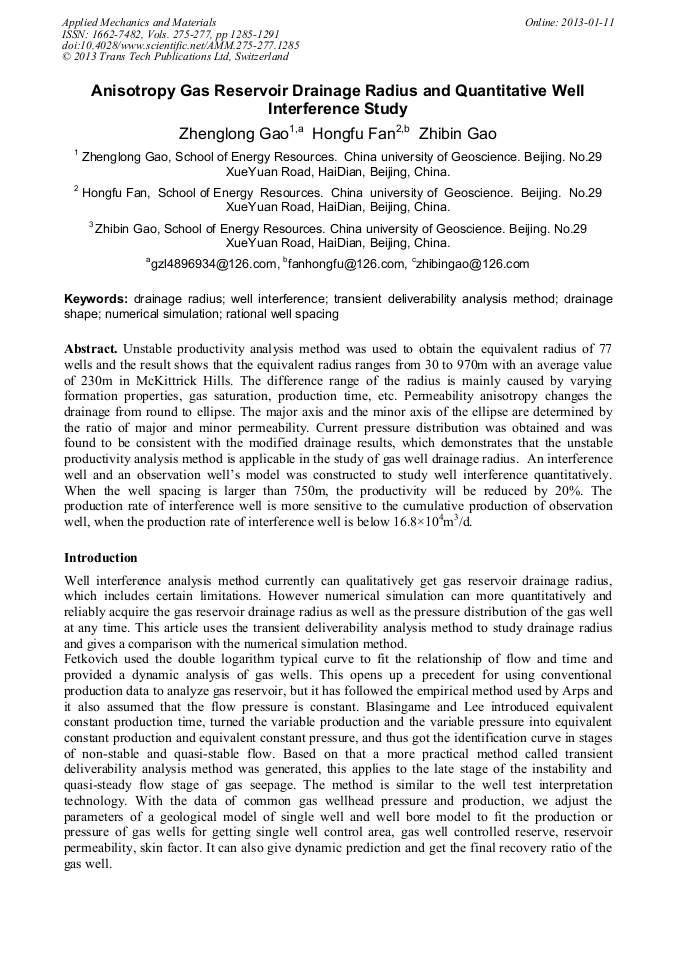

Anisotropy Gas Reservoir Drainage Radius and Quantitative Well Interference Study

Abstract:

Unstable productivity analysis method was used to obtain the equivalent radius of 77 wells and the result shows that the equivalent radius ranges from 30 to 970m with an average value of 230m in McKittrick Hills. The difference range of the radius is mainly caused by varying formation properties, gas saturation, production time, etc. Permeability anisotropy changes the drainage from round to ellipse. The major axis and the minor axis of the ellipse are determined by the ratio of major and minor permeability. Current pressure distribution was obtained and was found to be consistent with the modified drainage results, which demonstrates that the unstable productivity analysis method is applicable in the study of gas well drainage radius. An interference well and an observation well’s model was constructed to study well interference quantitatively. When the well spacing is larger than 750m, the productivity will be reduced by 20%. The production rate of interference well is more sensitive to the cumulative production of observation well, when the production rate of interference well is below 16.8×104m3/d.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 275-277)

Pages:

1285-1291

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.275-277.1285

Citation:

Cite this paper

Online since:

January 2013

Authors:

Zheng Long Gao, Hong Fu Fan, Zhi Bin Gao

Keywords:

Drainage Radius, Drainage Shape, Numerical Simulation, Rational Well Spacing, Transient Deliverability Analysis Method, Well Interference

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Robinson, R.L. and Engler, T.W.An Effective Technique of Estimating Drainage Shape, Magnitude and Orientation in a Low-Permeability Gas Sand, SPE Paper No.77742.

DOI: 10.2118/77742-ms

Google Scholar

[2] Method of dynamic analysis of tight gas wells in low-permeability gas reservoirs Natural gas exploration and development 2009,10

Google Scholar

[3] Liu Haifeng: Study on the infill wells in jingbian gas field deployment conditions in China 2007,1:83～85

Google Scholar

[4] New method of identifying oil and gas well discharge radius Petroleum Geology and recovery, 2010,5

Google Scholar
