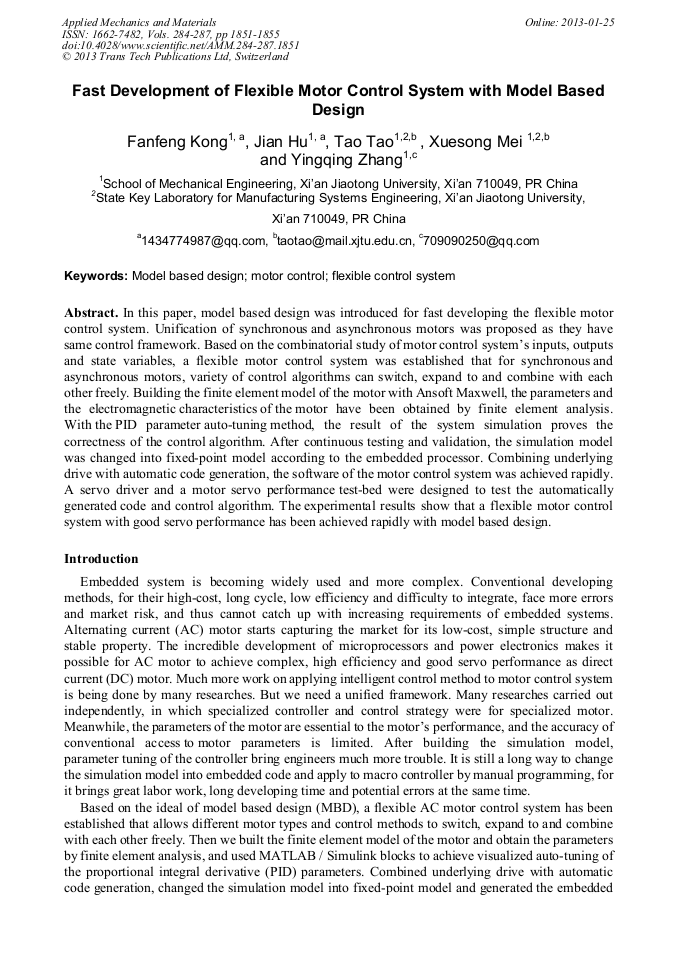

Fast Development of Flexible Motor Control System with Model Based Design

Abstract:

In this paper, model based design was introduced for fast developing the flexible motor control system. Unification of synchronous and asynchronous motors was proposed as they have same control framework. Based on the combinatorial study of motor control system’s inputs, outputs and state variables, a flexible motor control system was established that for synchronous and asynchronous motors, variety of control algorithms can switch, expand to and combine with each other freely. Building the finite element model of the motor with Ansoft Maxwell, the parameters and the electromagnetic characteristics of the motor have been obtained by finite element analysis. With the PID parameter auto-tuning method, the result of the system simulation proves the correctness of the control algorithm. After continuous testing and validation, the simulation model was changed into fixed-point model according to the embedded processor. Combining underlying drive with automatic code generation, the software of the motor control system was achieved rapidly. A servo driver and a motor servo performance test-bed were designed to test the automatically generated code and control algorithm. The experimental results show that a flexible motor control system with good servo performance has been achieved rapidly with model based design.

• Periodical: Applied Mechanics and Materials (Volumes 284-287)
• Pages: 1851-1855
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.284-287.1851
• Online since: January 2013
• Authors: Fan Feng Kong, Jian Hu, Tao Tao, Xue Song Mei, Ying Qing Zhang
• Keywords: Flexible Control System, Model Based Design, Motor Control

References

[1] Holtz, J., Sensorless control of induction motor drives, Proceedings of the IEEE , vol.90, no.8, pp.1359-1394, Aug (2002)

DOI: 10.1109/jproc.2002.800726

[2] Qingding Guo, Yibiao Sun, Limei Wang, Modern Permanent Magnet Motor AC Servo System, first ed., China Electric Power Press, Beijing, 2006.

[3] Yi Ruan, Boshi Chen, Control Systems of Electric Drives-Motion Control Systems, fourth ed.,China Machine Press, Beijing, 2010.

[4] Jie Liu, Model-Based Design and its embedded implementation, first ed., Beihang University Press, Beijing, 2010.

[5] Islam, R., Husain, I., Analytical model for predicting noise and vibration in permanent magnet synchronous motors, Energy Conversion Congress and Exposition, 2009. ECCE 2009. IEEE , vol., no., pp.3461-3468, 20-24

DOI: 10.1109/ecce.2009.5316074

[6] Taegen, F., Kolbe, J., Verma, S.P., Vibrations and noise produced by special purpose permanent-magnet synchronous motors in variable frequency operation, Power Electronics and Drive Systems, 2001. Proceedings., 2001 4th IEEE International Conference on , vol.2, no., pp.583-588 vol.2, 22-25 Oct (2001)

DOI: 10.1109/peds.2001.975383

[7] Bo Zhao, Hongliang Zhang, Application of Ansoft 12 in electromagnetic engineering, first ed., China Water & Power Press, Bejing, 2010.

[8] Yourui Huang, Liguo Qu, PID controller parameters tuning and implementation, first ed., Science Press, Beijing, 2010.

[9] The MathWorks, Inc., Real-Time Workshop 7 User's Guide, (2010)
