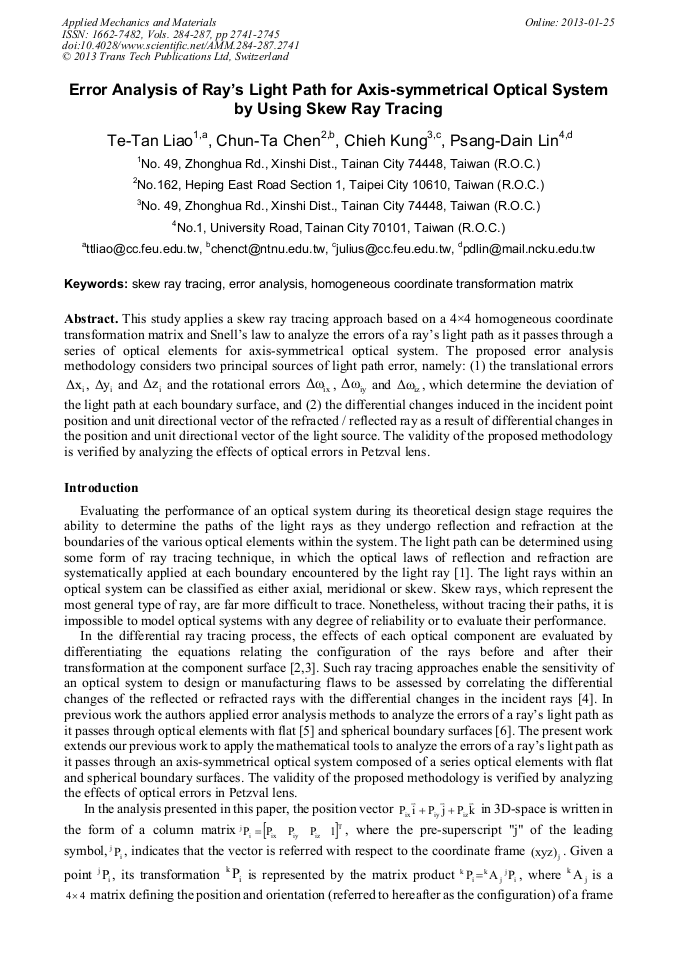

Error Analysis of Ray’s Light Path for Axis-Symmetrical Optical System by Using Skew Ray Tracing

Abstract:

ωThis study applies a skew ray tracing approach based on a 4×4 homogeneous coordinate transformation matrix and Snell’s law to analyze the errors of a ray’s light path as it passes through a series of optical elements for axis-symmetrical optical system. The proposed error analysis methodology considers two principal sources of light path error, namely: (1) the translational errors Δx_i, Δy_i and Δz_i and the rotational errors Δω_ix, Δω_iy and Δω_iz, which determine the deviation of the light path at each boundary surface, and (2) the differential changes induced in the incident point position and unit directional vector of the refracted / reflected ray as a result of differential changes in the position and unit directional vector of the light source. The validity of the proposed methodology is verified by analyzing the effects of optical errors in Petzval lens.

• Periodical: Applied Mechanics and Materials (Volumes 284-287)
• Pages: 2741-2745
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.284-287.2741
• Online since: January 2013
• Authors: Te Tan Liao, Chun Ta Chen, Chieh Kung, Psang Dain Lin
• Keywords: Error Analysis, Homogeneous Coordinate Transformation Matrix, Skew Ray Tracing

References

[1] M. Herzberger: Modern Geometrical Optics (Interscience Publishers, New York 1958).

[2] B.D. Stone: J. Opt. Soc. Am. A Vol. 14 (1997), p.3415.

[3] W. Wu and P.D. Lin: J. Opt. Soc. Am. A Vol. 28 (2011), p.747.

[4] C.Y. Tsai and P.D. Lin: Appl. Opt. Vol. 45 (2006), p.2951.

[5] T.T. Liao: Optik Vol. 119 (2008), p.713.

[6] T.T. Liao and C.T. Chen: J. Mod. Opt. Vol. 55 (2008), p. (1981).

[7] R.P. Paul: Robot Manipulators: Mathematics, Programming and Control (Cambridge, Mass.: MIT Press 1981).
