Effect of Bi2O3 Addition on the Microstructure and Electrical Properties of Lead-Free (Na0.5K0.5)NbO3-Ba(Sn0.02Ti0.98)O3 Ceramics

Abstract:

Article Preview

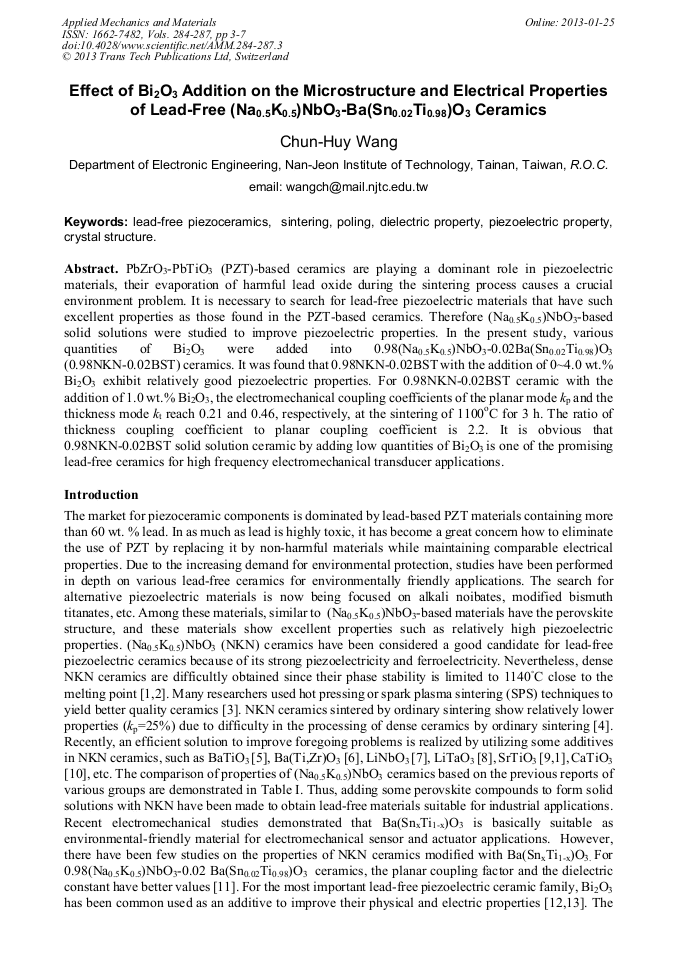

PbZrO3-PbTiO3 (PZT)-based ceramics are playing a dominant role in piezoelectric materials, their evaporation of harmful lead oxide during the sintering process causes a crucial environment problem. It is necessary to search for lead-free piezoelectric materials that have such excellent properties as those found in the PZT-based ceramics. Therefore (Na0.5K0.5)NbO3-based solid solutions were studied to improve piezoelectric properties. In the present study, various quantities of Bi2O3 were added into 0.98(Na0.5K0.5)NbO3-0.02Ba(Sn0.02Ti0.98)O3 (0.98NKN-0.02BST) ceramics. It was found that 0.98NKN-0.02BST with the addition of 0~4.0 wt.% Bi2O3 exhibit relatively good piezoelectric properties. For 0.98NKN-0.02BST ceramic with the addition of 1.0 wt.% Bi2O3, the electromechanical coupling coefficients of the planar mode kp and the thickness mode kt reach 0.21 and 0.46, respectively, at the sintering of 1100oC for 3 h. The ratio of thickness coupling coefficient to planar coupling coefficient is 2.2. It is obvious that 0.98NKN-0.02BST solid solution ceramic by adding low quantities of Bi2O3 is one of the promising lead-free ceramics for high frequency electromechanical transducer applications.

Info:

Periodical:

Edited by:

Wen-Hsiang Hsieh

Pages:

3-7

Citation:

C. H. Wang, "Effect of Bi2O3 Addition on the Microstructure and Electrical Properties of Lead-Free (Na0.5K0.5)NbO3-Ba(Sn0.02Ti0.98)O3 Ceramics", Applied Mechanics and Materials, Vols. 284-287, pp. 3-7, 2013

Online since:

January 2013

Authors:

Export:

Price:

$38.00

[1] Y. Guo, K. Kakimoto, and H. Ohsato: Solid State Commun., Vol. 129 (2004), p.279.

[2] S. Y. Chu, W. Water, Y.D. Juang, J. T. Liaw, and S. B. Dai: Ferroelectrics, Vol. 297 (2003), p.11.

[3] M. Matsubara, T. Yamaguchi, K. Kikuta, and S. Hirano: Jpn. J. Appl. Phys., Vol. 44 (2005), p.6136.

[4] M. D. Maeder, D. Damjanovic and N. Setter: J. Electroceram, Vol. 13 (2004), p.385.

[5] Y. Guo, K. Kakimoto, and H. Ohsato: Jpn. J. Appl. Phys., Vol. 43 (2004), p.6662.

[6] C. H. Wang: J. Ceram. Soc. Jpn., Vol. 117 (2009), p.680.

[7] Y. Guo, K. Kakimoto, and H. Ohsato: Appl. Phys. Lett., Vol. 85 (2004), p.4121.

[8] Y. Guo, K. Kakimoto, H. Ohsato: Mater. Lett., Vol. 59 (2005), p.241.

[9] M. Kosec, V. Bobnar, M. Hrovat, J. Bernard, B. Malic, and J. Holc: J. Mater. Res., Vol. 19 (2004), p.1849.

[10] R. C. Chang, S. Y. Chu, Y. F. Lin, C. S. Hong and Y. P. Wong: J. Eur. Cerm. Soc., Vol. 27 (2007), p.4453.

[11] Chun-Huy Wang: Jpn. J. Appl. Phys., Vol. 48 (2009), 041403.

[12] Chun-Huy Wang: J. Ceram. Soc. Jpn., Vol. 117.

[5] (2009), p.693.

[13] Chun-Huy Wang: Key Engineering Materials, Vol. 434-435 (2010), p.413.

[14] Anon.: Proc. IRE., Vol. 49 (1961), p.1161.

[15] T. Senda, and R. C. Bradt: J. Am. Ceram. Soc, Vol. 73.

[1] (1990), p.106.

[16] Y. Guo, K. Kakimoto, and H. Ohsato: Jpn. J. Appl. Phys., Vol. 43 (2004), p.6662.

[17] K. Okazaki and K. Nagata: J. Am. Ceram. Soc., Vol. 56.

[2] (1973), p.82.
