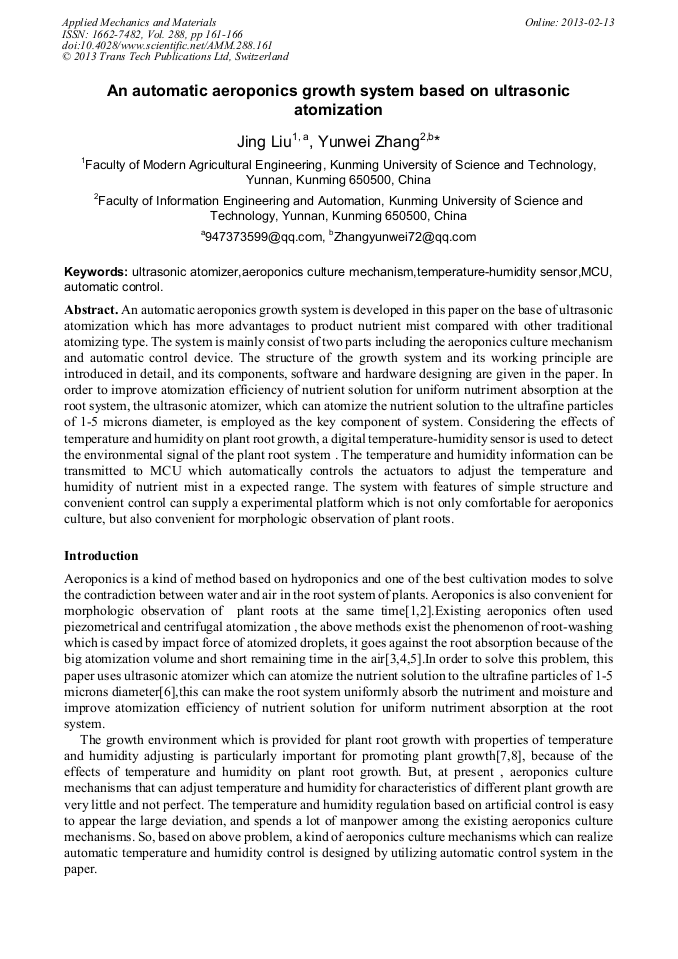

An Automatic Aeroponics Growth System Based on Ultrasonic Atomization

Abstract:

An automatic aeroponics growth system is developed in this paper on the base of ultrasonic atomization which has more advantages to product nutrient mist compared with other traditional atomizing type. The system is mainly consist of two parts including the aeroponics culture mechanism and automatic control device. The structure of the growth system and its working principle are introduced in detail, and its components, software and hardware designing are given in the paper. In order to improve atomization efficiency of nutrient solution for uniform nutriment absorption at the root system, the ultrasonic atomizer, which can atomize the nutrient solution to the ultrafine particles of 1-5 microns diameter, is employed as the key component of system. Considering the effects of temperature and humidity on plant root growth, a digital temperature-humidity sensor is used to detect the environmental signal of the plant root system . The temperature and humidity information can be transmitted to MCU which automatically controls the actuators to adjust the temperature and humidity of nutrient mist in a expected range. The system with features of simple structure and convenient control can supply a experimental platform which is not only comfortable for aeroponics culture, but also convenient for morphologic observation of plant roots.

• Periodical: Applied Mechanics and Materials (Volume 288)
• Pages: 161-166
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.288.161
• Online since: February 2013
• Authors: Jing Liu, Yun Wei Zhang
• Keywords: Aeroponics Culture Mechanism, Automatic Control, Micro Controller Unit (MCU), Temperature-Humidity Sensor, Ultrasonic Atomizer

References

[1] Jing Wen, Ruifeng Cheng, Lili Meng, etc Development and Application Effect of Ultrasonic Aeroponic Cultivation Device [J]. Acta Agriculturae Jiangxi, 2012, 24(1) : 23-25.

[2] Weizhong Xu, Libing Wang, Xifa Zhan, etc. Review on Aeroponics—A New Cultivation Pattern [J]. Guangdong Agricultural Sciences, 2006, (7) : 30-33.

[3] Youjun Shang, Ming Zhao, Jianhe Yan, etc. The Application of Ultrasonic Atomization Technology in Crop Root Cultivation [J]. Crops, 1998, (6) : 3-4.

[4] Hongying Zhao, Lecai Cai. Analysis for the Fog-drop Flight Time of Ultrasonic Nebulizer [J]. Journal of Sichuan University of Science & Engineering(Natural Sicence Edition) 2010, (1) : 88-90.

[5] Qingxue He, Jichun Wang, Daobin Kang, etc. Increasing Minituber Production in Aeroponic Culture [J] Chinese Potato Journal 2003, (2) : 70-73.

[6] Weixing Huang, Jianming Gao, Cuiying Chen. Present Situations and Prospects of Ultrasonic Atomization Application [J] Journal of Agricultural Mechanization Research 2007, (3) : 154-158.

[7] Yi Zheng, Chongxing Bu, Liang Huang, etc. Study on Effect of New Tubbish Soilless Culture Device on Daily Variation of Temperature and Relative Humiditity in Root Area and Root Growth in Tomato [J]. Journal of Changjiang Vegetables 2008, 5 b: 60-62.

[8] M.A.R. M ian, etc. The Influence of Wheat Root Growth In Different Greenhouse Humidity Conditions [J]. Rain Fed Crops - Wheat Crop, 1995, (2) : 27 -28.

[9] Shizhe Liu. Modern practical soilless culture technology [M]. Beijing: China Agriculture Press, 2001: 232-236.

[10] Guoxiong Zhou, Junjie Zhu, Wei Zheng. An Intelligent Crop Temperature and Humidity Control System Based on Ultrasonic Atomization [J]. Journal of Agricultural Mechanization Research 2008, (10) : 142-144.

[11] Xiang Gao, Lecai Cai. Design of Intelligent Medical Ultrasonic Nebulize [J]. Journal of Sichuan University of Science & Engineering(Natural Sicence Edition) , 2010, (4) : 473-475.

[12] LinglingWei, Qichang Yang, Xiaoyun Wang, etc. Research and Application of Multifunctional Hydroponics Installations and Nutrient Solution Auto Control System [J]. Transactions of the Chinese Society of Agricultural Engineering , 2008, (11) : 222-225.

[13] Huiqin Xiao, Guoxiong Zhou, Yanhua Sun. Intelligent Integrated Control System Based on MCU Ultrasonic Atomization [J]. Control & Automation 2009, 25 (1-2) : 114-116.
