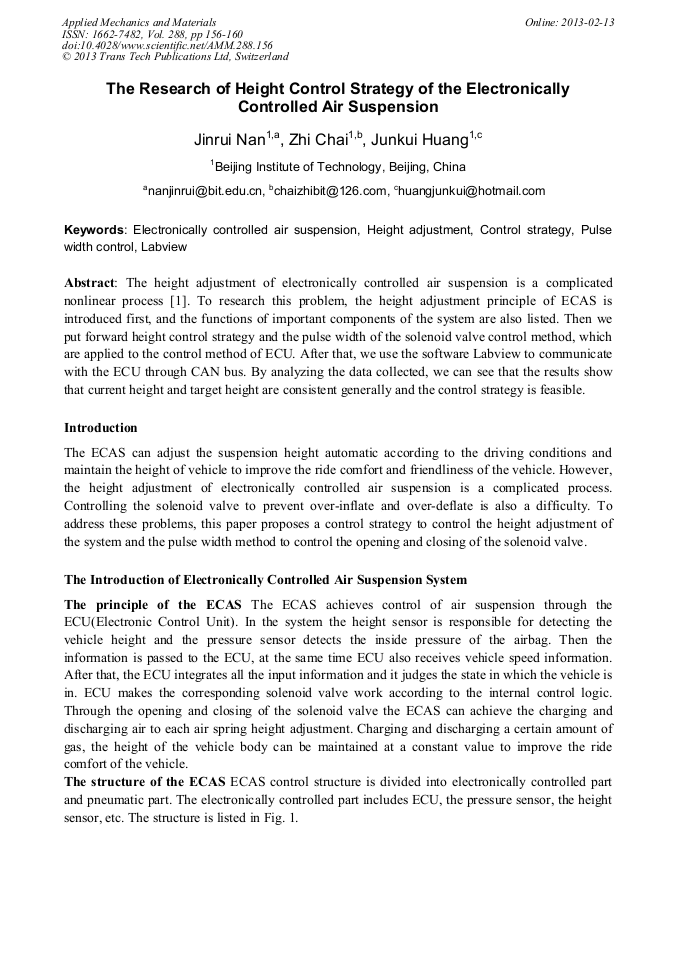

The Research of Height Control Strategy of the Electronically Controlled Air Suspension

Abstract:

The height adjustment of electronically controlled air suspension is a complicated nonlinear process [1]. To research this problem, the height adjustment principle of ECAS is introduced first, and the functions of important components of the system are also listed. Then we put forward height control strategy and the pulse width of the solenoid valve control method, which are applied to the control method of ECU. After that, we use the software Labview to communicate with the ECU through CAN bus. By analyzing the data collected, we can see that the results show that current height and target height are consistent generally and the control strategy is feasible.

• Periodical: Applied Mechanics and Materials (Volume 288)
• Pages: 156-160
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.288.156
• Online since: February 2013
• Authors: Jin Rui Nan, Zhi Chai, Jun Kui Huang
• Keywords: Control Strategy, Electronically Controlled Air Suspension, Height Adjustment, LabVIEW, Pulse Width Control

References

[1] Junming Huang, Kongkang Zhou, Xing, Xu. Nonlinear Model on Leveling Procedure of Electronically Control Air Suspension. Journal of Mechanical Engineering. Vol. 45 No. 6 (2009). p: 278.

DOI: 10.3901/jme.2009.06.278

[2] Jixian Dong, Chunying Wu. Fluid Power Transmission and Control[M]. National Defense Industry Press. 2010. P: 167-169.

[3] WABCO. Electronically controlled air suspension(ECAS) for air-sprung buses[R]. German: A Division of WABCO Standard GmbH, (1997).

[4] Lin Yang, Sizhong Chen, Zhicheng Wu. Design of leveling controlled air suspension for bus[J]. Beijing Automobile, 2007, p: 4-6.
