Variant Design Method of Series Products Based on Skeleton

Abstract:

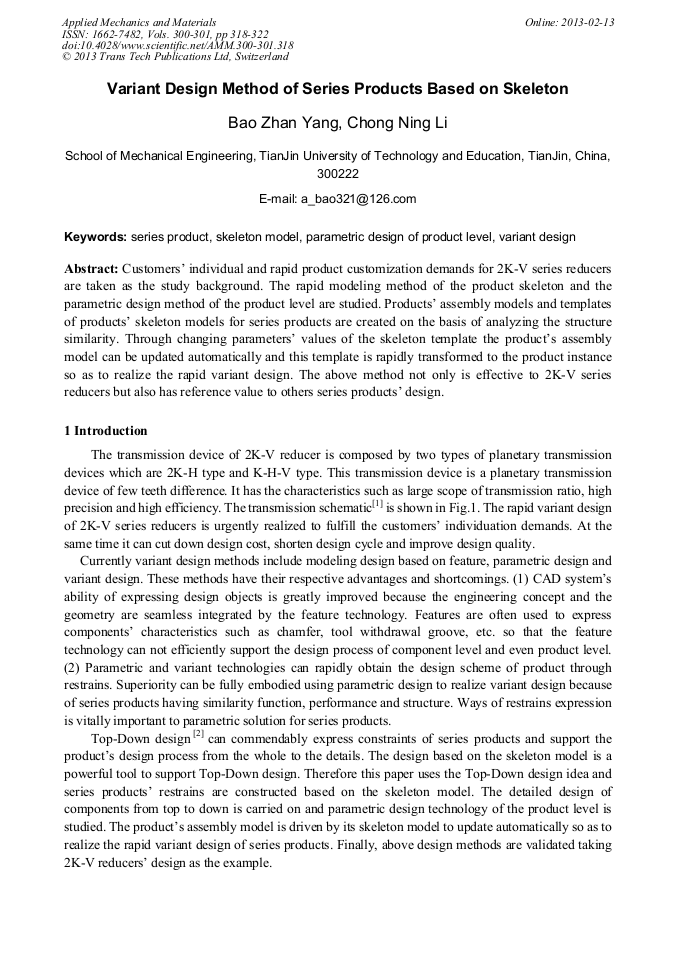

Customers’ individual and rapid product customization demands for 2K-V series reducers are taken as the study background. The rapid modeling method of the product skeleton and the parametric design method of the product level are studied. Products’ assembly models and templates of products’ skeleton models for series products are created on the basis of analyzing the structure similarity. Through changing parameters’ values of the skeleton template the product’s assembly model can be updated automatically and this template is rapidly transformed to the product instance so as to realize the rapid variant design. The above method not only is effective to 2K-V series reducers but also has reference value to others series products’ design.
