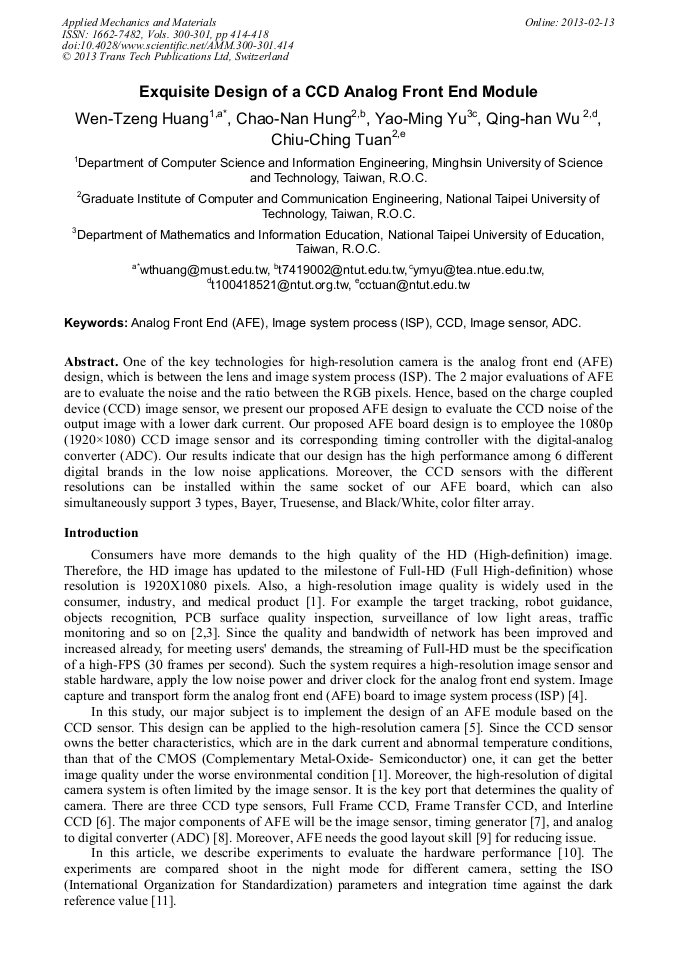

Exquisite Design of a CCD Analog Front End Module

Abstract:

One of the key technologies for high-resolution camera is the analog front end (AFE) design, which is between the lens and image system process (ISP). The 2 major evaluations of AFE are to evaluate the noise and the ratio between the RGB pixels. Hence, based on the charge coupled device (CCD) image sensor, we present our proposed AFE design to evaluate the CCD noise of the output image with a lower dark current. Our proposed AFE board design is to employee the 1080p (1920×1080) CCD image sensor and its corresponding timing controller with the digital-analog converter (ADC). Our results indicate that our design has the high performance among 6 different digital brands in the low noise applications. Moreover, the CCD sensors with the different resolutions can be installed within the same socket of our AFE board, which can also simultaneously support 3 types, Bayer, Truesense, and Black/White, color filter array.

• Periodical: Applied Mechanics and Materials (Volumes 300-301)
• Pages: 414-418
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.300-301.414
• Online since: February 2013
• Authors: Wen Tzeng Huang, Chao Nan Hung, Yao Ming Yu, Qing Han Wu, Chiu Ching Tuan
• Keywords: ADC, Analog Front End (AFE), CCD, Image Sensor, Image System Process (ISP)

References

[1] G.K. Student Member et al.: Quantitative Comparison of Commercial CCD and Custom-Designed CMOS Camera for Biological Applications.

[2] A.H. Esa et al.: Image Analysis For Deformation Behavior Of Optical Based Silicone Tactile Sensor, IEEE International Colloquium on Signal Processing and its Applications, (2012), pp.23-28.

DOI: 10.1109/cspa.2012.6194683

[3] T. Geng, Y.Z. Wang and H.B. Wu: Research on vision-based waveguide alignment of optical fiber, IEEE International Conference on Measurement, Information and Control, ( 2012), pp.286-289.

DOI: 10.1109/mic.2012.6273332

[4] L. Yan et al.: Image Acquisition and Processing for Falling Objects with Line CCD Sensor, IEEE International Conference on Industrial Informatics DCC, Daejeon, Korea, (2008), pp.1257-1261.

DOI: 10.1109/indin.2008.4618296

[5] J.T. Bosiers et al.: A 35-mm Format 11M Pixel Full-Frame CCD for Professional Digital Still Imaging, IEEE Trans. Electron Device, Vol. 50, No. 1, (2003), pp.254-265.

DOI: 10.1109/ted.2002.806477

[6] TrueSense Image, KAI-02150 LongSpec. pdf. (2010).

[7] TrueSense Image, MTD-PS-1090 Interline CDU Users Manual Revision 5. 1.

[8] Analog Device Inc. AD9928. pdf.

[9] C.C. Tuan et al.: A Highly Reliable Platform with a Serpentine Antenna for IEEE 802. 15. 4 over a Wireless Sensor Network, WSEAS TRANSACTIONS on CIRCUITS and SYSTEMS, Issue 6, Vol. 11, (2012), pp.182-197.

[10] P.J. Withagen and F.C.A. Groen: CCD Color Camera Characterization for Image Measurements, IEEE Trans. Instrumentation and Measurement, Vol. 56, No. 1 (2007).

DOI: 10.1109/tim.2006.887667

[11] TrueSense Image: ISO Measurements. pdf (2009).

[12] E.W. Bogaart et al.: Very Low Dark Current CCD image Sensor, IEEE Trans. Electron Device, Vol. 56, No. 11, (2009), pp.2462-2467.

DOI: 10.1109/ted.2009.2030642
