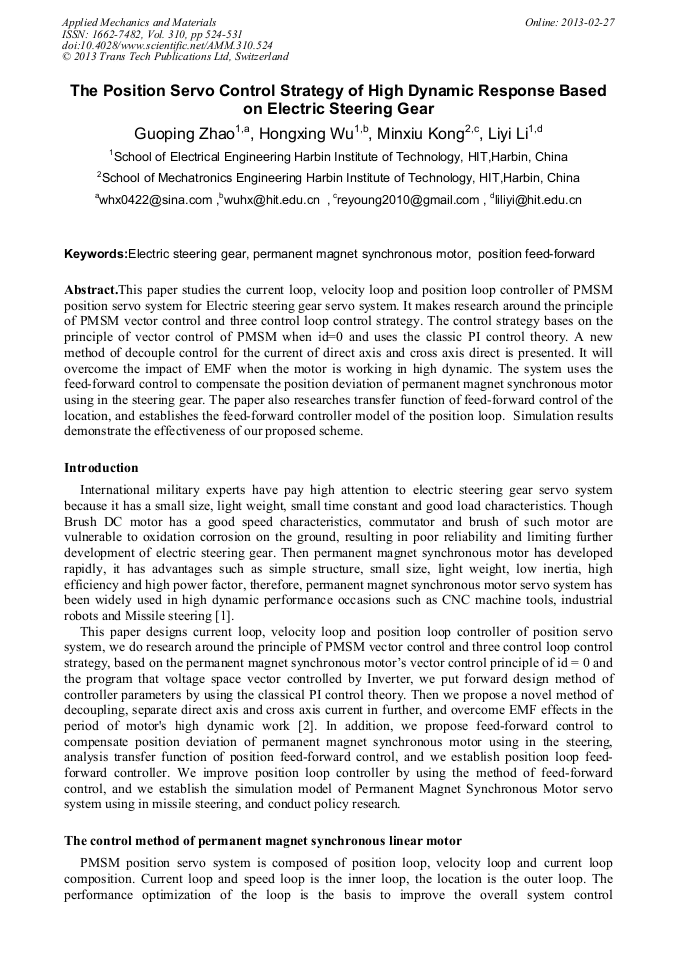

The Position Servo Control Strategy of High Dynamic Response Based on Electric Steering Gear

Abstract:

This paper studies the current loop, velocity loop and position loop controller of PMSM position servo system for Electric steering gear servo system. It makes research around the principle of PMSM vector control and three control loop control strategy. The control strategy bases on the principle of vector control of PMSM when id=0 and uses the classic PI control theory. A new method of decouple control for the current of direct axis and cross axis direct is presented. It will overcome the impact of EMF when the motor is working in high dynamic. The system uses the feed-forward control to compensate the position deviation of permanent magnet synchronous motor using in the steering gear. The paper also researches transfer function of feed-forward control of the location, and establishes the feed-forward controller model of the position loop. Simulation results demonstrate the effectiveness of our proposed scheme.

• Periodical: Applied Mechanics and Materials (Volume 310)
• Pages: 524-531
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.310.524
• Online since: February 2013
• Authors: Guo Ping Zhao, Hong Xing Wu, Min Xiu Kong, Li Yi Li
• Keywords: Electric Steering Gear, Permanent Magnet Synchronous Motor, Position Feed-Forward

References

[1] Ying Yan, Jiang-guo Zhu, "Simulation of a direct torque controlled PMSM drive incorporating structural and Saturation saliencies," Power Electronics Specialists Conference. 2006. PESC 37th IEEE. 2006:1-6.

DOI: 10.1109/pesc.2006.1712015

[2] K. Papnpen, M. Konghirun, "An Improved Sliding Mode Observer for Speed Sensorless Vector Control Drive of PMSM," Power Electronics and Motion Control Conference, 2006. IPEMC '06. CES/IEEE 5th International 2006(2): 1-5.

DOI: 10.1109/ipemc.2006.4778137

[3] Ho Seong Lee, Masayashi Tomizuka, "Robust Motion Controller Design for High-Accuracy Positioning Systems," IEEE Transactions on industry electronics. 1996, 43(1): 48-55.

DOI: 10.1109/41.481407

[4] M. Nasir Uddin, S. Tawfik Radwan, "Performance of Interior Permanent Magnet Motor Drive Over Wide Speed Range," IEEE TRANSACTIONS ON ENERGY CONVERSION, VOL. 17, Mar. 2002: 70-84.

DOI: 10.1109/60.986441

[5] T. Wai, M. Jahns, "A new control technique for achieving wide constant power speed operation with an interior PM alternator machine," 36th IAS Annual Meeting -Conference Record of the 2001 Industry Applications, Chicago, IL, 2001. pp: 807-814.

DOI: 10.1109/ias.2001.955545
