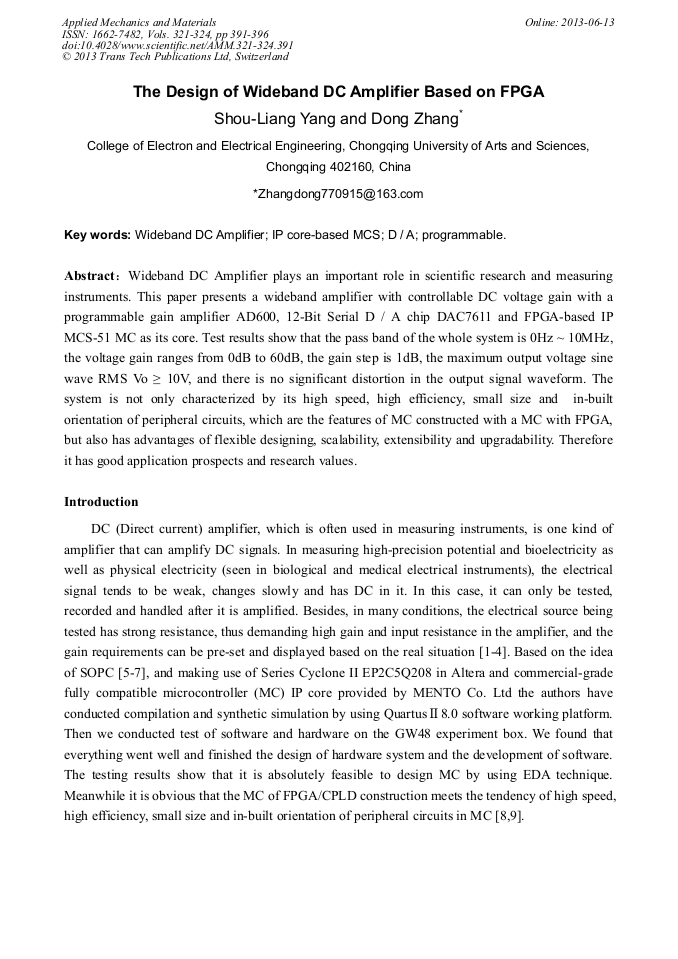

The Design of Wideband DC Amplifier Based on FPGA

Abstract:

Wideband DC Amplifier plays an important role in scientific research and measuring instruments. This paper presents a wideband amplifier with controllable DC voltage gain with a programmable gain amplifier AD600, 12-Bit Serial D / A chip DAC7611 and FPGA-based IP MCS-51 MC as its core. Test results show that the pass band of the whole system is 0Hz ~ 10MHz, the voltage gain ranges from 0dB to 60dB, the gain step is 1dB, the maximum output voltage sine wave RMS Vo ≥ 10V, and there is no significant distortion in the output signal waveform. The system is not only characterized by its high speed, high efficiency, small size and in-built orientation of peripheral circuits, which are the features of MC constructed with a MC with FPGA, but also has advantages of flexible designing, scalability, extensibility and upgradability. Therefore it has good application prospects and research values.

• Periodical: Applied Mechanics and Materials (Volumes 321-324)
• Pages: 391-396
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.321-324.391
• Online since: June 2013
• Authors: Shou Liang Yang, Dong Zhang
• Keywords: D\A, IP Core-Based MCS, Programmable, Wideband DC Amplifier

References

[1] Meng-Jiao Wang, Yi-Cheng Zeng, Chang-Qing Xie, Gao-Feng Zhu, Shu-Hong Tang. Application of Chen's system to detecting weak harmonic signals. Acta Physica Sinica，61 (2012) 52-56.

DOI: 10.7498/aps.61.180502

[2] Ke-xu Sune, Xin-hua Bu, Ke Tang. Design of low noise programmable gain wide-band DC amplifier. Modern Electronic Technique, 35 (2012) 188-190.

[3] Dan Lei, Chuanxiang Li. Design of DC wideband amplifier. Microcomputer ＆ Its Applications,30 (2011) 100-102.

[4] Dong-sheng Yang, Le Li, Jun Yang, Gang Wang. Detection of the Weak Signal with Unknown Frequency Based on the Coupled Chaos Oscillator. Journal of Northeastern University（Natural Science, 33 (2012) 1226-1230.

[5] Jin Che,Cai Kang, Dan Wu. Intelligent Video Surveillance System of Laboratory Based on SoPC. Tv Engineering, 36 (2012) 142-145.

[6] Jinfeng LI, Heng Liu, Yangliang Wan. An Application of SOPC in Bump -shielded Radar Processing System of the Automobile. Microcomputer Applications, 32 (2011) 54-58.

[7] Wei Lin, Yan Shao , Hai-guang Wang. Design of Arbitrary Waveform Signal Generator Based on SoPC. Modern Electronic Technique, 34 (2011) 92-94.

[8] An Wen Wang, Kui Ni, Jie Kuang, Fang Min Chen, Qi Jun Huang , Sheng Chang. Design of 8051 MCU IP core based on Avalon bus. Application of Electronic Technique, 9 (2009) 23-27.

[9] Hui Xu, Jin-hai Wang , Wei Wang. Design and Implementation of 8051 IP Core Based on FPGA. Computer Technology and Development,19 (2009) 42-45.

[10] Jianbin Wu , Mao Tian. Implementation of time varying gain amplifier based on the AD603[J]. Electronic Measurement Technology, 31 (2008) 29-32.

[11] Yuelin Du, Xuefei Jiang ,Mingtao Mei, Zilong Chen. Design based on AD603 programmable-gain high-power broadband DC amplifier . Foreign Electronic Measurement Technology,11 (2010) 47-50.

[12] Qingchun Zhang. The design of high-precision and broadband digital millivoltmeter based on STC89C52. Application of Electronic Technique, 38 (2012) 84-86.

[13] San-jun Liu, Jiang-chuan Fan, Jia-zhi Yan, Hong-hua Liao. Design of Wideband DC Amplifier. Journal of Hubei Institute for Nationalities(Natural Sciences), 29(2011) 103-107.
