Motion Simulation of a Boat Shaped Grass Burying Rotary Tilling Blade Roller by Pro/E

Abstract:

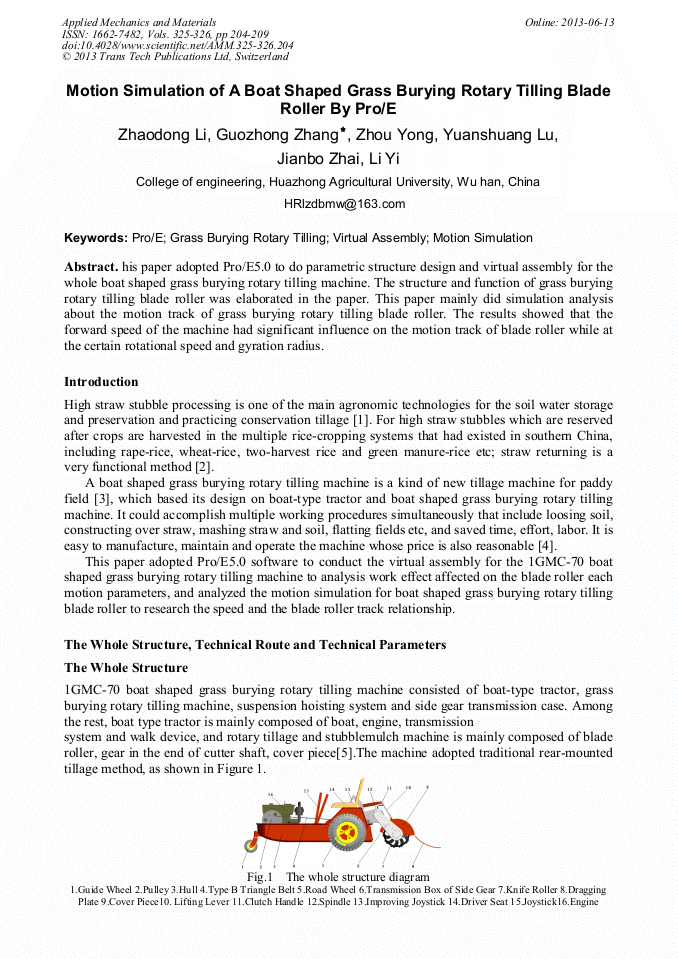

his paper adopted Pro/E5.0 to do parametric structure design and virtual assembly for the whole boat shaped grass burying rotary tilling machine. The structure and function of grass burying rotary tilling blade roller was elaborated in the paper. This paper mainly did simulation analysis about the motion track of grass burying rotary tilling blade roller. The results showed that the forward speed of the machine had significant influence on the motion track of blade roller while at the certain rotational speed and gyration radius.
