Process Practice of Refining for Free Cutting Austenite Stainless Steel

Yi Min Wang; Xian Cai Wang; Li Min Wen

doi:10.4028/www.scientific.net/AMM.325-326.94

Paper Titles

A Research on the Performance of Grey Chassis Organic Coating on Vehicle Equipment
p.75

A Research on the Protective Performance of Green Organic Composite Coating on Vehicle Equipment
p.79

Properties of Alumina Green Parts via Selective Laser Sintering Combined with Cold Isostatic Pressing
p.83

Minimization of Total Processing Time in Semiconductor Photolithography Process
p.88

Process Practice of Refining for Free Cutting Austenite Stainless Steel
p.94

Analysis of Effects of High Temperature on Asphalt Binder
p.97

Screening for the Strain Galactomyces sp. Producing Bioflocculant by UV Mutagenesis
p.102

Synthesis and SEM Analysis of Ketoprofen-Hidroxipropil-β-Cyclodextrin Microparticles for Medical Applications as Drug-Release System with a High Bioavailability
p.106

Model Research of Supercritical CO₂ Extraction Tillering Onion Essential Oil Based on Differential Mass Conservation Equation and BP Neural Network
p.111

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vols. 325-326Process Practice of Refining for Free Cutting...

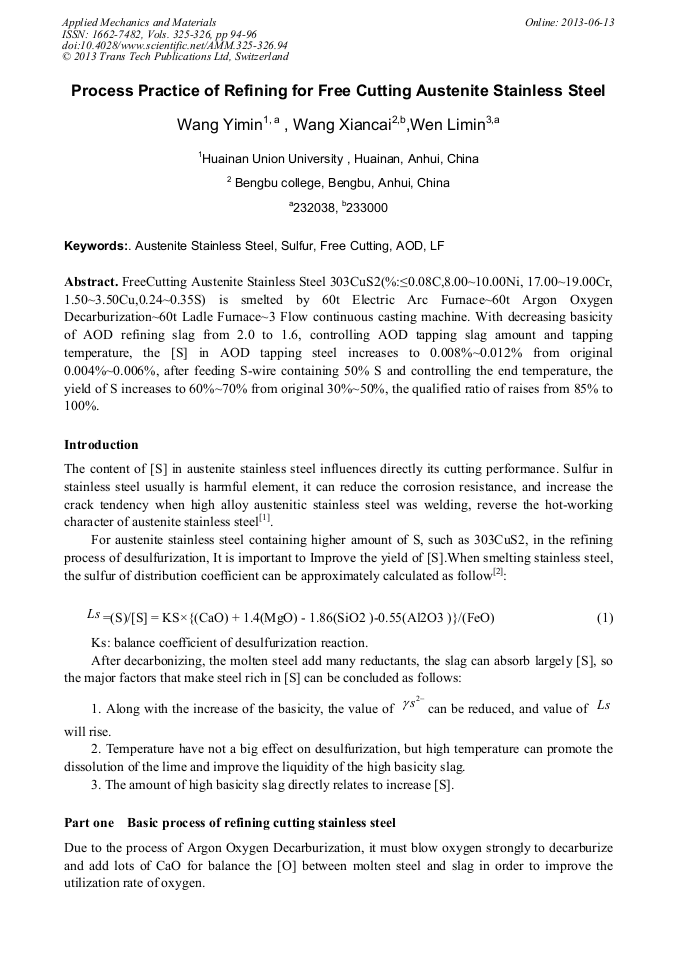

Process Practice of Refining for Free Cutting Austenite Stainless Steel

Abstract:

FreeCutting Austenite Stainless Steel 303CuS2(%:≤0.08C,8.00~10.00Ni, 17.00~19.00Cr, 1.50~3.50Cu,0.24~0.35S) is smelted by 60t Electric Arc Furnace~60t Argon Oxygen Decarburization~60t Ladle Furnace~3 Flow continuous casting machine. With decreasing basicity of AOD refining slag from 2.0 to 1.6, controlling AOD tapping slag amount and tapping temperature, the [S] in AOD tapping steel increases to 0.008%~0.012% from original 0.004%~0.006%, after feeding S-wire containing 50% S and controlling the end temperature, the yield of S increases to 60%~70% from original 30%~50%, the qualified ratio of raises from 85% to 100%.

You might also be interested in these eBooks

Manufacturing Engineering and Process II

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 325-326)

Pages:

94-96

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.325-326.94

Citation:

Cite this paper

Online since:

June 2013

Authors:

Yi Min Wang, Xian Cai Wang, Li Min Wen

Keywords:

AOD, Austenite Stainless Steel, Free Cutting, LF, Sulfur

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Zhang Jian, Theory and Practice of Refining outside The Furnace. Beijing: Metallurgical Industry Press, (1999).

Google Scholar

[2] Liu Chengzhi and Song Qingshan, Improvement of AOD Refining Process for Stainless Steel. Special steel, 2004, 25(5): 47.

Google Scholar

[3] Sami G. Tantawi, Christopher D. Nantista, Valery A. Dolgashev,Chris Pearson, Janice Nelson, Keith Jobe, Jose Chan, Karen Fant, and Josef Frisch: "High-power multimode xbandrf pulse compression system for future linear colliders,"Physical Review Special Topics- Accelerator and Beams,no. 8, p.042002(19), (2005)

DOI: 10.1103/physrevstab.8.042002

Google Scholar
