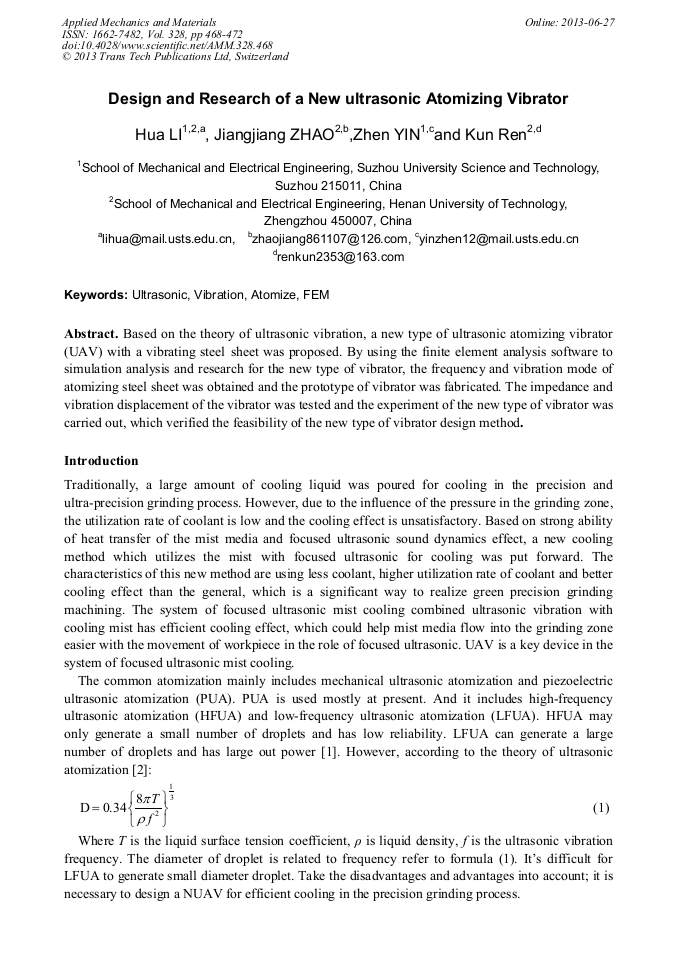

Design and Research of a New Ultrasonic Atomizing Vibrator

Abstract:

Based on the theory of ultrasonic vibration, a new type of ultrasonic atomizing vibrator (UAV) with a vibrating steel sheet was proposed. By using the finite element analysis software to simulation analysis and research for the new type of vibrator, the frequency and vibration mode of atomizing steel sheet was obtained and the prototype of vibrator was fabricated. The impedance and vibration displacement of the vibrator was tested and the experiment of the new type of vibrator was carried out, which verified the feasibility of the new type of vibrator design method.

• Periodical: Applied Mechanics and Materials (Volume 328)
• Pages: 468-472
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.328.468
• Online since: June 2013
• Authors: Hua Li, Jiang Jiang Zhao, Zhen Yin, Kun Ren
• Keywords: Atomize, Finite Element Method (FEM), Ultrasonic, Vibration

References

[1] Jianmin GAO, Yangbo LI: submitted to Journal of Jiangsu University (2009).

[2] N Feng: Ultrasonics Handbook (Nanjing University press, China 1999).

[3] Sm. Yuan, Zy. Zhou, Gh. Wang: submitted to Journal of Microelectonic Engineering (2003).

[4] S.C. Tsai, P. Luu, P. Childs, etc: submitted to Journal of Phys. Fluids (1997).

[5] Takuya Harada, Naoyuki Ishikawa, Takefumi Kanda: submitted to Journal of Sensors and Actuators (2009).

[6] Sy.Lin: submitted to Journal of Technical Acoustics (2006).

[7] Z.Yin, H.Li: submitted to Journal of Manufacturing Technology and Machine Tool (2010).

[8] Z.Yin, H.Li, Y. Li, O. Xie: submitted to Journal of Machinery Design &Manufacture (2010).

[9] Fg.Cao: Ultrasonic machining technology (Chemical press, China 2005).

[10] Gs.Chen: Design of ultrasonic transducer (Ocean press, China 1984).
