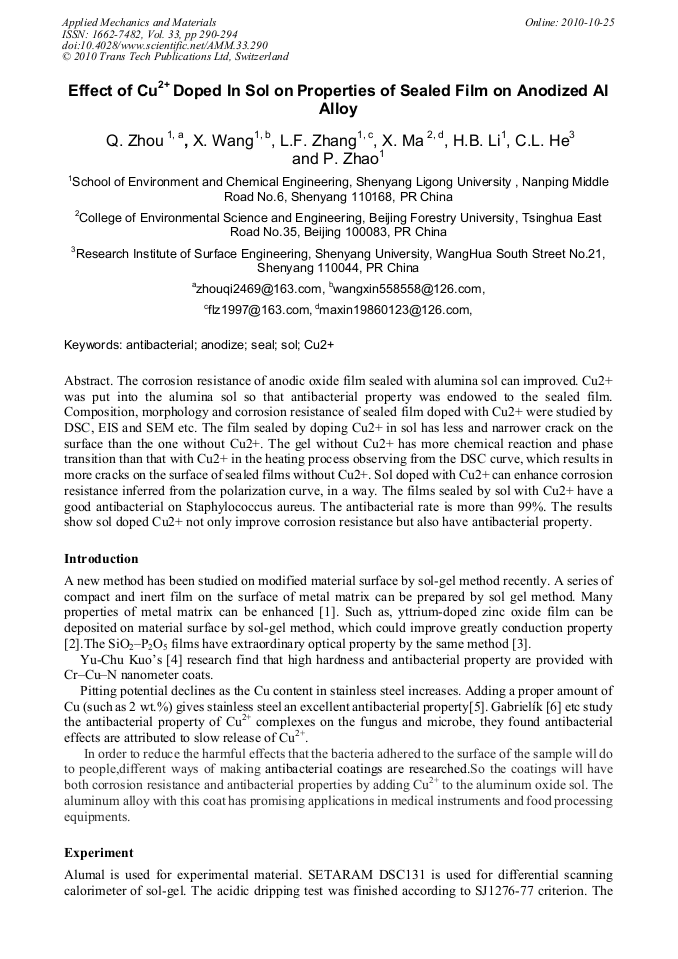

Effect of Cu²⁺ Doped in Sol on Properties of Sealed Film on Anodized Al Alloy

Abstract:

The corrosion resistance of anodic oxide film sealed with alumina sol can improved. Cu2+ was put into the alumina sol so that antibacterial property was endowed to the sealed film. Composition, morphology and corrosion resistance of sealed film doped with Cu2+ were studied by DSC, EIS and SEM etc. The film sealed by doping Cu2+ in sol has less and narrower crack on the surface than the one without Cu2+. The gel without Cu2+ has more chemical reaction and phase transition than that with Cu2+ in the heating process observing from the DSC curve, which results in more cracks on the surface of sealed films without Cu2+. Sol doped with Cu2+ can enhance corrosion resistance inferred from the polarization curve, in a way. The films sealed by sol with Cu2+ have a good antibacterial on Staphylococcus aureus. The antibacterial rate is more than 99%. The results show sol doped Cu2+ not only improve corrosion resistance but also have antibacterial property.

You might also be interested in these eBooks

Advances in Functional Manufacturing Technologies

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 33)

Pages:

290-294

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.33.290

Citation:

Cite this paper

Online since:

October 2010

Authors:

Qi Zhou, Xin Wang, Li Fang Zhang, Xin Ma, H.B. Li, C.L. He, P. Zhao

Keywords:

Anodize, Antibacterial, Cu²⁺, Seal, Sol

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J.H. Ge,Y.J. Wang Y.D. Zheng, and K.C. Gong: J. Mater. Sci. Eng., Vol. 22 (2004), pp.442-445.

Google Scholar

[2] Q.J. Yu, H.B. Yang, W.Y. Fu, L.X. Chang, J. Xu, C.L. Yu, R.H. Wei, K. Du, H.Y. Zhu and M.H. Li: Thin Solid Films Vol. 515 (2007), pp.3840-3843.

DOI: 10.1016/j.tsf.2006.10.077

Google Scholar

[3] I. Vasiliu, M. Gartner, M. Anastasescu, L. Todan, L. Predoana, M. Elisa, C. Negrila, F. Ungureanu, C. Logofatu, A. Moldovan and R. Birjega: Thin Solid Films Vol. 515 (2007), pp.6601-6605.

DOI: 10.1016/j.tsf.2006.11.106

Google Scholar

[4] Y.C. Kuo, J.W. Lee, C.J. Wang and Y.J. Chang: Surf. Coat. Technol. Vol. 202 (2007), pp.854-860.

Google Scholar

[5] I.T. Hong, C.H. Koo: Mater. Sci. and Eng., A Vol. 393 (2005), pp.213-222.

Google Scholar

[6] Gabrielík, Helena Bujdáková, Frantiekere: Chemosphere Vol. 44 (2001), pp.313-319.

Google Scholar

[7] F. He and X.D. He: J. Chin. CE. Soc. Vol. 35 (2007) , pp.638-642.

Google Scholar
