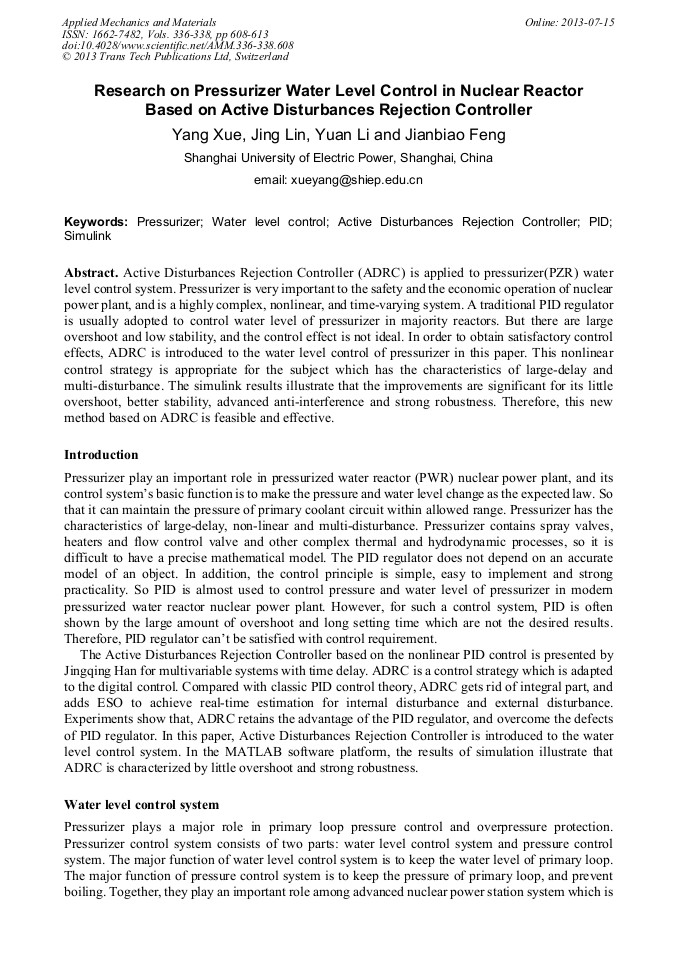

Research on Pressurizer Water Level Control in Nuclear Reactor Based on Active Disturbances Rejection Controller

Abstract:

Active Disturbances Rejection Controller (ADRC) is applied to pressurizer (PZR) water level control system. Pressurizer is very important to the safety and the economic operation of nuclear power plant, and is a highly complex, nonlinear, and time-varying system. A traditional PID regulator is usually adopted to control water level of pressurizer in majority reactors. But there are large overshoot and low stability, and the control effect is not ideal. In order to obtain satisfactory control effects, ADRC is introduced to the water level control of pressurizer in this paper. This nonlinear control strategy is appropriate for the subject which has the characteristics of large-delay and multi-disturbance. The simulink results illustrate that the improvements are significant for its little overshoot, better stability, advanced anti-interference and strong robustness. Therefore, this new method based on ADRC is feasible and effective.

• Periodical: Applied Mechanics and Materials (Volumes 336-338)
• Pages: 608-613
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.336-338.608
• Online since: July 2013
• Authors: Yang Xue, Jing Lin, Yuan Li, Jian Biao Feng
• Keywords: Active Disturbances Rejection Controller, PID, Pressurizer, Simulink, Water Level Control

References

[1] Jingqing Han, From PID to Active Disturbance Rejection Control, IEEE Transactions on Industrial Electronics. 56 (2009) 900-906.

DOI: 10.1109/tie.2008.2011621

[2] H. P. Huang, L. Q. Wu, J. Q. Han, G. Feng, and Y. J. Lin. A new synthesis method for Unit Coordinated Control System in Thermal Power Plant-ADRC Control Scheme. Proceedings of IEEE International Conference on Power System Technology-POWERCON 2004, November, Singapore: 1333-138.

DOI: 10.1109/icpst.2004.1459980

[3] Hong Chen, Jian Zeng, Guangjun Wang, Steam Generator Water Lever Control Based on Active Disturbances Rejection Control, Proceedings of the CSEE. 30 (2010) 103-107 (in Chinese).

[4] Ping Jiang, Jingyu Hao, Xiaoping Zong, Pei Guang, Modeling and Simulation of Active Disturbances Rejection Controller Based on Simulink, Control Theory and Applications. 29 (2010) 1-4 (in Chinese).

[5] Guoduo Zhang, Xuhong Yang, Dongqing Lu, Yongxiao Liu, Research on Water Level and Pressure Control System of Nuclear Reactor Regulator, Control and Instruments in Chemical Industry. 40 (2003) 35-38.
