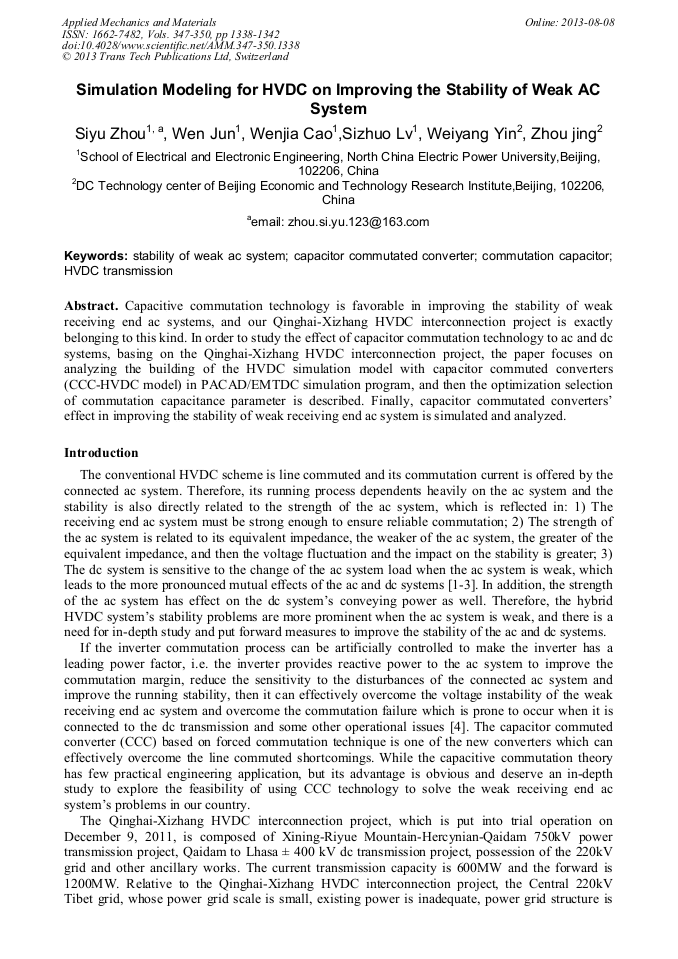

Simulation Modeling for HVDC on Improving the Stability of Weak AC System

Abstract:

Capacitive commutation technology is favorable in improving the stability of weak receiving end ac systems, and our Qinghai-Xizhang HVDC interconnection project is exactly belonging to this kind. In order to study the effect of capacitor commutation technology to ac and dc systems, basing on the Qinghai-Xizhang HVDC interconnection project, the paper focuses on analyzing the building of the HVDC simulation model with capacitor commuted converters (CCC-HVDC model) in PACAD/EMTDC simulation program, and then the optimization selection of commutation capacitance parameter is described. Finally, capacitor commutated converters effect in improving the stability of weak receiving end ac system is simulated and analyzed.

• Periodical: Applied Mechanics and Materials (Volumes 347-350)
• Pages: 1338-1342
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.347-350.1338
• Online since: August 2013
• Authors: Si Yu Zhou, Jun Wen, Wen Jia Cao, Si Zhuo Lv, Wei Yang Yin, Jing Zhou
• Keywords: Capacitor Commutated Converter, Commutation Capacitor, HVDC Transmission, Stability of Weak AC System

References

[1] M. Meisingset, A. M. Gole. Control of capacitor commutated converters in long cable HVDC-transmission[C]. 2001 IEEE Power Engineering Society Winter Meeting, 2001. 962-967.

DOI: 10.1109/pesw.2001.917003

[2] T. J. PE Bjorklund. Capacitor commutated converters for HVDC systems. ABB REVIEW, 1997. 25-33.

[3] M. Meisingset, A. M. Gole. A comparison of conventional and capacitor commutated converters based on steady-state and dynamic considerations. Seventh International Conference on AC and DC Power Transmission, 2001. 49-54.

DOI: 10.1049/cp:20010517

[4] Holmberg P, Jonsson T, Lagerkvist. Properties of capacitor commutated converters in long HVDC cable transmission [M]. . EPEA Trondheim, Norway, (1997).

[5] Stoltz, M. Bahrman, M. Dickinson, D. Abrahamson. The Rapid City DC Tie [M]. ABB: http/: www. abb. com, 2006 03 (01) 476–479.

[6] WEN Jun, WANG Jun, Liying WANG, YIN Wei-yang, LIU Bao-hong. Evaluation of Capacitor Commutated Converter HVDC for Qinghai-Xizhang Interconnection Project. The Institution of Engineering and Technology Conference on AC and DC Power Transmission (ACDC 2010), 20 – 21 October 2010, | London, UK.

DOI: 10.1049/cp.2010.1000

[7] Wang Li-ying. Comparing Research on HVDC Transmission Systems with the Capacitor Commutated Converters [D]. North China Electric Power University (Beijing), (2009).

[8] Yang Fen-yan, Xu Zheng. Study on Capacitor Commutated Converter Applied in HVDC Projects [J]. Proceeding of the CSEE, 2008 (07) 476–479.
