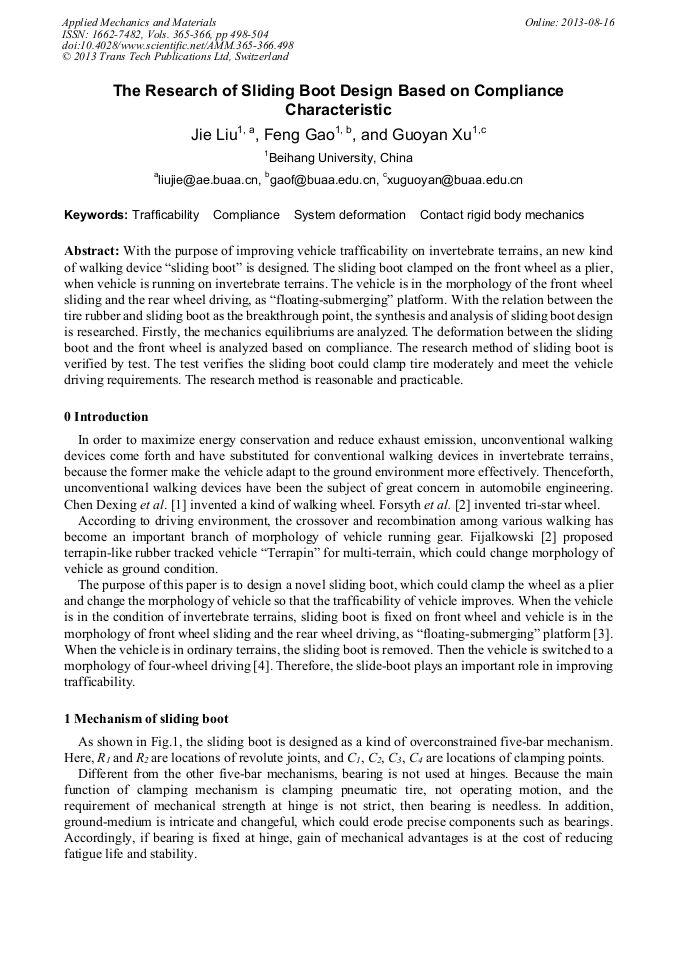

The Research of Sliding Boot Design Based on Compliance Characteristic

Abstract:

With the purpose of improving vehicle trafficability on invertebrate terrains, an new kind of walking device sliding boot is designed. The sliding boot clamped on the front wheel as a plier, when vehicle is running on invertebrate terrains. The vehicle is in the morphology of the front wheel sliding and the rear wheel driving, as floating-submerging platform. With the relation between the tire rubber and sliding boot as the breakthrough point, the synthesis and analysis of sliding boot design is researched. Firstly, the mechanics equilibriums are analyzed. The deformation between the sliding boot and the front wheel is analyzed based on compliance. The research method of sliding boot is verified by test. The test verifies the sliding boot could clamp tire moderately and meet the vehicle driving requirements. The research method is reasonable and practicable.

• Periodical: Applied Mechanics and Materials (Volumes 365-366)
• Pages: 498-504
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.365-366.498
• Online since: August 2013
• Authors: Jie Liu, Feng Gao, Guo Yan Xu
• Keywords: Compliance, Contact Rigid Body Mechanics, System Deformation, Trafficability

References

[1] D. X. Chen, W.Z. Yang, Li Q. Walking wheel- a new kind of running machine. Nonferrous Metals. 46(1994)7-11.

[2] B. C. Chen. Morphology of vehicle running gear & theory of reducing adhesion and scouring soil[ China machine press, Beijing, (2001).

[3] J. Liu , F. Gao, G. Y. Xu., N. G. Ding. Review and developing tendency of sliding unconventional walking. Journal of Mechanical Engineering. 48( 2012) 73-86.

DOI: 10.3901/jme.2012.24.073

[4] J. Song, K. Boo. Performance evaluation of traction control systems using a vehicle dynamic model. Proceedings of the Institution of Mechanical Engineers, Part D: Journal of Automobile Engineering. 218 (2004) 685-696.

DOI: 10.1243/0954407041580094

[5] S. L. Zhou, H. J. Zou, Y. A. Yao, W. Z. Guo. Analysis of types of hybrid input five-bar mechanism. Journal of shanghai jiaotong university. 35( 2001) 1045-1048.

[6] M. Y. Wang. Mechanical and geometric advantages in compliant mechanism optimization. Front. Mech. Eng. China. 4(2009) 229-241.

[7] H. Y. Deng, S. N. Melkote. Determination of minimum clamping forces for dynamically stable fixturing. International Journal of Machine Tools & Manufacture. (2006) 847-857.

DOI: 10.1016/j.ijmachtools.2005.07.040

[8] K. L. Johnson. Contact Mechanics, Cambridge University Press, U.K., (1985).

[9] A. N. Gent. Engineering with Rubber, Hanser Gradner Publication, Munich, (2001).
