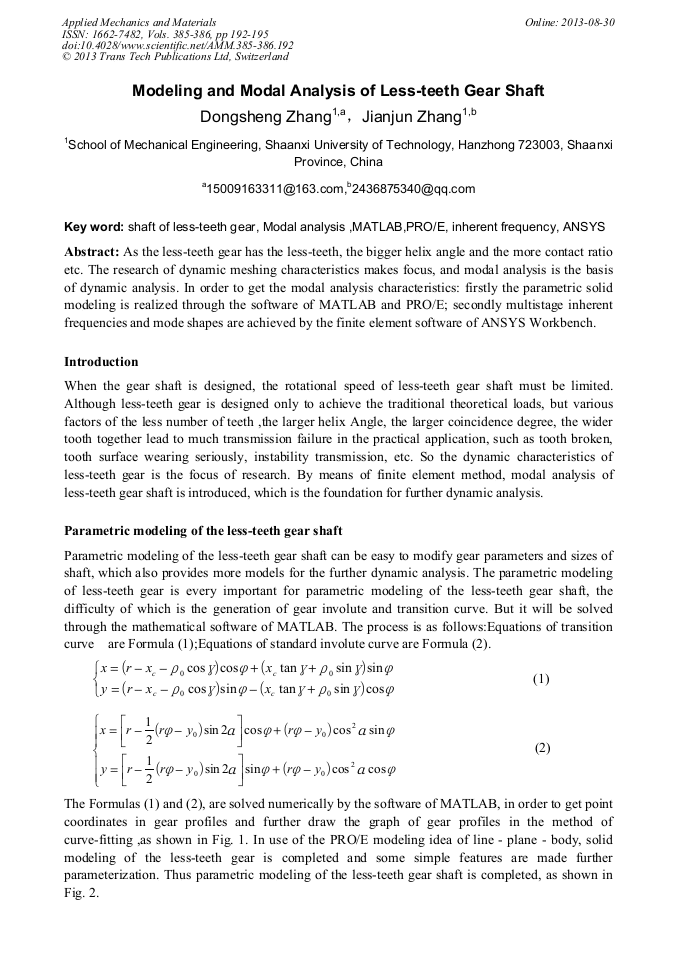

Modeling and Modal Analysis of Less-Teeth Gear Shaft

Abstract:

As the less-teeth gear has the less-teeth, the bigger helix angle and the more contact ratio etc. The research of dynamic meshing characteristics makes focus, and modal analysis is the basis of dynamic analysis. In order to get the modal analysis characteristics: firstly the parametric solid modeling is realized through the software of MATLAB and PRO/E; secondly multistage inherent frequencies and mode shapes are achieved by the finite element software of ANSYS Workbench.

• Periodical: Applied Mechanics and Materials (Volumes 385-386)
• Pages: 192-195
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.385-386.192
• Online since: August 2013
• Authors: Dong Sheng Zhang, Jian Jun Zhang
• Keywords: ANSYS, Inherent Frequency, MATLAB, Modal Analysis, Pro/E, Shaft of Less-Teeth Gear
