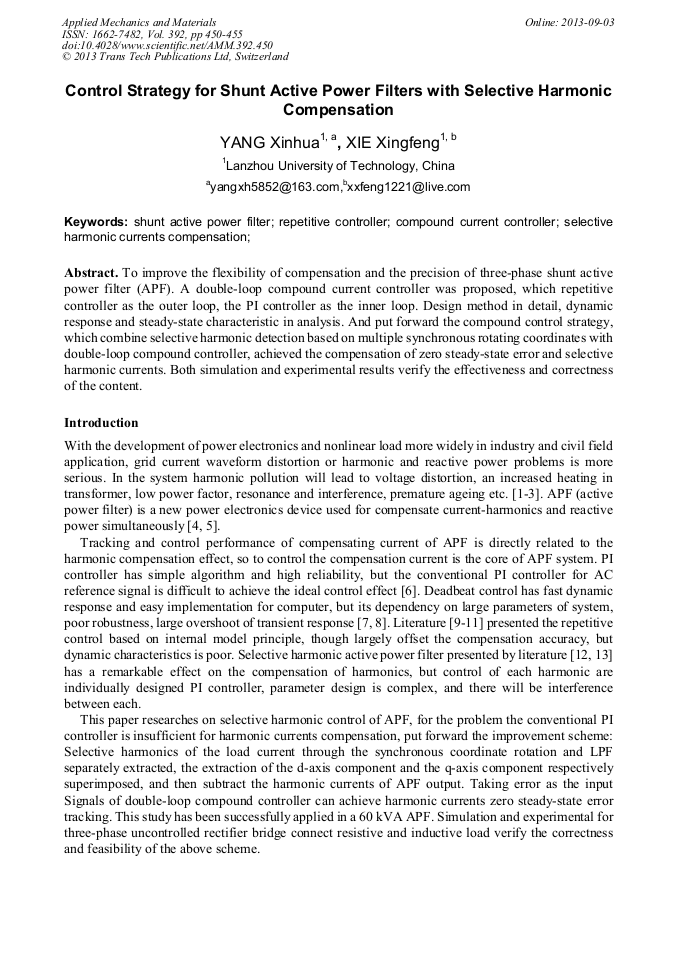

Control Strategy for Shunt Active Power Filters with Selective Harmonic Compensation

Abstract:

To improve the flexibility of compensation and the precision of three-phase shunt active power filter (APF). A double-loop compound current controller was proposed, which repetitive controller as the outer loop, the PI controller as the inner loop. Design method in detail, dynamic response and steady-state characteristic in analysis. And put forward the compound control strategy, which combine selective harmonic detection based on multiple synchronous rotating coordinates with double-loop compound controller, achieved the compensation of zero steady-state error and selective harmonic currents. Both simulation and experimental results verify the effectiveness and correctness of the content.

• Periodical: Applied Mechanics and Materials (Volume 392)
• Pages: 450-455
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.392.450
• Online since: September 2013
• Authors: Xin Hua Yang, Xing Feng Xie
• Keywords: Compound Current Controller, Repetitive Controller, Selective Harmonic Currents Compensation, Shunt Active Power Filter

References

[1] Asiminoaei L, Rodriguez P, Blaabjerg F. Application of discontinuous PWM modulation in active power filters [J]. IEEE Trans. on Power Electronics, 2008, 23 (4): 1692-1706.

DOI: 10.1109/tpel.2008.924599

[2] Verma V, Singh B. Design and implementation of a current-controlled parallel hybrid power filter [J]. IEEE Trans. on Industry Applications, 2009, 45 (5): 1910-1917.

DOI: 10.1109/tia.2009.2027183

[3] Bojoi R I, Griva G, Bostan V, et al. Current control strategy for power conditioners using sinusoidal signal integrators in synchronous reference frame [J] . IEEE Trans. on Power Electronics, 2005, 20 (6): 402-1412.

DOI: 10.1109/tpel.2005.857558

[4] Wang Zhaoan, Yang Jun, Liu Jinjun. Harmonic reduction and compensation for reactive power [M]. Beijing: China Machine Press, 1998: 245-310(in Chinese).

[5] Chen Jian. Power Electronics [M]. Beijing: Higher Education Press, 2002: 350-377(in Chinese).

[6] Tang Xin, Luo An, Tu Chunming. Recursive integral PI for current control of hybrid active power filter [J]. Proceedings of the CSEE, 2003, 23(10): 38-41.

[7] Mohammad Sedighy, Shashi B Dewan, Francis P Dawson. A robust digital current control method for active power filters [J]. IEEE Trans. on Industry Applications, 2000, 36(4): 1158-1164.

DOI: 10.1109/28.855974

[8] Shin-ichi Hamasaki, Atsuo Kawamura. Improvement of current regulation of line-current-detection-type active filter based on deadbeat control [J]. IEEE Trans. on Industry Applications, 2003, 39(2): 536-541.

DOI: 10.1109/tia.2003.808956

[9] Wei Xueliang, Dai Ke, Fang Xin, et al. Performance analysis and improvement of output for three phase shunt active power filter [J]. Proceedings of the CSEE, 2007, 27 (28): 113-119(in Chinese).

[10] Wei Xueliang, Dai Ke, Fang Xin, et al. Performance analysis and improvement of output current controller for three-phase shunt active power filter[C]．IECON'06, Paris, France, 2006.

DOI: 10.1109/iecon.2006.347874

[11] Wei Xueliang, Dai Ke, Xie Bin, et a1．Control scheme for three-phase three-wire shunt active power filter with unbalanced loads [J]．Proceedings of the CSEE, 2008, 28(24): 64-69(in Chinese).

DOI: 10.1109/icit.2008.4608355

[12] ZHANG Shu-quan, DAI Ke, XIE Bin, et al． Selective Harmonic currents Control Based on Multiple Synchronous Rotating Coordinates [J]. Proceedings of the CSEE, 2010, 30 (3): 55-62(in Chinese).

[13] LiGang. Study on Harmonic Compensation for Designated Times for Active Power Filter System [J]. Building Electricity, 2012, 31 (3): 41-46(in Chinese).

[14] Lascu C, Asiminoaei L, Boldea I, et al. High performance current controller for selective harmonic compensation in active power filters [J]. IEEE Trans. On Power Electronics, 2007, 22 (5): 1826-1835.

DOI: 10.1109/tpel.2007.904060
