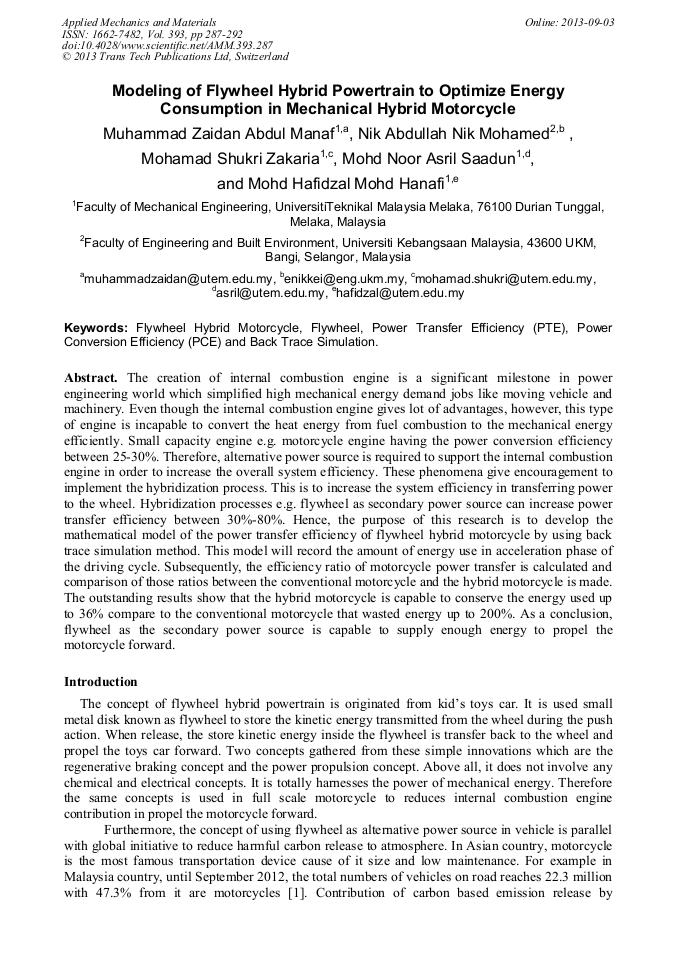

Modeling of Flywheel Hybrid Powertrain to Optimize Energy Consumption in Mechanical Hybrid Motorcycle

Abstract:

The creation of internal combustion engine is a significant milestone in power engineering world which simplified high mechanical energy demand jobs like moving vehicle and machinery. Even though the internal combustion engine gives lot of advantages, however, this type of engine is incapable to convert the heat energy from fuel combustion to the mechanical energy efficiently. Small capacity engine e.g. motorcycle engine having the power conversion efficiency between 25-30%. Therefore, alternative power source is required to support the internal combustion engine in order to increase the overall system efficiency. These phenomena give encouragement to implement the hybridization process. This is to increase the system efficiency in transferring power to the wheel. Hybridization processes e.g. flywheel as secondary power source can increase power transfer efficiency between 30%-80%. Hence, the purpose of this research is to develop the mathematical model of the power transfer efficiency of flywheel hybrid motorcycle by using back trace simulation method. This model will record the amount of energy use in acceleration phase of the driving cycle. Subsequently, the efficiency ratio of motorcycle power transfer is calculated and comparison of those ratios between the conventional motorcycle and the hybrid motorcycle is made. The outstanding results show that the hybrid motorcycle is capable to conserve the energy used up to 36% compare to the conventional motorcycle that wasted energy up to 200%. As a conclusion, flywheel as the secondary power source is capable to supply enough energy to propel the motorcycle forward.

• Periodical: Applied Mechanics and Materials (Volume 393)
• Pages: 287-292
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.393.287
• Online since: September 2013
• Authors: Muhammad Zaidan Abdul Manaf, Nik Abdullah Nik Mohamed, Mohamad Shukri Zakaria, Mohd Noor Asril Saadun, Mohd Hafidzal Mohd Hanafi
• Keywords: Back Trace Simulation, Flywheel, Flywheel Hybrid Motorcycle, Power Conversion Efficiency (PCE), Power Transfer Efficiency (PTE)

References

[1] Information on Kementerian Pengangkutan Malaysia, Jadual 1. 2: Jumlah Terkumpul Kenderaan Bermotor Mengikut Jenis dan Negeri di Malaysia, Sehingga 30 September 2012, http: /www. mot. gov. my/my/Statistics/Pages/Land. aspx, retrieve on 21 February (2013).

[2] Information on Carbon Footprint Ltd, Motorbike Carbon Footprint Calculator", http: /calculator. carbonfootprint. com/calculator. aspx, tab=5, retrieve on 20 February (2013).

DOI: 10.1002/rem.20190

[3] Saurabh Mahapatra, Tom egel, Raahul Hassan, Rohit Shenoy, Micheal Carone, Model-Based Design for Hybrid Electric Vehicle Systems, The Mathworks Inc, (2008).

DOI: 10.4271/2008-01-0085

[4] Jeongwoo Lee, Vehicle Inertia Impact on Fuel Consumption of Conventional and Hybrid Electric Vehicles Using Acceleration and Coast Driving Strategy, PhD Thesis, Virginia Polythechnic Institute and State University, (2009).

DOI: 10.4271/2009-01-1322

[5] Muhammad Zaidan Abdul Manaf, Pemodelan Motosikal Hibrid Roda Tenaga Untuk Mengoptimumkan Penggunaan Tenaga, Laporan Sarjana Kejuruteraan Mekanik, Universiti Kebangsaan Malaysia, (2012).

[6] Reza N. Jazar, Vehicle Dynamics: Theory and Application, Springer, (2009).

[7] Gustaf Lagunoff, Automotive Hybrid Technology: Status, Function and Development Tools, Master Thesis, Lulea University of Technology, (2008).

[8] Mehmet Ali Arslan, Flywheel Geometry Design for Improved Energy Storage using Finite Element Analysis, Science Direct: Materials and Design, (2008).

DOI: 10.1016/j.matdes.2007.01.020
