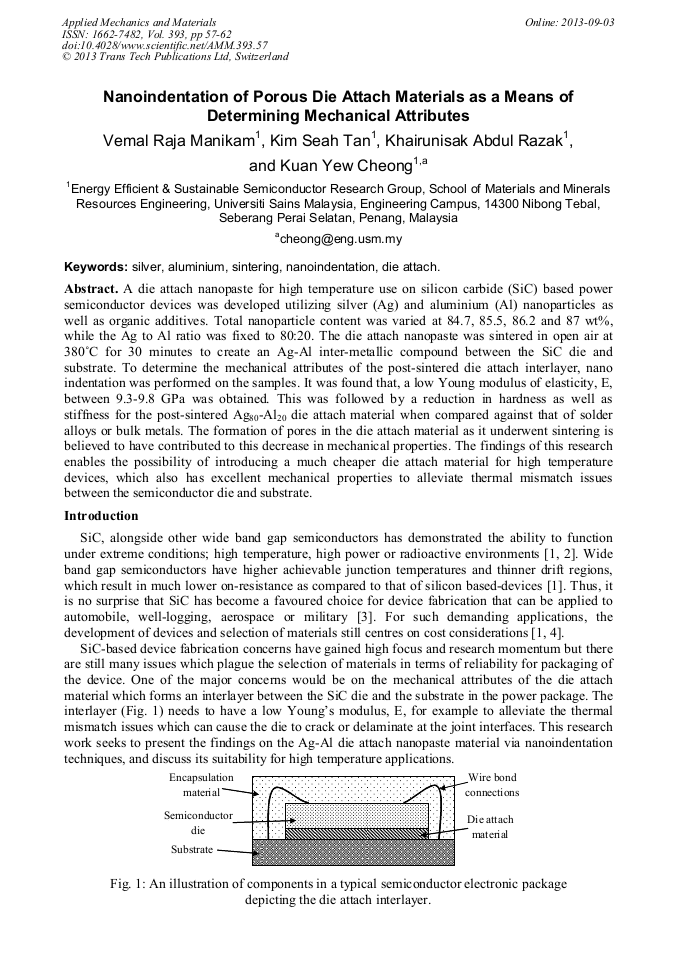

Nanoindentation of Porous Die Attach Materials as a Means of Determining Mechanical Attributes

Abstract:

A die attach nanopaste for high temperature use on silicon carbide (SiC) based power semiconductor devices was developed utilizing silver (Ag) and aluminium (Al) nanoparticles as well as organic additives. Total nanoparticle content was varied at 84.7, 85.5, 86.2 and 87 wt%, while the Ag to Al ratio was fixed to 80:20. The die attach nanopaste was sintered in open air at 380 °C for 30 minutes to create an Ag-Al inter-metallic compound between the SiC die and substrate. To determine the mechanical attributes of the post-sintered die attach interlayer, nanoindentation was performed on the samples. It was found that, a low Young modulus of elasticity, E, between 9.3-9.8 GPa was obtained. This was followed by a reduction in hardness as well as stiffness for the post-sintered Ag₈₀-Al₂₀ die attach material when compared against that of solder alloys or bulk metals. The formation of pores in the die attach material as it underwent sintering is believed to have contributed to this decrease in mechanical properties. The findings of this research enables the possibility of introducing a much cheaper die attach material for high temperature devices, which also has excellent mechanical properties to alleviate thermal mismatch issues between the semiconductor die and substrate.

• Periodical: Applied Mechanics and Materials (Volume 393)
• Pages: 57-62
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.393.57
• Online since: September 2013
• Authors: Vemal Raja Manikam, Kim Seah Tan, Khairunisak Abdul Razak, Kuan Yew Cheong
• Keywords: Aluminum (Al), Die Attach, Nanoindentation, Silver, Sintering

References

[1] P.G., Neudeck, Progress towards high temperature, high power SiC devices, Int. Phys. Conf. Series 141: Cmpd. Semicon (1991) 1-6.

[2] H.S. Chin, K.Y. Cheong, A.B. Ismail, A Review on Die Attach Materials for SiC-Based High-Temperature Power Devices, Metal. Mater. Trans. B 41, (2011) 824-832.

DOI: 10.1007/s11663-010-9365-5

[3] V.R. Manikam, K.Y. Cheong, Die Attach Materials for High Temperature Applications: A Review. IEEE Transac. Comp. Packag. Technol. 1, (2011) 457-478.

DOI: 10.1109/tcpmt.2010.2100432

[4] M.R. Werner, W.R. Fahrner, Review on Materials, Microsensors, Systems, and Devices for High-Temperature and Harsh-Environment Applications, IEEE Transac. Ind. Electron. 48 (2001) 249-257.

DOI: 10.1109/41.915402

[5] W.C. Oliver, G.M. Pharr, Improved technique for determining hardness and elastic modulus using load and displacement sensing indentation experiments, J. Mater. Res. 7 (1992) 1564-1583.

DOI: 10.1557/jmr.1992.1564

[6] Y.D. Han, H.Y. Jing, S.M.L. Nai, L.Y. Xu, C.M. Tan, J. Wei, Temperature Dependence of Creep and Hardness of Sn-Ag-Cu Lead-Free Solder, J. Electron. Mater. 39 (2010) 223-229.

DOI: 10.1007/s11664-009-0970-5

[7] H. Alemohammad, O. Aminfar, E. Toyserkani, Morphology and microstructure analysis of nano-silver thin films deposited by laser-assisted maskless microdeposition, J. Micromech. Microeng. 18 (2008) 115015-110527.

DOI: 10.1088/0960-1317/18/11/115015

[8] T. Juliano, V. Domnich, Y. Gogotsi, Examining pressure-induced phase transformations in silicon by spherical indentation and Raman spectroscopy: A statistical study, J. Mater. Res. 19 (2004) 3099-3108.

DOI: 10.1557/jmr.2004.0403

[9] K.S. Siow, Mechanical properties of nano-silver joints as die attach materials, J. Alloy Cmpds. 514 (2012) 6-19.

[10] J.G. Bai, J.G., Z.Z. Zhang, Z.Z., J.N. Calata, J.N., G.Q. Lu, Low-temperature sintered nanoscale silver as a novel semiconductor device-metallized substrate interconnect material, IEEE Transac. Comp. Packag. Technol. 29 (2006) 583-593.

DOI: 10.1109/tcapt.2005.853167

[11] V.R. Manikam, K.A. Razak, K.Y. Cheong, Physical and electrical attributes of sintered Ag80–Al20 high temperature die attach material with different organic additives content, J. Mater. Sci: Mater. Electron. (2012) DOI: 10. 1007/s10854-012-0801-y.

DOI: 10.1007/s10854-012-0801-y

[12] V.R. Manikam, K.A. Razak, K.Y. Cheong, Sintering of silver-aluminium nanopaste with varying aluminium weight percent for use as a high temperature die attach material, IEEE Transac. Comp. Packag. Manuf. Technol. (2012).

DOI: 10.1109/tcpmt.2012.2209425
