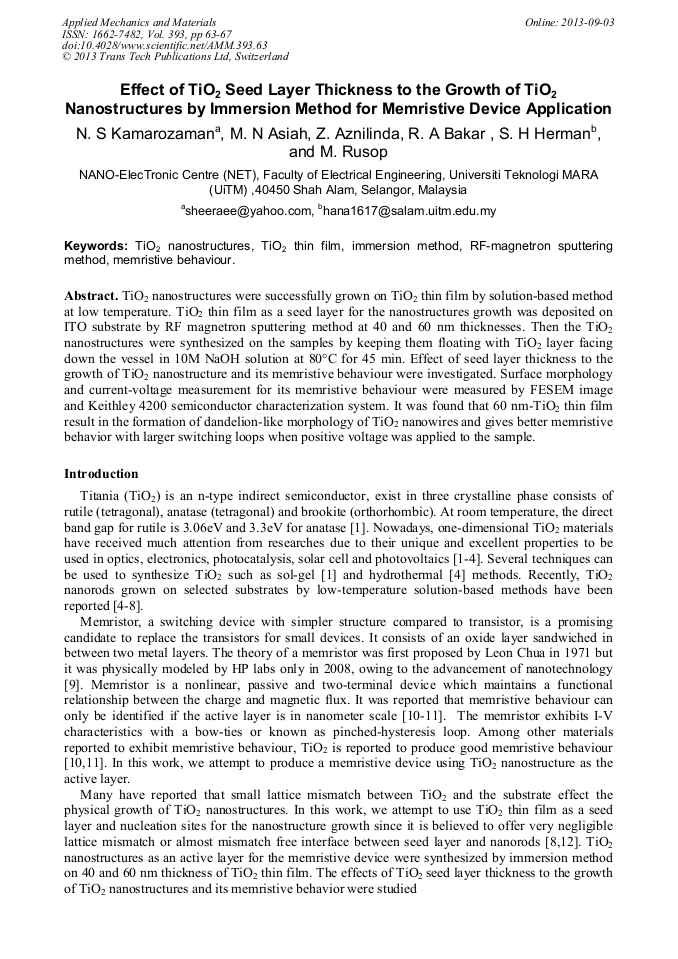

Effect of TiO₂ Seed Layer Thickness to the Growth of TiO₂ Nanostructures by Immersion Method for Memristive Device Application

Abstract:

TiO₂ nanostructures were successfully grown on TiO₂ thin film by solution-based method at low temperature. TiO₂ thin film as a seed layer for the nanostructures growth was deposited on ITO substrate by RF magnetron sputtering method at 40 and 60 nm thicknesses. Then the TiO₂ nanostructures were synthesized on the samples by keeping them floating with TiO₂ layer facing down the vessel in 10M NaOH solution at 80°C for 45 min. Effect of seed layer thickness to the growth of TiO₂ nanostructure and its memristive behaviour were investigated. Surface morphology and current-voltage measurement for its memristive behaviour were measured by FESEM image and Keithley 4200 semiconductor characterization system. It was found that 60 nm-TiO₂ thin film result in the formation of dandelion-like morphology of TiO₂ nanowires and gives better memristive behavior with larger switching loops when positive voltage was applied to the sample.

• Periodical: Applied Mechanics and Materials (Volume 393)
• Pages: 63-67
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.393.63
• Online since: September 2013
• Authors: Nur Syahirah Kamarozaman, Mohd Nor Asiah, Z. Aznilinda, Raudah Abu Bakar, Sukreen Hana Herman, M. Rusop
• Keywords: Immersion Method, Memristive Behavior, RF Magnetron Sputtering Method, TiO₂ Nanostructures, TiO₂ Thin Film

References

[1] M. Hemissi, H. Amardjia-Adnani, Optical and Structural Properties of Titanium Oxide Thin Films Prepared by Sol-gel Method, Digest J. of Nanomaterials and Biostructures, 2 (2007) 299-305.

[2] F. Wakaya, T. Nakatani, S. Abo, M. Takai, Fabrication of titanium-oxide nanostructures on glass substrate and field-emission properties, 24th Int. Vacuum Nanoelectronics Conf. (IVNC) (2011) 43-44.

DOI: 10.1109/ivnc.2013.6624723

[3] A. G. Agrios and P. Pichat, State of the art and perspectives on materials and applications of photocatalysis over TiO2, J. Appl. Electrochem. 35 (2005), 655-663.

DOI: 10.1007/s10800-005-1627-6

[4] A. Kumar, A. R. Madaria, and C. Zhou, Growth of aligned single-crystalline rutile TiO2 nanowires on arbitrary substrates and their application in dye-sensitized solar cells, J. Phys. Chem. C. 114 (2010) 7787–7792.

DOI: 10.1021/jp100491h

[5] X. Feng, K. Shankar, O. K. Varghese, M. Paulose, T. J. Latempa and C. A. Grimes, Vertical aligned single crystal TiO2 nanowire arrays grown directly on transparent conducting oxide coated glass: Synthesis details and applications. Nano Lett. 8 (2008).

DOI: 10.1021/nl802096a

[6] Y. Han, G. Wu, M. Wang and H. Z. Chen, The growth of a c-axis highly oriented sandwiched TiO2 film with superhydrophilic properties without UV irradiation on Sn: F substrate. Nanotechnology 20 (2009)235605.

DOI: 10.1088/0957-4484/20/23/235605

[7] B. Liu and E.S. Aydil, Growth of oriented single-crystalline rutile TiO2 nanorods on transparent conducting substrates for dye-sensitized solar cells, J. Am. Chem. Soc. 131(2009)3985.

DOI: 10.1021/ja8078972

[8] H. -E. Wang, Z. Chen, Y. H. Leung, C. Luan, C. Liu, Y. Tang, C. Yan, W. Zhang, J. A. Zapien, I. Bello and S. –T. Lee, Hydrothermal synthesis of ordered single-crystalline rutile TiO2 nanorod arrays on different substrates. Appl. Phys. Lett. 96 (2010).

DOI: 10.1063/1.3442913

[9] D. B. Strukov, G. S. Sniker, D. R. Stewart and R. S. Williams, The missing memristor found, Nature, 453 (2008) 80-83.

DOI: 10.1038/nature06932

[10] R. S. Wiliams, How we found the missing memristor, IEEE Spectr., 45, (2008) 29-35.

[11] K. Miller, K. S. Nalwa, A. Bergerud, N. M. Neihart and S. Chaudhary, Memristive Behavior in Thin Anodic Titania, IEEE Electron Device Lett., 31(2010) 737-739.

DOI: 10.1109/led.2010.2049092

[12] M. Gao, Y. Li, M. Guo, M. Zhang, X. Wang, Effect of substrate pretreatment on controllable growth of TiO2 nanorod arrays, J. Mater. Sci. Technol., 2012, 28(7), 577-586.

DOI: 10.1016/s1005-0302(12)60101-7

[13] J L Tedesco, L Stephey, M Hern´andez-Mora, C A Richter and N Gergel-Hackett, Switching mechanisms in flexible solution-processed TiO2 memristors, Nanotechnology 23 (2012) 305206.

DOI: 10.1088/0957-4484/23/30/305206
