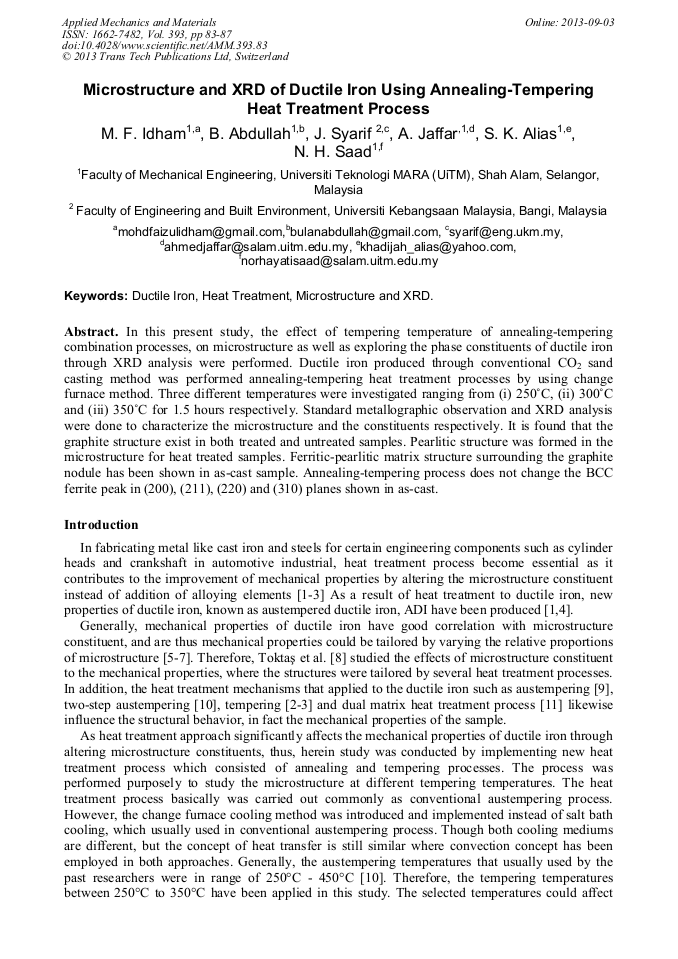

Microstructure and XRD of Ductile Iron Using Annealing-Tempering Heat Treatment Process

Abstract:

In this present study, the effect of tempering temperature of annealing-tempering combination processes, on microstructure as well as exploring the phase constituents of ductile iron through XRD analysis were performed. Ductile iron produced through conventional CO₂ sand casting method was performed annealing-tempering heat treatment processes by using change furnace method. Three different temperatures were investigated ranging from (i) 250 °C, (ii) 300 °C and (iii) 350 °C for 1.5 hours respectively. Standard metallographic observation and XRD analysis were done to characterize the microstructure and the constituents respectively. It is found that the graphite structure exist in both treated and untreated samples. Pearlitic structure was formed in the microstructure for heat treated samples. Ferritic-pearlitic matrix structure surrounding the graphite nodule has been shown in as-cast sample. Annealing-tempering process does not change the BCC ferrite peak in (200), (211), (220) and (310) planes shown in as-cast.

• Periodical: Applied Mechanics and Materials (Volume 393)
• Pages: 83-87
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.393.83
• Online since: September 2013
• Authors: M. F. Idham, B. Abdullah, Junaidi Syarif, Ahmed Jaffar, Siti Khadijah Alias, Nor Hayati Saad
• Keywords: Ductile Iron, Heat Treatment, Microstructure, X-Ray Diffraction (XRD)

References

[1] A. Refaey and N. Fatahalla, Effect of microstructure on properties of ADI and low alloyed ductile iron, Journal Of Materials Science. vol. 38(2003), p.351– 362. x x.

[2] B. Abdullah, A. Jaffar, S. K. Alias, A. Ramli, and M. F. Adham, Study of Microstructure, Mechanical Properties and Corrosion Rate of 0. 5% Cobalt Alloyed Austempered Ductile Iron, Proceedings of SPIE -The International Society for Optical Engineering. vol. 7522(2010).

DOI: 10.1109/icmet.2010.5598431

[3] M. F. Idham, B. Abdullah, A. Jaffar, M.H. Ibrahim, and A. Ramli, The effect of Mechanical Properties of 2. 0% Vanadium Ductile Iron after Double Quenching Method, Advanced Materials Research. vol. 399-401(2012), pp.172-175.

DOI: 10.4028/www.scientific.net/amr.399-401.172

[4] F. Y. Hung, L. H. Chen, and T. S. Lui, A study on erosion of upper bainitic ADI and PDI, Wear, vol. 260(2006), p.1003–1012.

DOI: 10.1016/j.wear.2005.06.003

[5] Serope Kalpakjian and Steven Schmid, Cast Irons, in Manufacturing Engineering Technology, Fifth Edition in SI Units. Singapore: Prentice Hall, 2006, pp.125-140.

[6] H. R. Abedi, A. Fareghi, H. Saghafian, and S.H. Kheirandish, Sliding wear behavior of a ferritic–pearlitic ductile cast iron with different nodule count, Wear, vol. 268 (2010), pp.622-628.

DOI: 10.1016/j.wear.2009.10.010

[7] R. A. Gonzaga, P. Martínez Landa, A. Perez, and P. Villanueva, Mechanical properties dependency of the pearlite content of ductile irons, Journal of Achievements in Materials and Manufacturing Engineering. vol. 33(2009), no. 2, pp.50-158.

[8] Gülcan Toktaş, Mustafa Tayanç, and Alaaddin Toktaş, Effect of matrix structure on the impact properties of an alloyed ductile iron, Materials Characterization. vol. 57(2006), p.290–299.

DOI: 10.1016/j.matchar.2006.02.008

[9] Olivera Eric, Milan Jovanovic, Leposava Sidanin, Dragan Rajnovic, and Slavica Zec, The austempering study of alloyed ductile iron, Materials and Design, vol. 27, p.617–622.

DOI: 10.1016/j.matdes.2004.11.028

[10] Yusuf Kayali, Sukru Taktak, Sinan Ulu, and Yilmaz Yalcin, Investigation of mechanical properties of boro-tempered ductile iron, Materials and Design , vol. 31(2010), pp.1799-1803.

DOI: 10.1016/j.matdes.2009.11.017

[11] Yusuf Sahin, Volkan Kilicli, Melika Ozer, and Mehmet Erdogan, Comparison of abrasive wear behavior of ductile iron with different dual matrix structures, Wear. vol. 268(2010), p.153–165.

DOI: 10.1016/j.wear.2009.07.008
