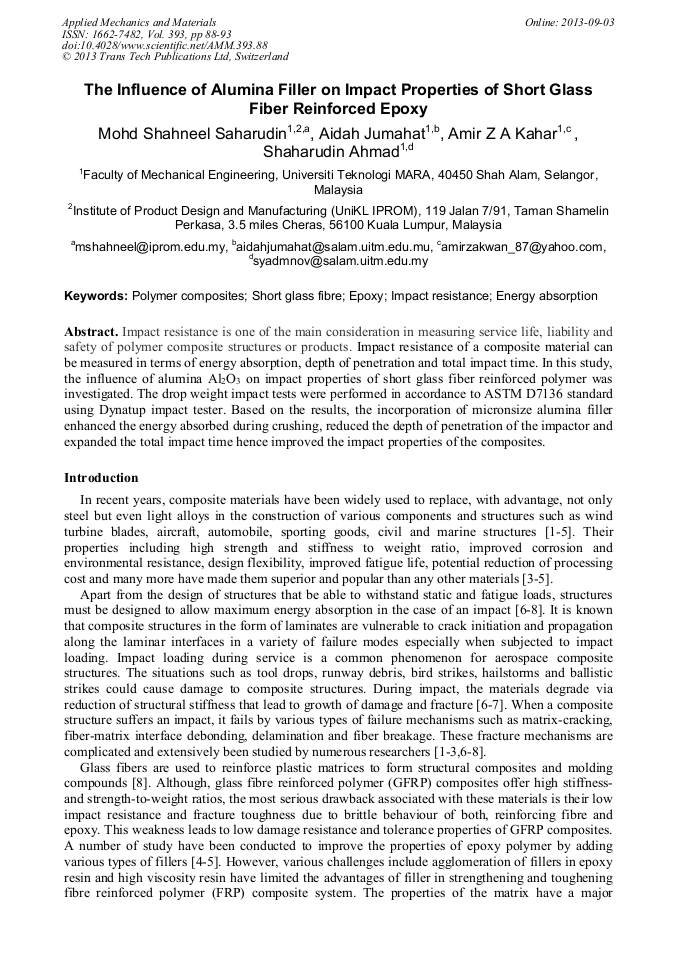

The Influence of Alumina Filler on Impact Properties of Short Glass Fiber Reinforced Epoxy

Abstract:

mpact resistance is one of the main consideration in measuring service life, liability and safety of polymer composite structures or products. Impact resistance of a composite material can be measured in terms of energy absorption, depth of penetration and total impact time. In this study, the influence of alumina Al₂O₃ on impact properties of short glass fiber reinforced polymer was investigated. The drop weight impact tests were performed in accordance to ASTM D7136 standard using Dynatup impact tester. Based on the results, the incorporation of micronsize alumina filler enhanced the energy absorbed during crushing, reduced the depth of penetration of the impactor and expanded the total impact time hence improved the impact properties of the composites.

• Periodical: Applied Mechanics and Materials (Volume 393)
• Pages: 88-93
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.393.88
• Online since: September 2013
• Authors: Mohd Shahneel Saharudin, Aidah Jumahat, Amir Z.A. Kahar, Shaharudin Ahmad
• Keywords: Energy Absorption, Epoxy, Impact Resistance, Polymer Composite, Short Glass Fibre

References

[1] G. Belingardi, R. Vadori, Low velocity impact tests of laminate glass-fiber-epoxy matrix composite material plates, International Journal of Impact Engineering 27 (2002) 213-229.

DOI: 10.1016/s0734-743x(01)00040-9

[2] S. Rahmanian, K.S. Thean, A.R. Suraya, M.A. Shazed, M.A. Mohd Salleh, H.M. Yusoff, Carbon and glass hierarchical fibers: Influence of carbon nanotubes on tensile, flexural and impact properties of short fiber reinforced composites, Materials & Design 43 (2013).

DOI: 10.1016/j.matdes.2012.06.025

[3] M. Aktaş, R. Karakuzu, Y. Arman, Compression-after impact behavior of laminated composite plates subjected to low velocity impact in high temperatures, Composite Structures 89 (2009) 77-82.

DOI: 10.1016/j.compstruct.2008.07.002

[4] A. Jumahat, C. Soutis, A. Hodzic, A graphical method predicting the compressive strength of toughened unidirectional composite laminates, Applied Composite Materials 18 (2011) 65-83.

DOI: 10.1007/s10443-010-9149-8

[5] A. Jumahat, C. Soutis, F.R. Jones, A. Hodzic, Improved compressive properties of a unidirectional CFRP laminate using nanosilica particles, Advanced Composites Letters 19 (2010) 204-207.

DOI: 10.1177/096369351001900604

[6] E.V. González, P. Maimí, P.P. Camanho, A. Turon, J.A. Mayugo, Simulation of drop-weight impact and compression after impact tests on composite laminates, Composite Structures 94 (2012) 3364-3378.

DOI: 10.1016/j.compstruct.2012.05.015

[7] A. Aktas, M. Aktas, F. Turan, The effect of stacking sequence on the impact and post-impact behavior of woven/knit fabric glass/epoxy hybrid composites, Composite Structures 103 (2013) 119-135.

DOI: 10.1016/j.compstruct.2013.02.004

[8] M.V. Hosur, K. Jain, F. Chowdhury, S. Jeelani, M.R. Bhat, C.R.L. Murthy, Low-velocity impact response of carbon/epoxy laminates subjected to cold–dry and cold–moist conditioning, Composite Structures 79 (2007) 300-311.

DOI: 10.1016/j.compstruct.2006.11.011
