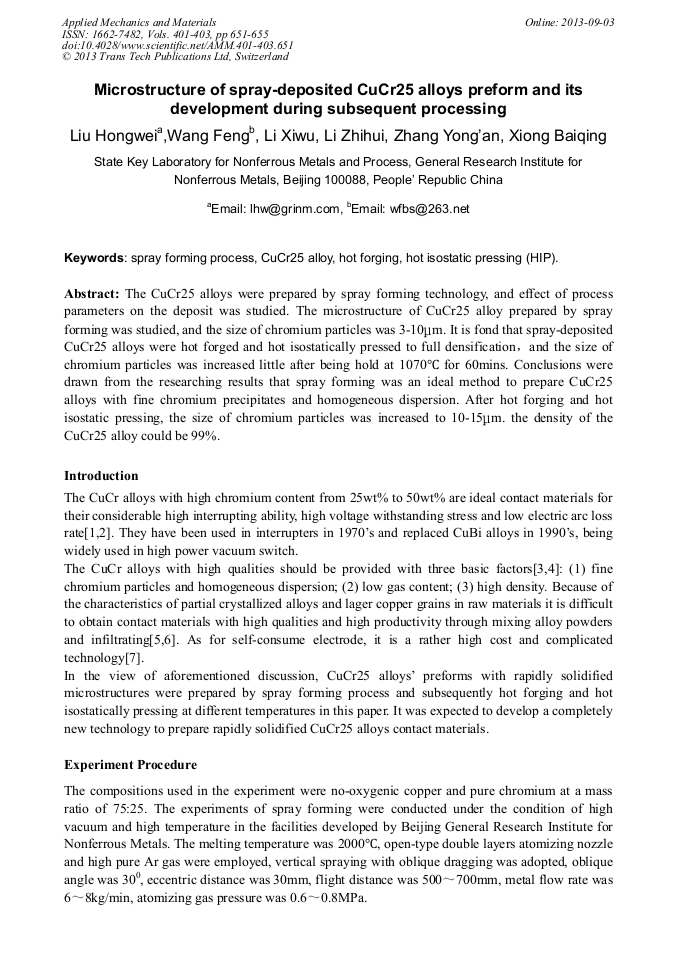

Microstructure of Spray-Deposited CuCr25 Alloys Preform and its Development during Subsequent Processing

Abstract:

The CuCr25 alloys were prepared by spray forming technology, and effect of process parameters on the deposit was studied. The microstructure of CuCr25 alloy prepared by spray forming was studied, and the size of chromium particles was 3-10μm. It is fond that spray-deposited CuCr25 alloys were hot forged and hot isostatically pressed to full densification,and the size of chromium particles was increased little after being hold at 1070°C for 60mins. Conclusions were drawn from the researching results that spray forming was an ideal method to prepare CuCr25 alloys with fine chromium precipitates and homogeneous dispersion. After hot forging and hot isostatic pressing, the size of chromium particles was increased to 10-15μm. the density of the CuCr25 alloy could be 99%.

• Periodical: Applied Mechanics and Materials (Volumes 401-403)
• Pages: 651-655
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.401-403.651
• Online since: September 2013
• Authors: Hong Wei Liu, Feng Wang, Xi Wu Li, Zhi Hui Li, Yong An Zhang, Bai Qing Xiong
• Keywords: CuCr25 Alloy, Hot Forging, Hot Isostatic Pressing (HIP), Spray Forming Process

References

[1] Slade P G. advances in materials development for high power vacuum interrupter contacts. IEEF Trans on CPMT, 17 (1994) 96~106.

[2] Xian Aiping, CuCr contact materials for high power vacuum interrupters. The Chinese Journal of Nonferrous Metals, 2001, 11(5): 731~740.

[3] Zhang Yongan, Xiong Baiqing, Liu Hongwei, Production and microstructure of CuCr50 alloy power. Chinese Journal of Rare Metals, 2002, 26(4): 245~248.

[4] Wang Yaping, Cui Jianguo, Ding Bingjun, Production of microcrystal CuCr alloy and electricity property. Journal of Xi'an Jiaotong University, 1997, 31(3): 76~91.

[5] Rieder W F, Schussek M, Giatzle W, et al. The influence of composition and Cr particle site of Cu-Cr contacts on chopping current, contact resistance, and breakdown voltage in vacuum interrupters[J]. IEEE Comp Hybrids Manu Technol, 1989, 12(2): 273-276.

DOI: 10.1109/33.31434

[6] Slade P G, Advances in material development for high power vacuum interrupter contacts [J]. IEEF Trans on CPMT, 1994, 17(1): 96-99.

[7] Xian Aiping, CuCr contact materials for high power vacuum interrupters, The Chinese Journal of Nonferrous Metals, 2001，11(5): 731-736.
