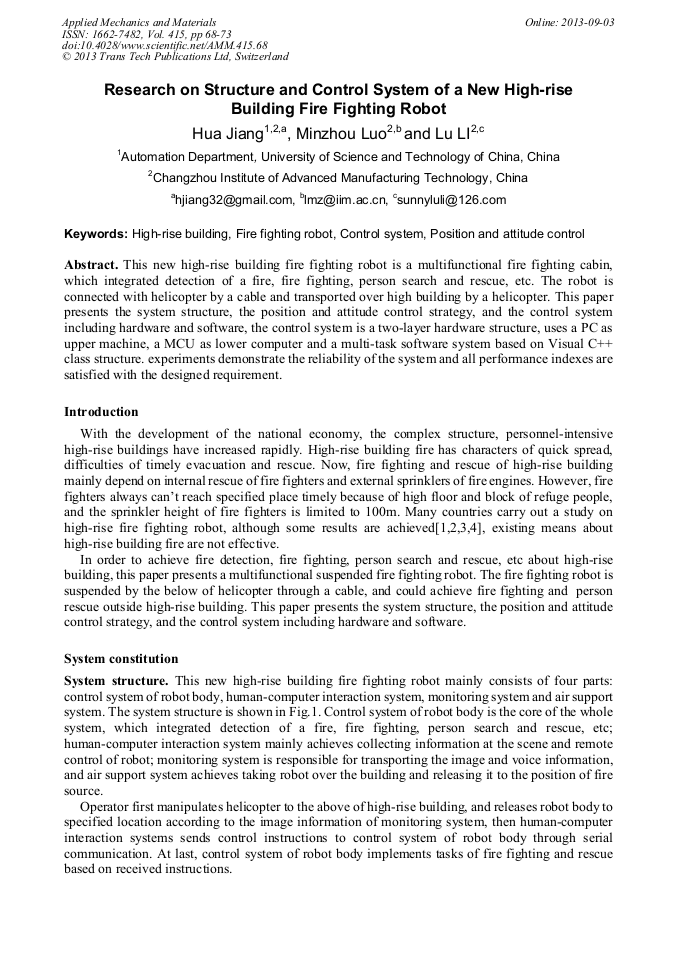

Research on Structure and Control System of a New High-Rise Building Fire Fighting Robot

Abstract:

This new high-rise building fire fighting robot is a multifunctional fire fighting cabin, which integrated detection of a fire, fire fighting, person search and rescue, etc. The robot is connected with helicopter by a cable and transported over high building by a helicopter. This paper presents the system structure, the position and attitude control strategy, and the control system including hardware and software, the control system is atwo-layer hardware structure, uses a PC as upper machine, a MCU as lower computer and a multi-task software system based on Visual C++ class structure. experiments demonstrate the reliability of the system and all performance indexes are satisfied with the designed requirement.

• Periodical: Applied Mechanics and Materials (Volume 415)
• Pages: 68-73
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.415.68
• Online since: September 2013
• Authors: Hua Jiang, Min Zhou Luo, Lu Li
• Keywords: Attitude Control, Control System, Fire Fighting Robot, High-Rise Building, Position Control

References

[1] Akira Nishi and Hiromori Miyagi, Control of a Wall-Climbing Robot Using Propulsive Force of Propeller, IEEE/RSJ Int. Workshop on Intelligent Robots and Systems, 1991, pp.1561-1567.

DOI: 10.1109/iros.1991.174735

[2] Akira Nishi, A Wall Climbing Robot Using Propulsive Force of propeller, Int. Conf. On Advanced Robotics, 1991, pp.320-325.

DOI: 10.1109/icar.1991.240633

[3] A. NISHI and H. MIYAGI, Mechanism and Control of Propeller Type Wall-Climbing Robot, IEEE/RSJ/GI Int. Conf. on Intelligent Robot and Systems, 1994, pp.1724-1729.

DOI: 10.1109/iros.1994.407625

[4] Hisanori Amano, Koichi Osuka, Tzyh-Jong Tarn, Development of Vertically Moving Robot with Gripping Handrails for Fire Fighting, IEEE/RSJ Int. Conf. on Intelligent Robots and Systems, 2001, pp.661-667.

DOI: 10.1109/iros.2001.976245
