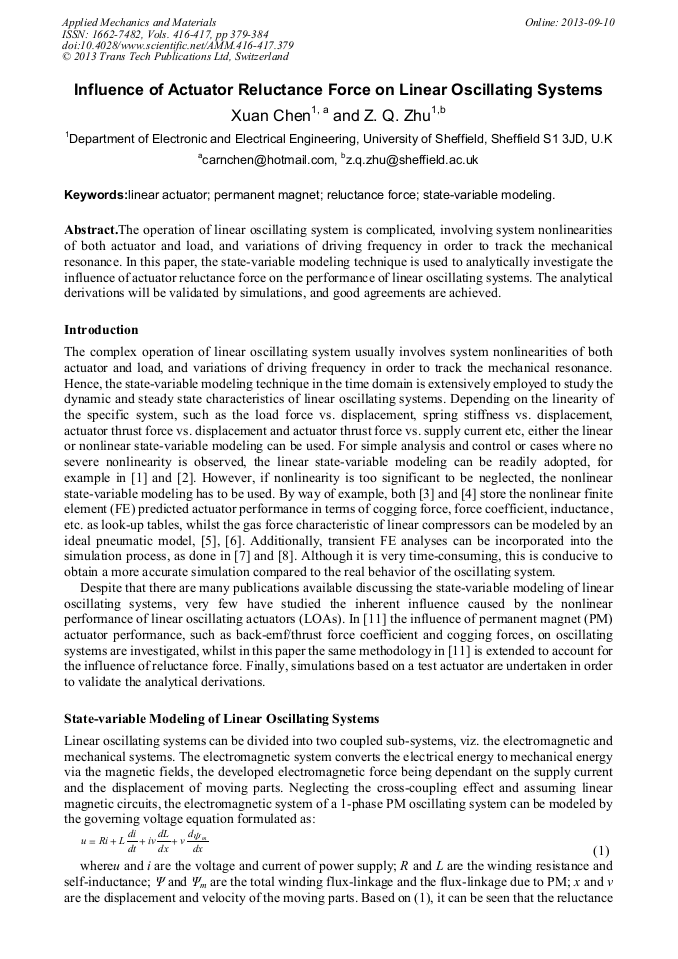

Influence of Actuator Reluctance Force on Linear Oscillating Systems

Abstract:

The operation of linear oscillating system is complicated, involving system nonlinearities of both actuator and load, and variations of driving frequency in order to track the mechanical resonance. In this paper, the state-variable modeling technique is used to analytically investigate the influence of actuator reluctance force on the performance of linear oscillating systems. The analytical derivations will be validated by simulations, and good agreements are achieved.

• Periodical: Applied Mechanics and Materials (Volumes 416-417)
• Pages: 379-384
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.416-417.379
• Online since: September 2013
• Authors: Xuan Chen, Z.Q. Zhu
• Keywords: Linear Actuator, Permanent Magnet, Reluctance Force, State-Variable Modeling

References

[1] T. W. Chun, J. R. Ahn, J. Y. Yoo, and C. W. Lee, Analysis and control for linear compressor system driven by PWM inverter, Proc. of the 30th annual conference of IEEE industrial electronics society, pp.263-267, Nov. (2004).

DOI: 10.1109/iecon.2004.1433320

[2] S.M. Jang, J.Y. Choi, D.J. You, and H.W. Cho, The influence of mechanical spring on the dynamic performance of a moving-magnet linear actuator with cylindrical Halbach array, " in Proceedings of the 40th IEEE Industry Applications Society Annual Meeting (IAS, 2005), pp.2132-2139.

DOI: 10.1109/ias.2005.1518742

[3] S. A. Evans, I.R. Smith, and J.G. Kettleborough, Permanent-magnet linear actuator for static and reciprocating short-stroke electromechanical systems, IEEE/ASME Transactions on Mechtronics, vol. 6, no. 1, pp.36-42, Mar. (2001).

DOI: 10.1109/3516.914389

[4] L. N. Tutelea, M. C. Kim, M. Topor, et al, Linear permanent magnet oscillatory machine: comprehensive modeling for transients with validation by experiments, IEEE Transactions on Industrial Electronics, vol. 55, no. 2, pp.492-500, (2008).

DOI: 10.1109/tie.2007.911936

[5] R.E. Clark, Resonant reciprocating actuation systems for air-compressors, Ph.D. Thesis, University of Sheffield, Jul. (1999).

[6] J. Wang, Z. Lin, and D. Howe, Characteristics of linear compressors under current source excitation, Proc. IMechE Part A: J. Power and Energy, vol. 221, pp.1057-1065, (2007).

DOI: 10.1243/09576509jpe423

[7] R. E. Clark, G. W. Jewell, and D. Howe, Dynamic modeling of tubular moving-magnet linear actuators, Journal of Applied Physics, vol. 93, no. 19, pp.8787-8789, (2003).

DOI: 10.1063/1.1544518

[8] B. Tomczuk, and M. Sobol, A field-network model of a linear oscillating motor and its dynamic characteristics, IEEE Transactions on Magnetics, vol. 41, no. 8, pp.2362-2367, (2005).

DOI: 10.1109/tmag.2005.852941

[9] M. Utsuno, M. Takai, T. Mizuno, and H. Yamada, Comparison of the losses of a moving-magnet type linear oscillatory actuator under two driving methods, IEEE Transactions on Magnetics, vol. 38, no. 5, pp.3300-3303, Sep. (2002).

DOI: 10.1109/tmag.2002.802291

[10] G. S. Choe and K. J. Kim, Analysis of non-linear dynamics in linear compressor, JSME International Journal Series C, vol. 43, no. 3, pp.545-552, (2000).

DOI: 10.1299/jsmec.43.545

[11] X. Chen, and Z.Q. Zhu, Modeling and evaluation of linear oscillating actuators, Journal of ICEMS, vol. 1, no. 4, pp.121-128, (2012).
