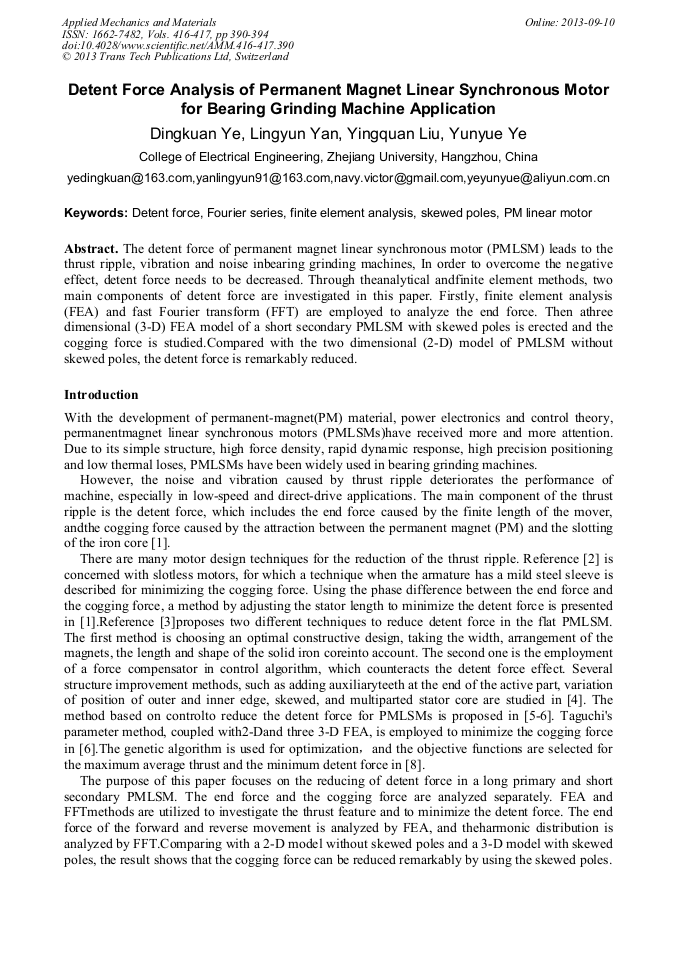

Detent Force Analysis of Permanent Magnet Linear Synchronous Motor for Bearing Grinding Machine Application

Abstract:

The detent force of permanent magnet linear synchronous motor (PMLSM) leads to the thrust ripple, vibration and noise inbearing grinding machines, In order to overcome the negative effect, detent force needs to be decreased. Through theanalytical andfinite element methods, two main components of detent force are investigated in this paper. Firstly, finite element analysis (FEA) and fast Fourier transform (FFT) are employed to analyze the end force. Then athree dimensional (3-D) FEA model of a short secondary PMLSM with skewed poles is erected and the cogging force is studied.Compared with the two dimensional (2-D) model of PMLSM without skewed poles, the detent force is remarkably reduced.

• Periodical: Applied Mechanics and Materials (Volumes 416-417)
• Pages: 390-394
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.416-417.390
• Online since: September 2013
• Authors: Ding Kuan Ye, Ling Yun Yan, Ying Quan Liu, Yun Yue Ye
• Keywords: Detent Force, Finite Element Analysis (FEA), Fourier Series, PM Linear Motor, Skewed Poles

References

[1] Inoue, M., Sato, K., An approach to a suitable stator length for minimizing the detent force of permanent magnet linear synchronous motors, IEEE Trans. Magn., vol. 36, no. 4, pp.1890-1893, Jul. (2000).

DOI: 10.1109/20.877814

[2] Z. Q. Zhu, Z. P. Xia, D, Howe, and P. H. Mellor, Reduction of cogging force in slotless linear permanent magnet motors, IEE Proc. Electric Power Applications, vol. 144, no. 4, pp.277-282, Jul. (1997).

DOI: 10.1049/ip-epa:19971057

[3] Martinez, G.; Atencia, J.; Martinez-Iturralde, M.; Garcia Rico, A.; Florez, J., Reduction of detent force in flat permanent magnet linear synchronous machines by means of three different methods, "Electric Machines and Drives Conference, 2003. IEMDC, 03. IEEE International, vol. 2, no., pp.1105-1110 vol. 2, June. (2003).

DOI: 10.1109/iemdc.2003.1210373

[4] Jastrzembski, J. -P., Ponick, B., Different methods for reducing detent force in a permanent magnet linear synchronous motor, IECON 2010 - 36th Annual Conference on IEEE Industrial Electronics Society, vol., no., pp.823-828, Nov. (2010).

DOI: 10.1109/iecon.2010.5675178

[5] Yu-wu Zhu; Sang-Min Jin; Koon-Seok Chung; Yun-Hyun Cho, Control-Based Reduction of Detent Force for Permanent Magnet Linear Synchronous Motor, IEEE Trans. Magn., vol. 45, no. 6, pp.2827-2830, June. (2009).

DOI: 10.1109/tmag.2009.2018681

[6] Yu-wu Zhu; Dae-Hyun Koo; Yun-Hyun Cho, Detent Force Minimization of Permanent Magnet Linear Synchronous Motor by Means of Two Different Methods, IEEE Trans. Magn., vol. 44, no. 11, pp.4345-4348, Nov. (2008).

DOI: 10.1109/tmag.2008.2001320

[7] Chang-Chou Hwang; Ping-Lun Li; Cheng-Tsung Liu, Optimal Design of a Permanent Magnet Linear Synchronous Motor With Low Cogging Force, IEEE Trans. Magn., vol. 48, no. 2, pp.1039-1042, Feb. (2012).

DOI: 10.1109/tmag.2011.2172578

[8] Dong-Yeup Lee; Gyu-Tak Kim, Design of thrust ripple minimization by equivalent magnetizing current considering slot effect, IEEE Trans. Magn., vol. 42, no. 4, pp.1367-1370, April. (2006).

DOI: 10.1109/tmag.2006.871927
