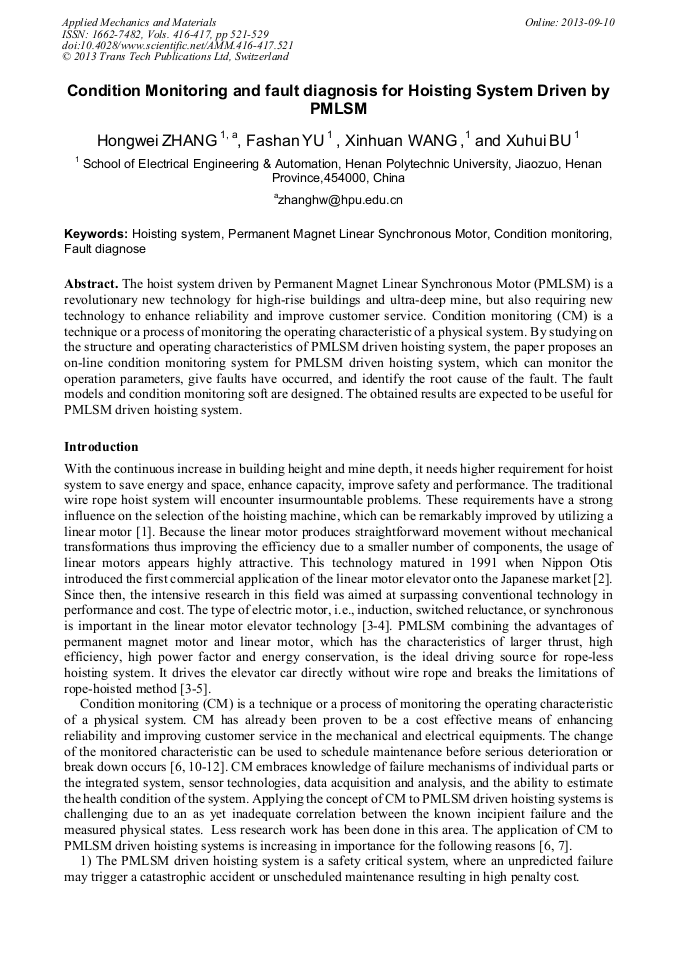

Condition Monitoring and Fault Diagnosis for Hoisting System Driven by PMLSM

Abstract:

The hoist system driven by Permanent Magnet Linear Synchronous Motor (PMLSM) is a revolutionary new technology for high-rise buildings and ultra-deep mine, but also requiring new technology to enhance reliability and improve customer service. Condition monitoring (CM) is a technique or a process of monitoring the operating characteristic of a physical system. By studying on the structure and operating characteristics of PMLSM driven hoisting system, the paper proposes an on-line condition monitoring system for PMLSM driven hoisting system, which can monitor the operation parameters, give faults have occurred, and identify the root cause of the fault. The fault models and condition monitoring soft are designed. The obtained results are expected to be useful for PMLSM driven hoisting system.

• Periodical: Applied Mechanics and Materials (Volumes 416-417)
• Pages: 521-529
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.416-417.521
• Online since: September 2013
• Authors: Hong Wei Zhang, Fa Shan Yu, Xin Huan Wang, Xu Hui Bu
• Keywords: Condition Monitoring, Fault Diagnose, Hoisting System, Permanent Magnet Linear Synchronous Motor

References

[1] The LIM Elevator Drive, Elevator World, 1991, No 3, pp.34-41.

[2] Hakala, H., Application of Linear Motors in Elevator Hoisting Machines, PH.D., Publication No. 157, Tampere University of Technology , Finland, (1995).

[3] Jacek F. Gieras, Zbigniew J. Piech, Bronislaw Tomczuk. Linear Synchronous Motors: Transportation and Automation Systems, Second Edition CRC Press, (2012).

DOI: 10.1201/b11105

[4] Onat. Ahmet, Kazan. Ender, Takahashi. Norio, Miyagi. Daisuke, Komatsu. Yasuhiro etc. Design and implementation of a linear motor for multicar elevators., IEEE/ASME Transactions on Mechatronics, vol. 15: 5, pp: 685-693, 2010, doi: 10. 1109/TMECH. 2009. 2031815.

DOI: 10.1109/tmech.2009.2031815

[5] Cassat, A., Perriard, Y., Kawkabani, B., Simond, J. -J., Power supply of long stator linear motors application to multi mobile system, 2008 IEEE Industry Applications Society Annual Meeting, Canada, 2008, doi: 10. 1109/08IAS. 2008. 43.

DOI: 10.1109/08ias.2008.43

[6] Y. Han and Y. H. Song, Condition monitoring techniques for electrical equipment-a literature survey, IEEE Trans. Power Del., vol. 18, no. 1, p.4–13, Jan. (2003).

DOI: 10.1109/tpwrd.2002.801425

[7] Wang, Fuzhong, Yuan, Shiying, Intelligent fault diagnosis research for permanent magnet linear synchronous motor., Proceedings of the World Congress on Intelligent Control and Automation (WCICA), pp: 1951-1955, (2008).

DOI: 10.1109/wcica.2008.4593223

[8] ZHANG Hongwei, WANG Xinhuan, YU Fashan. Research on the operation control for rope-less hoist system driven by Permanent Magnet Linear Synchronous Motor , Proceedings of the 31st Chinese Control Conference, CCC 2012, pp: 5619-5624, July 25- 27, (2012).

DOI: 10.4304/jcp.7.6.1361-1368

[9] Hongwei Zhang, Fashan Yu, and Xinhuan Wang. Condition Monitoring of Rope-less Elevator Braking System Based on Wavelet Denoising, Vol. 8, No. 3, 2013, pp.741-748.

DOI: 10.4304/jcp.8.3.741-748

[10] S. Nandi, H. A. Toliyat, Condition monitoring and fault diagnosis of electrical machines - a review, IEEE IAS Thirty-Fourth Meeting Industry Applications Annual Conference, vol. 1, p.197 – 204, 3-7, Oct. (1999).

DOI: 10.1109/ias.1999.799956

[11] P. Vas, Parameter Estimation, Condition Monitoring, and Diagnosis of Electrical Machines, Clarendron Press, Oxford, (1993).

[12] J. A. Rosero, J. Cusido, A. Garcia, J.A. Ortega, L. Romeral. Study on the Permanent Magnet Demagnetization Fault in Permanent Magnet Synchronous Machines, Conference on IEEE Industrial Electronics, IECON 2006, p.879 – 884, 6-10 Nov. (2006).

DOI: 10.1109/iecon.2006.347598

[13] J. A. Haylock, B. C. Mecrow, A. G. Jack, D. J. Atkinson, Operation of fault tolerant machines with winding failures, IEEE Transactions on Energy Conversion, vol. 14, Issue 4, p.1490 – 1495, Dec. (1999).

DOI: 10.1109/60.815095

[14] Yao Da, Xiaodong Shi; Krishnamurthy, M. Health monitoring, fault diagnosis and failure prognosis techniques for Brushless Permanent Magnet Machines, Vehicle Power and Propulsion Conference (VPPC), 2011 IEEE, pp.1-7, 6-9 Sept. (2011).

DOI: 10.1109/vppc.2011.6043248
